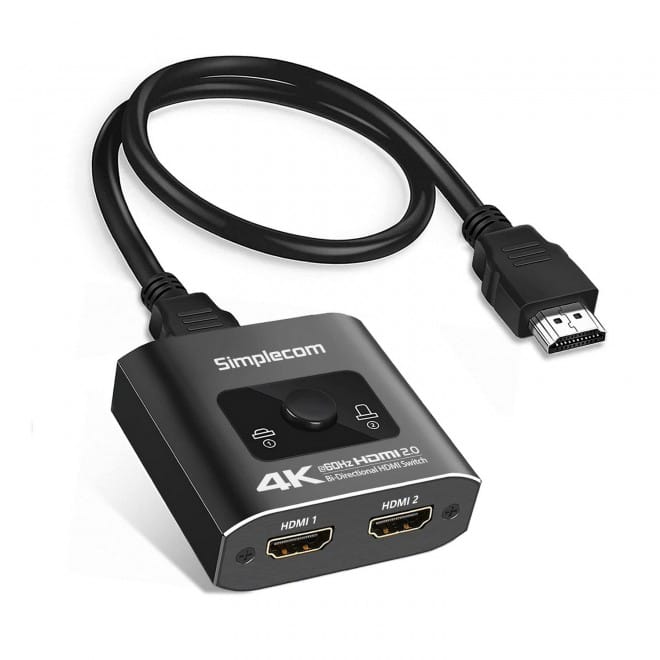

Simplecom CM302 Bi Directional 2 Way HDMI 2.0 Switch Selector 4K@60Hz HDCP 2.2
Simplecom CM302 Bi Directional 2 Way HDMI 2.0 Switch Selector 4K@60Hz HDCP 2.2
CM302 is bi directional 2 way HDMI 2.0 switch than can be used to switch two different HDMI sources or HDMI displays. Toggle button allows you to quickly select a video source or displays, without having to swap cables.
You can connect two HDMI sources, such as Game Consoles, PC, TV Box to one HDMI port on your TV or monitor, and allow two HDMI source devices to share one HDMI port on display. It also functions in the opposite direction, connecting an HDMI source to switch between two displays. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.
This HDMI switch is HDMI 2.0 compliant, and provides high bandwidth up to 18Gbps. Support video output up to 4K@60hz. Portable and compact size, easy to install. The durable aluminium alloy housing can efficiently dissipate heat to ensure durability and safe usage.
Features
Bi Directional HDMI 2.0 switch for toggling between 2 HDMI sources or displays
Quickly switch video sources or displays without having to swap cables
Durable aluminium alloy casing, also efficiently dissipate heat
Portable and compact size, easy to install
HDMI 2.0 compliant, support bandwidth up to 18Gbps
Support HDMI video resolution up to 4K@60hz
HDCP 2.2 compliant, wide compatibility with most HDMI source devices
Powered by HDMI source device, no external power required
Specifications
Model: CM302
HDMI Version: HDMI 2.0
Video Resolution Support: up to 4K@60hz
Audio Format Support: DTS HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1
HDR Format Support: HDR10
HDCP Version Support: HDCP 2.2
Max Bandwidth: 18Gbps
Max cable distance:
4K@60Hz: Input<1.5M, Output<1.5M
4K@30Hz: Input<3M, Output<3M
1080p@60Hz: Input<5M, Output<5M
Max Operation Current: 15mA
Power Input: USB DC 5V (Backup power only)
Operating Temperature: ( 15 to 55 DegC)
Dimension (L x W x H): 53x52x21mm
Weight: 45g
Package Contents
1 x Bi Dire
CM302 is bi directional 2 way HDMI 2.0 switch than can be used to switch two different HDMI sources or HDMI displays. Toggle button allows you to quickly select a video source or displays, without having to swap cables.
You can connect two HDMI sources, such as Game Consoles, PC, TV Box to one HDMI port on your TV or monitor, and allow two HDMI source devices to share one HDMI port on display. It also functions in the opposite direction, connecting an HDMI source to switch between two displays. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.
This HDMI switch is HDMI 2.0 compliant, and provides high bandwidth up to 18Gbps. Support video output up to 4K@60hz. Portable and compact size, easy to install. The durable aluminium alloy housing can efficiently dissipate heat to ensure durability and safe usage.
Features
Bi Directional HDMI 2.0 switch for toggling between 2 HDMI sources or displays
Quickly switch video sources or displays without having to swap cables
Durable aluminium alloy casing, also efficiently dissipate heat
Portable and compact size, easy to install
HDMI 2.0 compliant, support bandwidth up to 18Gbps
Support HDMI video resolution up to 4K@60hz
HDCP 2.2 compliant, wide compatibility with most HDMI source devices
Powered by HDMI source device, no external power required
Specifications
Model: CM302
HDMI Version: HDMI 2.0
Video Resolution Support: up to 4K@60hz
Audio Format Support: DTS HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1
HDR Format Support: HDR10
HDCP Version Support: HDCP 2.2
Max Bandwidth: 18Gbps
Max cable distance:
4K@60Hz: Input<1.5M, Output<1.5M
4K@30Hz: Input<3M, Output<3M
1080p@60Hz: Input<5M, Output<5M
Max Operation Current: 15mA
Power Input: USB DC 5V (Backup power only)
Operating Temperature: ( 15 to 55 DegC)
Dimension (L x W x H): 53x52x21mm
Weight: 45g
Package Contents
1 x Bi Dire
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| Video out | HDMI |
| HDMI version | 2.0 |
| Video ports quantity The number of ports (sockets) for video input or output. | 2 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3656 x 2664 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| HDCP version | 2.2 |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
 |
| High Dynamic Range (HDR) supported |
|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 18 Gbit/s |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators |
|
| Dolby technologies | DTS-HD, Dolby TrueHD |
| Number of displays supported The number of displays that can be used with this product. | 4 |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 52 mm |
| Depth The distance from the front to the back of something. | 53 mm |
| Height The measurement of the product from head to foot or from base to top. | 21 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 45 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| IR receiver included |
|
| Cables included | HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -15 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| SKU | 725207 |
| MPN | CM302 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
