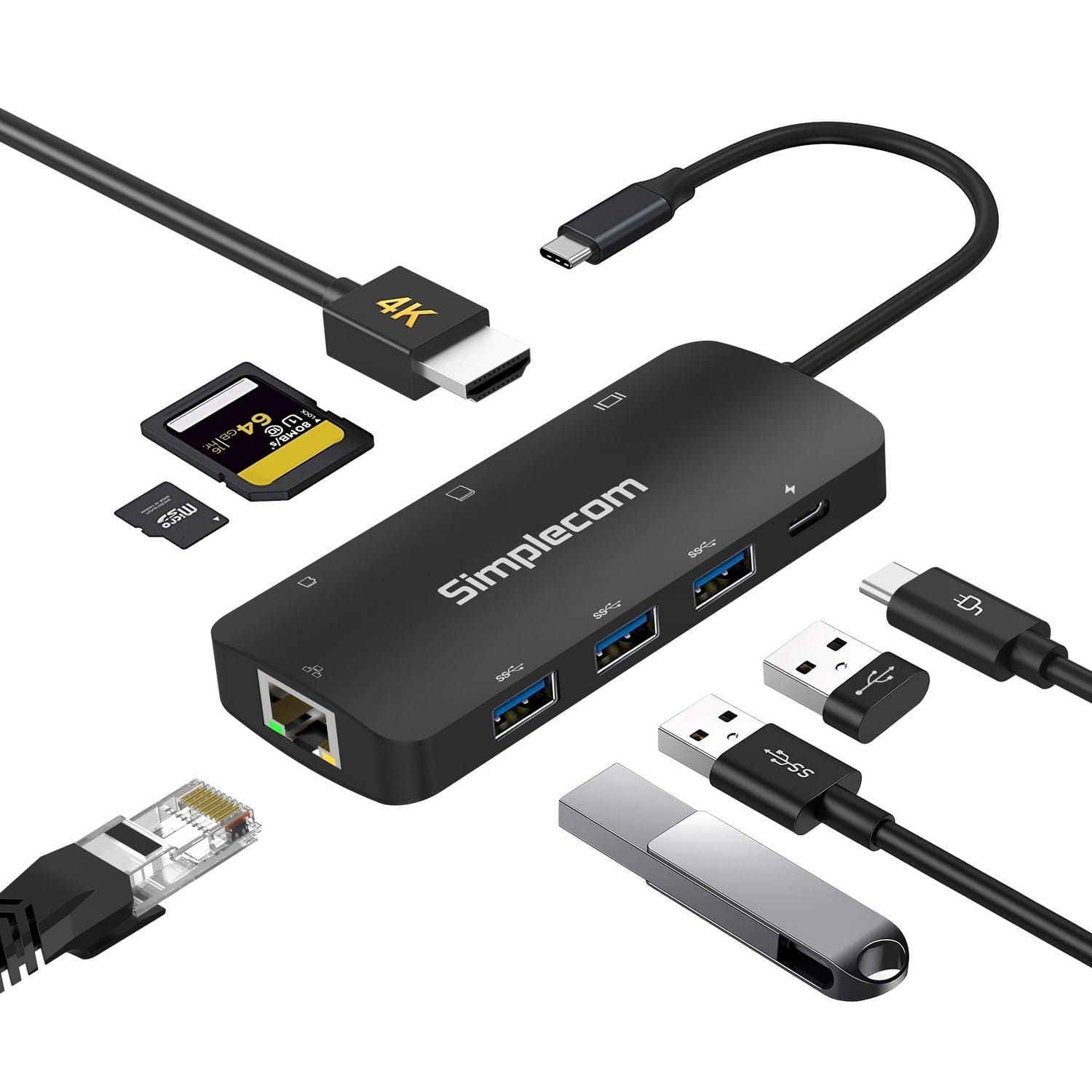

Simplecom CHT580 USB C SuperSpeed 8 in 1 Multiport Hub Adapter HDMI 2.0 Docking Station
Simplecom CHT580 USB C SuperSpeed 8 in 1 Multiport Hub Adapter HDMI 2.0 Docking Station
Features
8 in 1 USB C multiport docking station for connectivity expansion to your laptop
Single USB C to extra USB ports, HDMI, Gigabit Ethernet, Card Reader and PD
SuperSpeed USB ports support data transfer rate up to 5Gbps
HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
Gigabit Ethernet support connection speeds of up to 1000Mbps
USB C PD port for charging the laptop with up to 100W of power
2 Slot Card reader for SD and microSD memory cards
Durable & stylish aluminium alloy housing
Lightweight and portable, easy to carry along when travelling
Built in flexible USB C Cable
Plug & play, no driver software required
Specifications
Host Interface: USB C
USB Hub: 3x USB A Female (SuperSpeed 5Gbps)
HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K@60Hz)
Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Card Reader: SD and MicroSD (Hi Speed 480Mbps)
PD Charging: 1x USB C Female (for charging only), up to 100W
Operation Temperature: 0 45 DegC
Housing Material: Aluminium
Dimensions: 11 x 4.3 x 1.6 cm
Cable Length: 15 cm
Weight: 67g
System Requirements
USB C port with DP Alt Mode (DisplayPort Alternate Mode) support
Thunderbolt USB C port or USB4 port
Operating system: Windows 10 or above, macOS 10.12 or above, Android, ChromeOS
Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz
Important Note
Before purchasing, please confirm the USB C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB C ports only work for charging or data transfer, no video output function
4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
The USB C PD port is for PD Charging only, not for data transfer
Only one SD or MicroSD card can be accessed at a time
For more stable connection when using multiple devices, connect
Features
8 in 1 USB C multiport docking station for connectivity expansion to your laptop
Single USB C to extra USB ports, HDMI, Gigabit Ethernet, Card Reader and PD
SuperSpeed USB ports support data transfer rate up to 5Gbps
HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
Gigabit Ethernet support connection speeds of up to 1000Mbps
USB C PD port for charging the laptop with up to 100W of power
2 Slot Card reader for SD and microSD memory cards
Durable & stylish aluminium alloy housing
Lightweight and portable, easy to carry along when travelling
Built in flexible USB C Cable
Plug & play, no driver software required
Specifications
Host Interface: USB C
USB Hub: 3x USB A Female (SuperSpeed 5Gbps)
HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K@60Hz)
Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Card Reader: SD and MicroSD (Hi Speed 480Mbps)
PD Charging: 1x USB C Female (for charging only), up to 100W
Operation Temperature: 0 45 DegC
Housing Material: Aluminium
Dimensions: 11 x 4.3 x 1.6 cm
Cable Length: 15 cm
Weight: 67g
System Requirements
USB C port with DP Alt Mode (DisplayPort Alternate Mode) support
Thunderbolt USB C port or USB4 port
Operating system: Windows 10 or above, macOS 10.12 or above, Android, ChromeOS
Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz
Important Note
Before purchasing, please confirm the USB C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB C ports only work for charging or data transfer, no video output function
4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
The USB C PD port is for PD Charging only, not for data transfer
Only one SD or MicroSD card can be accessed at a time
For more stable connection when using multiple devices, connect
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Charging function |
|
| Housing material What the casing of the product is made of. | Aluminium |
| Brand compatibility What other brands this brand can be used with. | Any brand |
| Power | |
| USB cable length | 0.15 m |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 110 mm |
| Depth The distance from the front to the back of something. | 43 mm |
| Height The measurement of the product from head to foot or from base to top. | 16 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 67 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 732575 |
| MPN | CHT580 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, USB Adapter, HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
