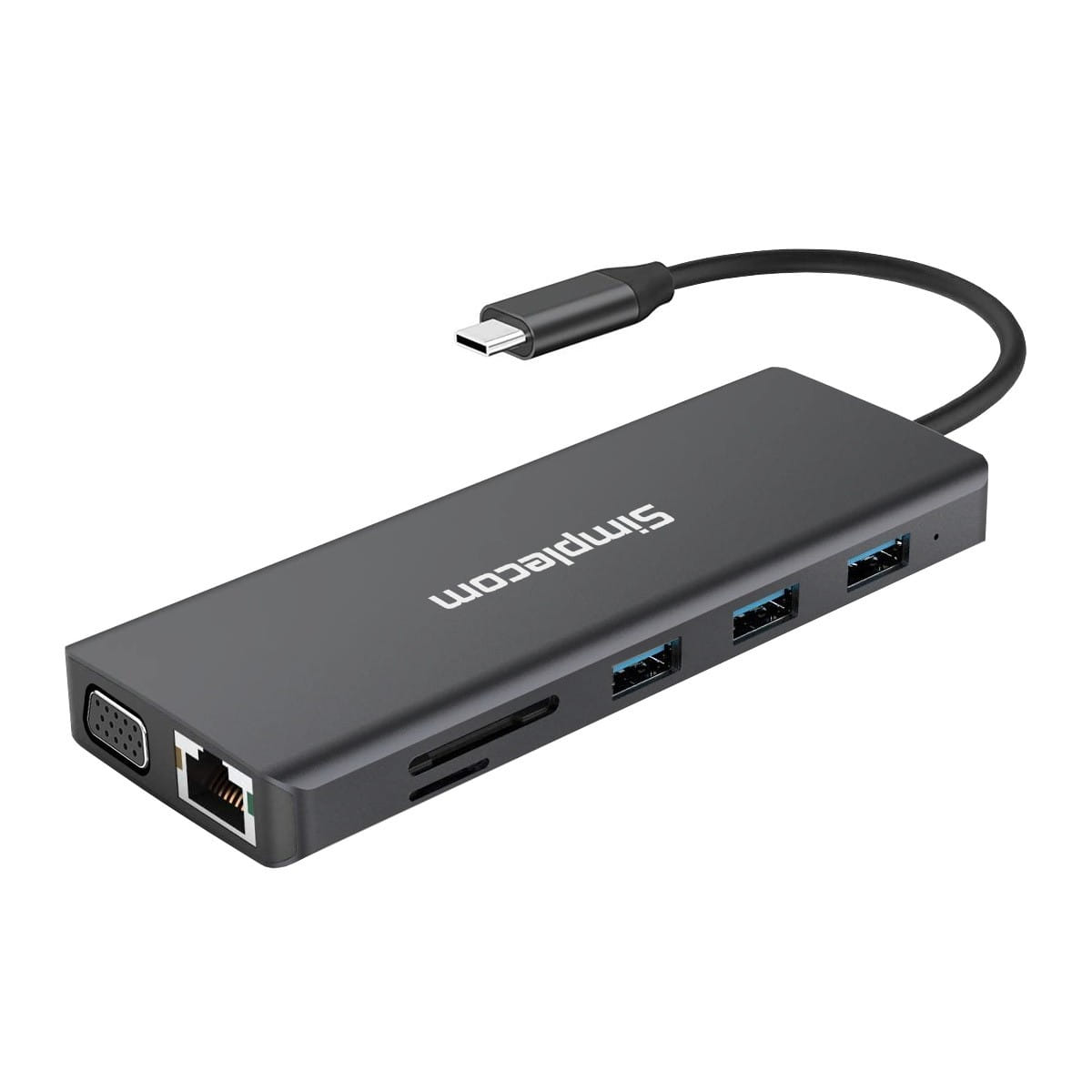

Simplecom CHN612 USB-C 12-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display Gigabit LAN
CHN612 is a 12-in-1 USB-C multiport adapter with dual HDMI + VGA triple video outputs. It turns a single USB-C port into 12 ports, including 4 USB-A ports, 2 card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5' audio jack and 100W PD charging.
If you need to connect with various devices to your laptop at same time, CHN612 is a comprehensive connectivity solu
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C, VGA |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Combo headphone/mic port |
 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 12 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| Features | |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 2160p |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Aluminium |
| USB Power Delivery |
|
| USB Power Delivery up to | 100 W |
| Extended mode |
|
| Extended mode details | maximum 2 extended mode displays |
| Mirror mode |
|
| Mirror mode details | maximum 2 extended mode displays |
| Multi-Stream Transport (MST) |
|
| Number of displays supported The number of displays that can be used with this product. | 3 |
| LED indicators | Power |
| Cable length How long the cable is. | 0.15 m |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 55 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 16 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 100 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| SKU | 604695 |
| MPN | CHN612 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
