Simplecom CH545, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type C, 100 W, Black, Aluminium, 0 50 DegC

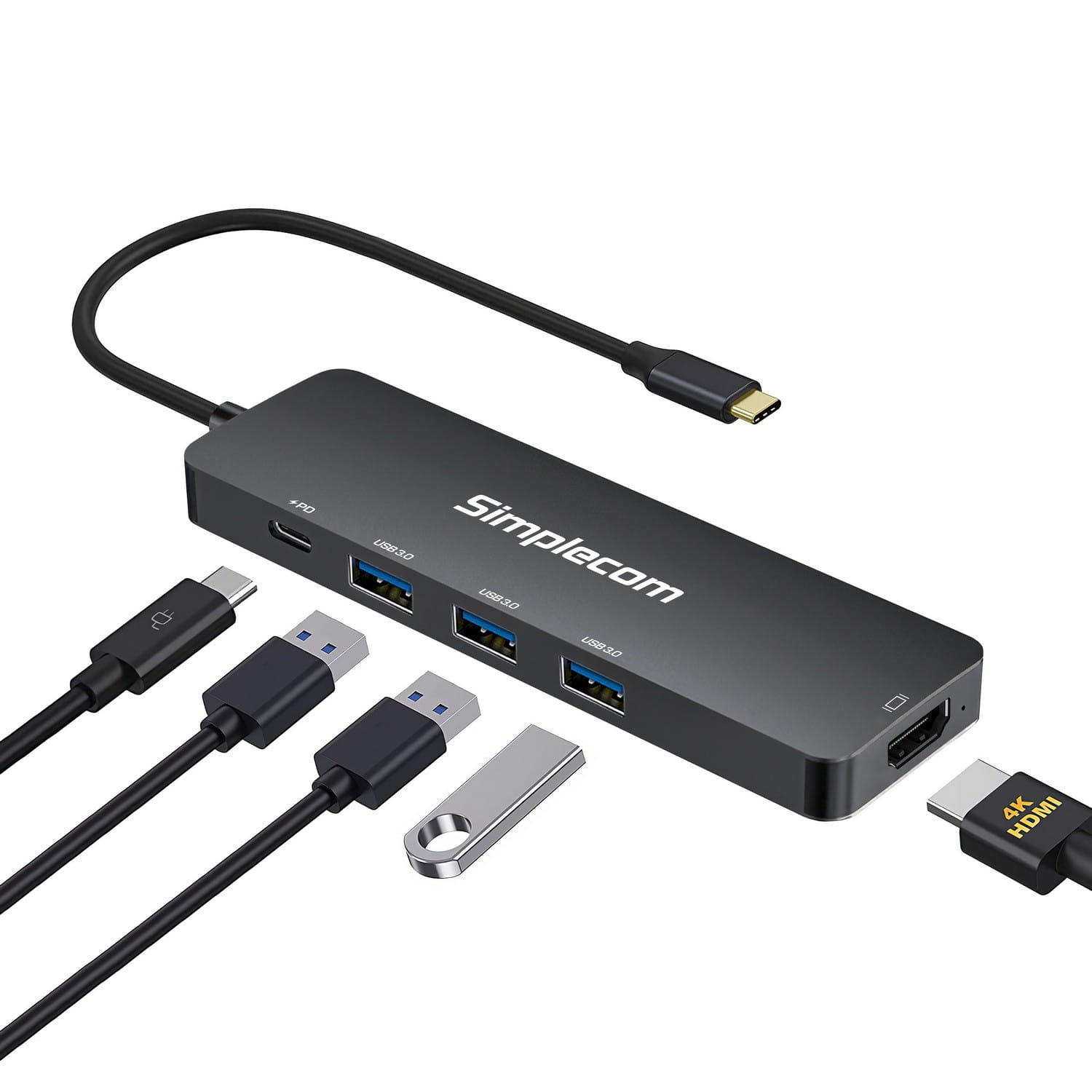

Simplecom CH545 USB C 5 in 1 Multiport Adapter Docking Station
This USB C multiport docking station is designed to extend the connectivity for modern laptops with multifunctional USB C interface. It turns a single USB C port into 5 ports, including three SuperSpeed USB 3.0 ports, HDMI display output, and one USB C PD charging port. The HDMI port supports transmitting video with resolution up to 4K@30Hz, and the 3 Port USB 3.0 hub provides up to 5Gbps data transfer rate. The USB C PD port can charge your connected laptop while other ports are working, supporting up to 100W charging via Power Delivery.
Ultra Compact design with aluminium casing, to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work. It's an ideal connectivity solution that helps you to increase productivity and convenience.
This USB C multiport docking station is designed to extend the connectivity for modern laptops with multifunctional USB C interface. It turns a single USB C port into 5 ports, including three SuperSpeed USB 3.0 ports, HDMI display output, and one USB C PD charging port. The HDMI port supports transmitting video with resolution up to 4K@30Hz, and the 3 Port USB 3.0 hub provides up to 5Gbps data transfer rate. The USB C PD port can charge your connected laptop while other ports are working, supporting up to 100W charging via Power Delivery.
Ultra Compact design with aluminium casing, to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work. It's an ideal connectivity solution that helps you to increase productivity and convenience.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Housing material What the casing of the product is made of. | Aluminium |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 37 mm |
| Height The measurement of the product from head to foot or from base to top. | 11 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 62 g |
| SKU | 743762 |
| MPN | CH545 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
