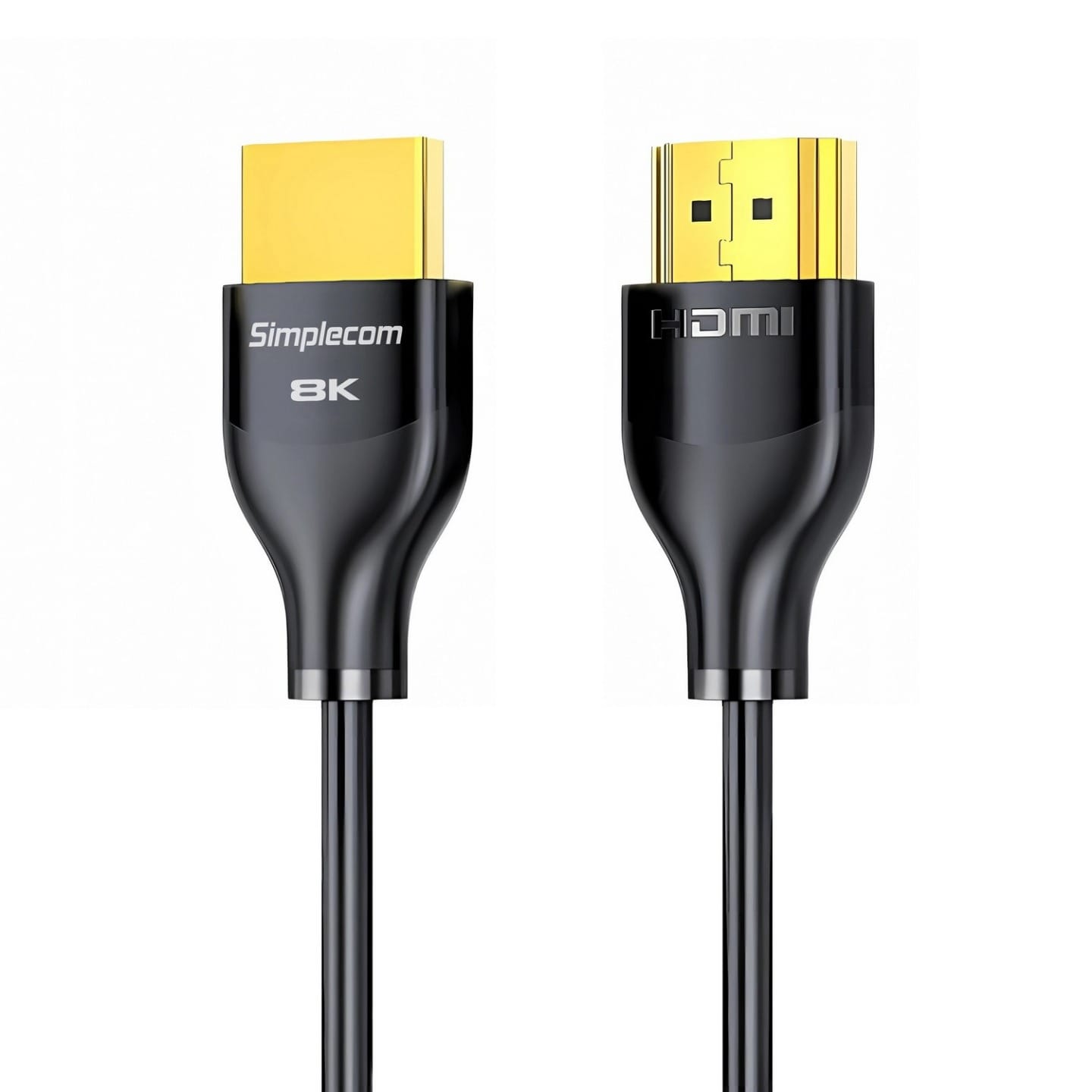

Simplecom CAH530 Ultra High Speed HDMI 2.1 Cable 48Gbps 8K@60Hz Slim Flexible 3M
Simplecom CAH530 Ultra High Speed HDMI 2.1 Cable 48Gbps 8K@60Hz Slim Flexible 3M
Features
Ultra High Speed HDMI cable supports video resolution up to 8K@60hz
Fully compatible with HDMI 2.1 and capable of 48Gbps bandwidth
Backwards compatible with all previous HDMI version devices
Slim and flexible design for easy cable management
Supports extended CEC functions, HDMI Ethernet Channel and eARC
Supports Dynamic HDR for brighter, deeper, and more lifelike colours
Supports high bitrate audio formats such as Dolby TrueHD, Dolby Atmos, DTS:X, and more
Gold plated connector to resist corrosion and enhance signal transfer
Graphene shielding with low interference and stable signal quality
Specifications
HDMI Version: HDMI 2.1 (Backwards compatible)
Bandwidth: 48Gbps
Max Resolution Support: 4K@120Hz (2160 x 3840), 8K@60Hz (4320 x 7680)
Cable Diameter: 5mm
Conductor Gauge: 32AWG
Conductor Material: Copper
Connector Plating: Gold Plated
Shielding: Graphene Aluminum foil
Operating Temperature: 20 DegC to 60 DegC
Cable Jacket: PVC
Cable Length: 3m
Features
Ultra High Speed HDMI cable supports video resolution up to 8K@60hz
Fully compatible with HDMI 2.1 and capable of 48Gbps bandwidth
Backwards compatible with all previous HDMI version devices
Slim and flexible design for easy cable management
Supports extended CEC functions, HDMI Ethernet Channel and eARC
Supports Dynamic HDR for brighter, deeper, and more lifelike colours
Supports high bitrate audio formats such as Dolby TrueHD, Dolby Atmos, DTS:X, and more
Gold plated connector to resist corrosion and enhance signal transfer
Graphene shielding with low interference and stable signal quality
Specifications
HDMI Version: HDMI 2.1 (Backwards compatible)
Bandwidth: 48Gbps
Max Resolution Support: 4K@120Hz (2160 x 3840), 8K@60Hz (4320 x 7680)
Cable Diameter: 5mm
Conductor Gauge: 32AWG
Conductor Material: Copper
Connector Plating: Gold Plated
Shielding: Graphene Aluminum foil
Operating Temperature: 20 DegC to 60 DegC
Cable Jacket: PVC
Cable Length: 3m
| Features | |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | HDMI Type A (Standard) |
| Connector 2 This is the second connector in the device. | HDMI Type A (Standard) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDMI version | 2.1 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 7680 x 4320 |
| Dolby technologies | DTS:X, Dolby Atmos, Dolby TrueHD |
| HDMI Ethernet channel |
 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 48 Gbit/s |
| High Dynamic Range (HDR) supported |
|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Maximum refresh rate | 120 Hz |
| AWG wire size | 32 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable material The material e.g. copper, steel from which the cable is made. | Copper |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Magnetically shielded |
|
| Shield material | Aluminium |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 5 mm |
| Connector 1 dimensions (WxDxH) | 18 x 9 x 30 mm |
| Connector 2 dimensions (WxDxH) | 18 x 9 x 30 mm |
| SKU | 732566 |
| MPN | CAH530 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
