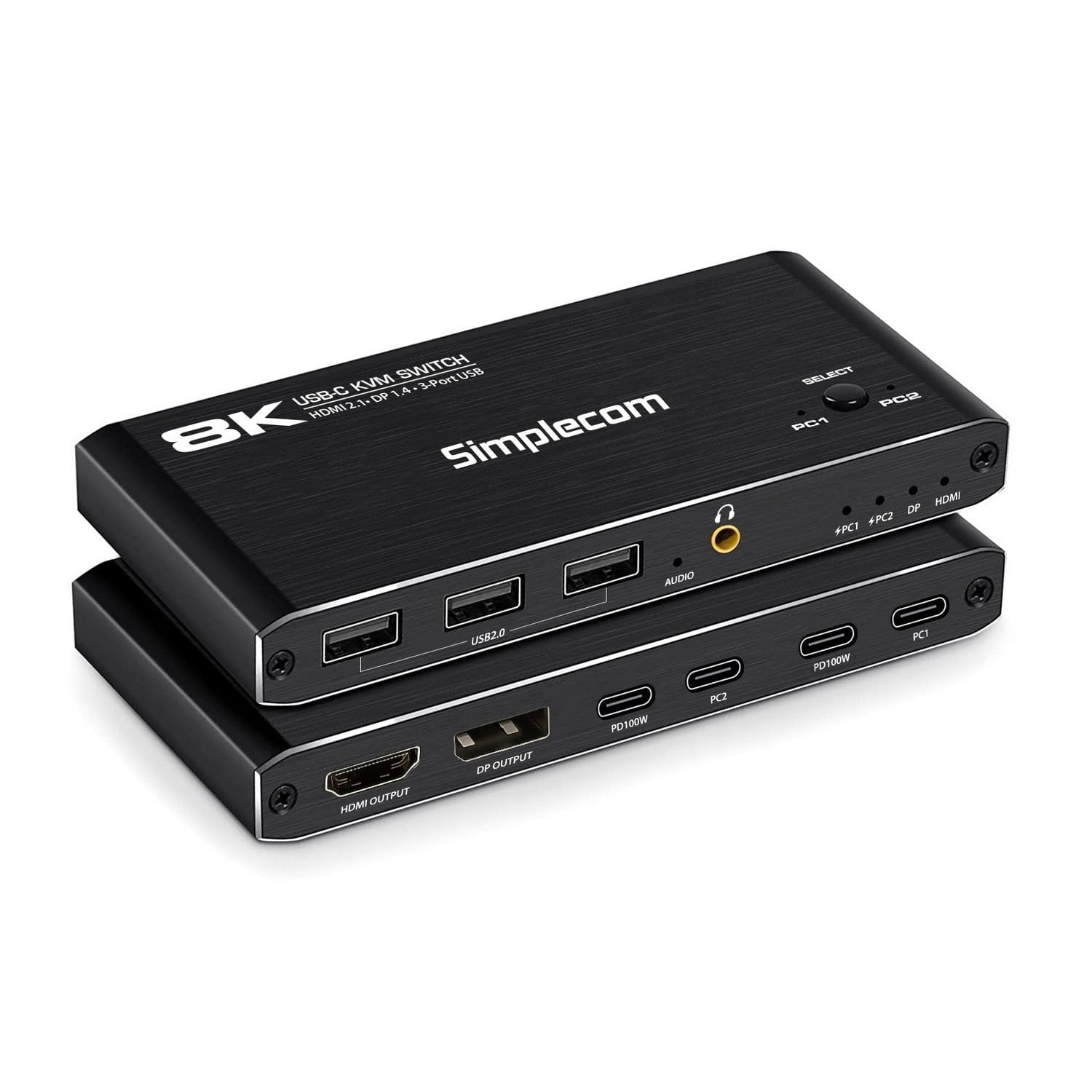

Simplecom KM470 2 Port USB C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet
Simplecom KM470 2 Port USB C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet
Features
USB C KVM switch allows two laptops to share external display and USB devices
Intergraded USB C docking station, single USB C cable for Video, Data and PD charging
With both DisplayPort and HDMI output ports for TV or monitors
3 Port USB 2.0 hub for connecting mouse, keyboard, printer and more
3.5mm audio jack for connecting headphones or speakers
Two PD charging ports allow charging for both laptops simultaneously
HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K
Backward compatible with HDMI 2.0 and HDMI 1.4
Easy to use by pressing the toggle button on the KVM switch
Self powered via connected laptop, no external power required
Plug and play and hot swappable
Durable aluminium alloy casing, also efficiently dissipate heat
LED light indicating the active computer and PD charging
Specifications
Model: KM470
USB Upstream Ports: USB C x2 (Connect to PC1 and PC2)
USB Downstream Ports: USB 2.0 x3 (Connect USB peripherals)
PD Charing Port: USB C x2 (up to 100W on each port)
Video Output: HDMI 2.1 x1, DP 1.4 x1
USB Max Bandwidth: HighSpeed 480Mbps
HDMI Max Bandwidth: 48Gbps
DP Max Bandwidth: 32.4Gbps
Video Resolution: 1080p@60/120/165Hz, 4K@60/120/144Hz (DSC), 8K@30/60Hz(DSC)
Audio Output: 3.5mm audio jack (sound output only)
Operating Temperature: 0 to 50 DegC
Dimension (L x W x H): 13 x 6.3 x 1.6mm
Weight: 109g
Operating System Support: Windows, MacOS, Chrome OS
Package Contents
1x USB C KVM Switch
2x USB C to USB C Cables
System Requirements
Laptop or mobile device with full functional USB C port that supports DP Alt Mode (DisplayPort Alternate Mode)
Laptop with Thunderbolt 3, Thunderbolt 4, USB4 port
Important Note
Before purchasing, please confirm the USB-C port on your laptop or tablet supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
USB-C port on desktop PC is not supported
Self-powered via connected laptop, no external power required
DP and HDMI port can't be used simultaneously
Two USB-C PD ports are always enabled, for charging both laptops simultaneously
For 8K resolution support, Thunderbolt 4 port are required on laptop, with maximum length of 2M DP 1.4 or HDMI 2.1 cable
Features
USB C KVM switch allows two laptops to share external display and USB devices
Intergraded USB C docking station, single USB C cable for Video, Data and PD charging
With both DisplayPort and HDMI output ports for TV or monitors
3 Port USB 2.0 hub for connecting mouse, keyboard, printer and more
3.5mm audio jack for connecting headphones or speakers
Two PD charging ports allow charging for both laptops simultaneously
HDMI 2.1 and DP 1.4 compliant, support video resolution up to 8K
Backward compatible with HDMI 2.0 and HDMI 1.4
Easy to use by pressing the toggle button on the KVM switch
Self powered via connected laptop, no external power required
Plug and play and hot swappable
Durable aluminium alloy casing, also efficiently dissipate heat
LED light indicating the active computer and PD charging
Specifications
Model: KM470
USB Upstream Ports: USB C x2 (Connect to PC1 and PC2)
USB Downstream Ports: USB 2.0 x3 (Connect USB peripherals)
PD Charing Port: USB C x2 (up to 100W on each port)
Video Output: HDMI 2.1 x1, DP 1.4 x1
USB Max Bandwidth: HighSpeed 480Mbps
HDMI Max Bandwidth: 48Gbps
DP Max Bandwidth: 32.4Gbps
Video Resolution: 1080p@60/120/165Hz, 4K@60/120/144Hz (DSC), 8K@30/60Hz(DSC)
Audio Output: 3.5mm audio jack (sound output only)
Operating Temperature: 0 to 50 DegC
Dimension (L x W x H): 13 x 6.3 x 1.6mm
Weight: 109g
Operating System Support: Windows, MacOS, Chrome OS
Package Contents
1x USB C KVM Switch
2x USB C to USB C Cables
System Requirements
Laptop or mobile device with full functional USB C port that supports DP Alt Mode (DisplayPort Alternate Mode)
Laptop with Thunderbolt 3, Thunderbolt 4, USB4 port
Important Note
Before purchasing, please confirm the USB-C port on your laptop or tablet supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
USB-C port on desktop PC is not supported
Self-powered via connected laptop, no external power required
DP and HDMI port can't be used simultaneously
Two USB-C PD ports are always enabled, for charging both laptops simultaneously
For 8K resolution support, Thunderbolt 4 port are required on laptop, with maximum length of 2M DP 1.4 or HDMI 2.1 cable
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Docking |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | 3.5mm, USB 2.0 |
| LED indicators |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 6.3 mm |
| Depth The distance from the front to the back of something. | 13 mm |
| Height The measurement of the product from head to foot or from base to top. | 1.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 109 g |
| SKU | 748424 |
| MPN | KM470 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
