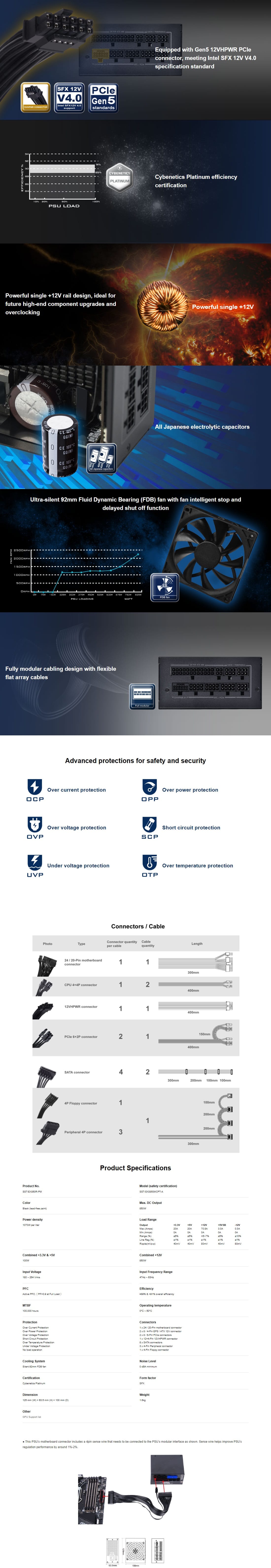

Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard; Cybenetics Platinum efficiency certification; 24/7 continuous power output with 50℃operating temperature; Ultra-silent 92mm FDB fan with fan intelligent deactivates and delayed shut off function
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 180 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20-pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 100,200,300 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 200,300 mm |
| PCI Express power connectors (6+2 pin) | 16 |
| PCI Express power connectors (12+4 pin) | 1 |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 40 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive connector |
|
| Floppy disk drive cable length | 10 cm |
| PCI Express connector |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification |
 |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | SFX |
| Silent mode |
|
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 125 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 63.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.6 kg |
| SKU | 735017 |
| MPN | SST-EX850R-PM |
| Brand | Silverstone |
| Product Condition | Brand New/Unused |
| PSU Form Factor | SFX / SFX-L |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.silverstonetek.com/ |
