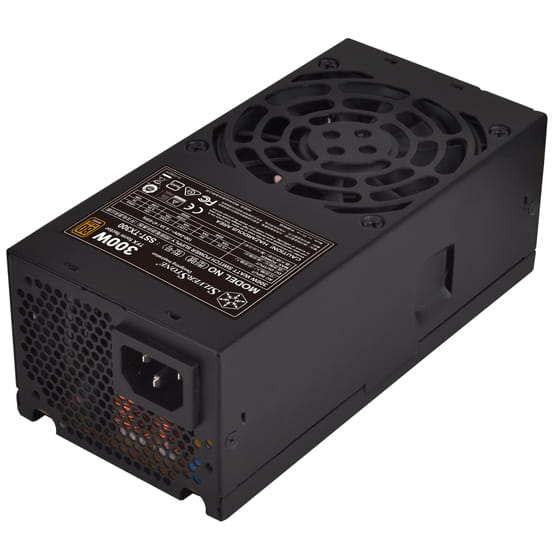

SilverStone 300W TFX Power Supply, 80 PLUS Bronze, 80mm Silent Fan
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 300 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 95 W |
| Combined power (+12V) | 276 W |
| Combined power (+5V) | 95 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V1) | 14 A |
| Max output current (+12V2) | 15 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 85% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over power,Over voltage,Short circuit |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,350 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 150,350 mm |
| EPS power connector (8-pin) |
 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power cable length | 35 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 35 cm |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | TFX |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 18 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 85 mm |
| Depth The distance from the front to the back of something. | 175 mm |
| Height The measurement of the product from head to foot or from base to top. | 65 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| SKU | 326711 |
| MPN | SST-TX300 |
| Brand | Silverstone |
| Product Condition | Brand New/Unused |
| PSU Form Factor | TFX / Flex ATX |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.silverstonetek.com/ |
