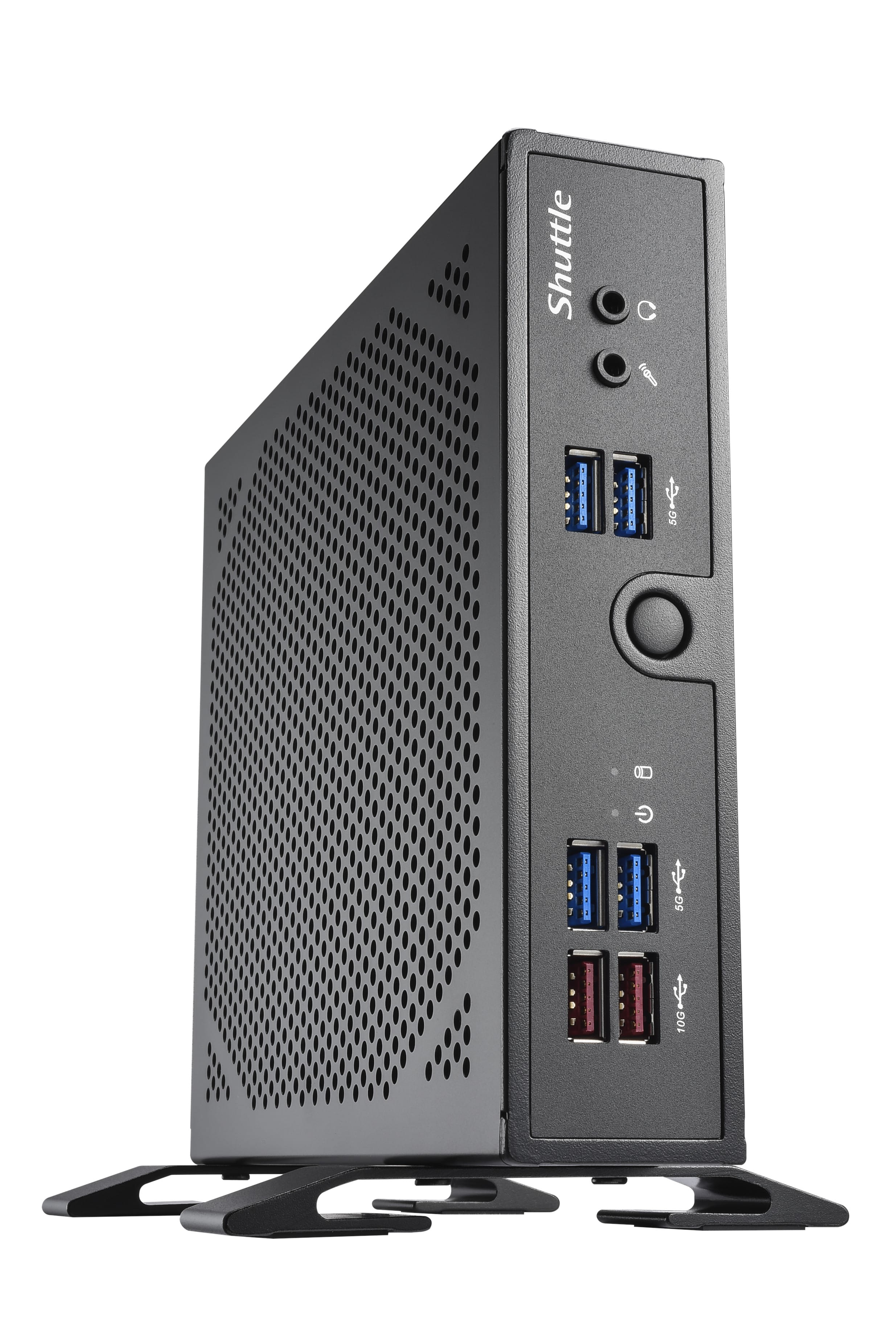

Shuttle XPC slim Barebone DS50U5, i5-1335U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation, 1.3L sized PC, Mini PC barebone, DDR5-SDRAM, PCI Express, Serial ATA III, Ethernet LAN, 90 W
Fanless Slim PC with integrated ULV processor in industrial design
The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model The model number for the processor in a computer. | i5-1335U |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 10 |
| Processor threads | 12 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.6 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Performance-core boost frequency | 4.6 GHz |
| Efficient-core boost frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 15 W |
| ECC supported by processor |
 |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 5200 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage The voltage (V) of the memory in the device. | 1.1 V |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,M.2 |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | PCI Express, Serial ATA III |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
|
| Number of storage drives supported How many storage drives can be fit into the product at once. | 3 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® UHD Graphics |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Intel® I219, Intel I226-LM |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | 1.3L sized PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators | HDD, Power |
| Housing material What the casing of the product is made of. | Steel |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 75 x 75,100 x 100 mm |
| Product type The sub-category of the product. | Mini PC barebone |
| Performance | |
| Number of processors supported The quantity of processors which can be used by the product. | 1 |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| Trusted Platform Module (TPM) |
|
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | RealTek ALC888S |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. |
|
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 90 W |
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 1.6 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 200 mm |
| Depth The distance from the front to the back of something. | 165 mm |
| Height The measurement of the product from head to foot or from base to top. | 39.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.6 kg |
| Package weight Weight of the packaged product. | 2.3 kg |
| Packaging content | |
| Power cord included |
|
| AC adapter included |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 811151 |
| MPN | DS50U5 |
| Brand | Shuttle |
| Product Condition | Brand New/Unused |
| CPU Socket | LGA 1851 |
| Memory Type | DDR5 |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.shuttle.eu/en/ |
