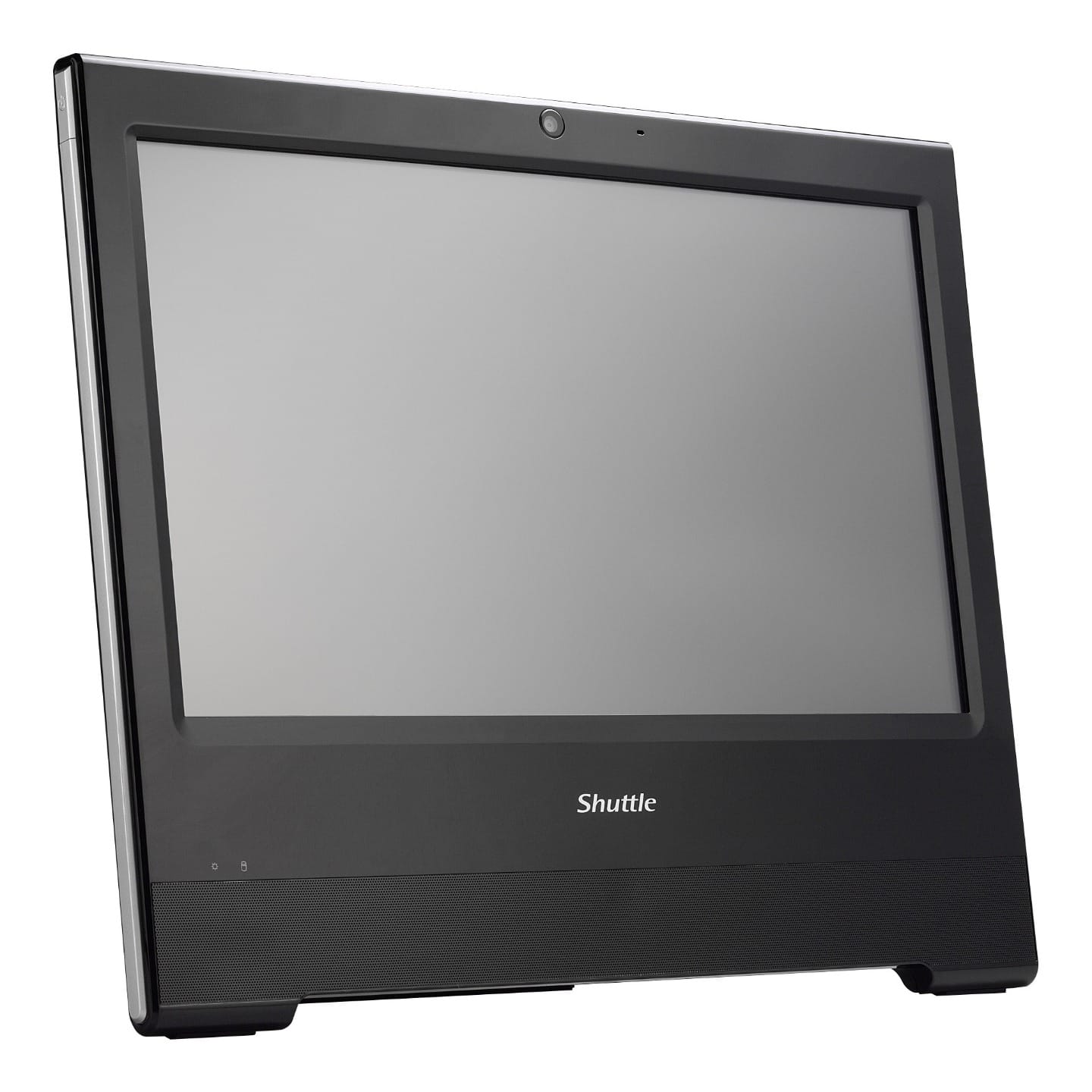

Shuttle X50V8 XPC All-in-One PC 15.6" Touch Fanless For POS, POI, Kiosk Applications

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	39.6 cm (15.6")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1366 x 768 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	HD
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	220 cd/m²
Panel type	LCD

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Celeron®
Processor model The model number for the processor in a computer.	5205U
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	2
Processor threads	2
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.9 GHz
Processor cache	2 MB
Thermal Design Power (TDP)	15 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-down	12.5 W
Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit).	14 nm

Memory
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	2400 MHz

Storage
Number of storage drives supported How many storage drives can be fit into the product at once.	1
SSD form factor The size of the solid-state drive, given in inches	2.5"
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	SD, SDHC, SDXC

Graphics
Discrete graphics card
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
On-board GPU manufacturer	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of speakers The quantity of speakers included in/with the product.	2
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	2 W

Camera
Built-in camera The product has an integrated camera.
Camera resolution Amount of data measured in pixels that the product captures to form the image	1920 x 1080 pixels
Camera HD type	Full HD

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model	Realtek RTL8821CE
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	4.2

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	1.4a
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
Headphone outputs Number of sockets /ports where headphones are connected.	1
Microphone in The socket where a microphone is connected to the device.
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
VESA mounting

Performance
Product type The sub-category of the product.	All-in-One PC barebone
Trusted Platform Module (TPM)

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Processor special features
Enhanced Intel SpeedStep Technology
Intel Clear Video Technology
Intel Flex Memory Access
Intel Trusted Execution Technology
Intel VT-x with Extended Page Tables (EPT)
Intel TSX-NI
Intel Software Guard Extensions (Intel SGX)
Intel 64
Execute Disable Bit
Idle States
CPU configuration (max)	1
Embedded options available
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Power
AC adapter output voltage	19 V

Weight & dimensions
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	3.5 kg
Package weight Weight of the packaged product.	4.2 kg

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Packaging content
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Drivers included
Power cord included

Logistics data
Harmonized System (HS) code	84713000

Other features
Graphics card family	Intel
AC adapter output current	3.42 A
Storage drive interface Where the storage device links with other parts of the product, or an external device.	Serial ATA III
Chassis type The type of rigid framework onto which is the hosuing for device components.	All-in-One
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	3840 x 2160 pixels
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	65 W
Power supply type The type of power supply which this product uses.	External AC adapter
