Shuttle SPCEL03 Industrial Computer -Intel Atom x6413E, 1x HDMI, 2x LAN,3x USB, RS232/422/485, DIO, DDR4 (Max 32GB)

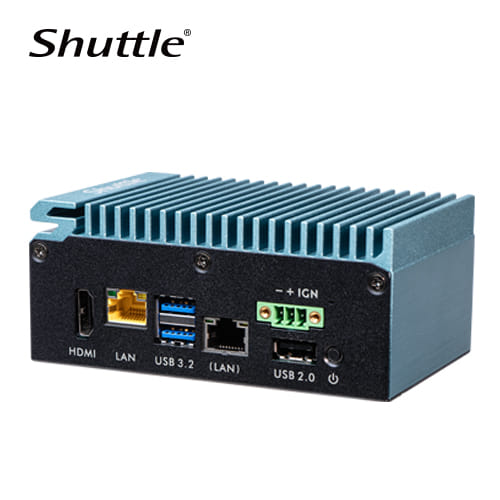

SPCEL03 Industrial Computer offers compact computing with a durable metallic design and versatile mounting options. Powered by Intel® Elkhart Lake processors, it supports UHD graphics and up to 32GB DDR4-3200 RAM. Featuring the smallest PICO-ITX motherboard, it provides diverse connections, WLAN connectivity, and expandability. Users can configure RAM, SSD capacity, and install an AI accelerator card for enhanced AI computing. Ideal for edge computing, automation, digital signage, data logging, and video surveillance.
Processor: Intel Atom x6413E, x6211E
Memory: Dual Channel DDR4-3200MHz - 32GB Max
Storage: M.2 M 2280/2242
4K/ uhd visuals via HDMI2.0b and Display port 1.4
Upto 2.5GbE Dual LAN support, featuring BIOS Wake on LAN
Real time computing and ethernet, functional, safety adm industrial centric I/Os
Improved performance for AI and computer vision
VESA Mounting options
Wide Temperature Applications -20-60 degree C
Modular Connectivity
Fanless
Processor: Intel Atom x6413E, x6211E
Memory: Dual Channel DDR4-3200MHz - 32GB Max
Storage: M.2 M 2280/2242
4K/ uhd visuals via HDMI2.0b and Display port 1.4
Upto 2.5GbE Dual LAN support, featuring BIOS Wake on LAN
Real time computing and ethernet, functional, safety adm industrial centric I/Os
Improved performance for AI and computer vision
VESA Mounting options
Wide Temperature Applications -20-60 degree C
Modular Connectivity
Fanless
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Atom® |
| Processor model The model number for the processor in a computer. | x6413E |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor threads | 4 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3 GHz |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.5 GHz |
| Built-in processor Whether or not a processor is built into the device. |
 |
| L2 cache The CPU cache (Level 2) is a smaller, faster memory which stores copies of the data from the most frequently used main memory locations. | 1.5 MB |
| Thermal Design Power (TDP) | 9 W |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory The maximum internal memory which is available in the product. | 32 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 3200 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Memory channels | Single-channel |
| Memory voltage The voltage (V) of the memory in the device. | 1.2 V |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Non-ECC |
|
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | M.2 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | Serial ATA |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® UHD Graphics |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Intel I226-V |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | 0.46L sized PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| LED indicators | Power |
| Housing material What the casing of the product is made of. | Aluminium |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Product type The sub-category of the product. | Mini PC barebone |
| Performance | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel SoC |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | BGA 1493 |
| Number of processors supported The quantity of processors which can be used by the product. | 1 |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| Trusted Platform Module (TPM) |
|
| Trusted Platform Module (TPM) version | 2.0 |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, VCCI |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. |
|
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| AC adapter output voltage | 12 - 24 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 75 mm |
| Height The measurement of the product from head to foot or from base to top. | 51 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 720 g |
| Package weight Weight of the packaged product. | 1.2 kg |
| Packaging content | |
| AC adapter included |
|
| SKU | 798800 |
| MPN | SPCEL03 |
| Brand | Shuttle |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR4 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.shuttle.eu/en/ |
