Shuttle PC63J, 500 W, 100 240 V, 50 60 Hz, 8/4 A, 12V, 12V1, 12V2, 12V3, 3.3V, 5V, 5Vsb, 12V, Active

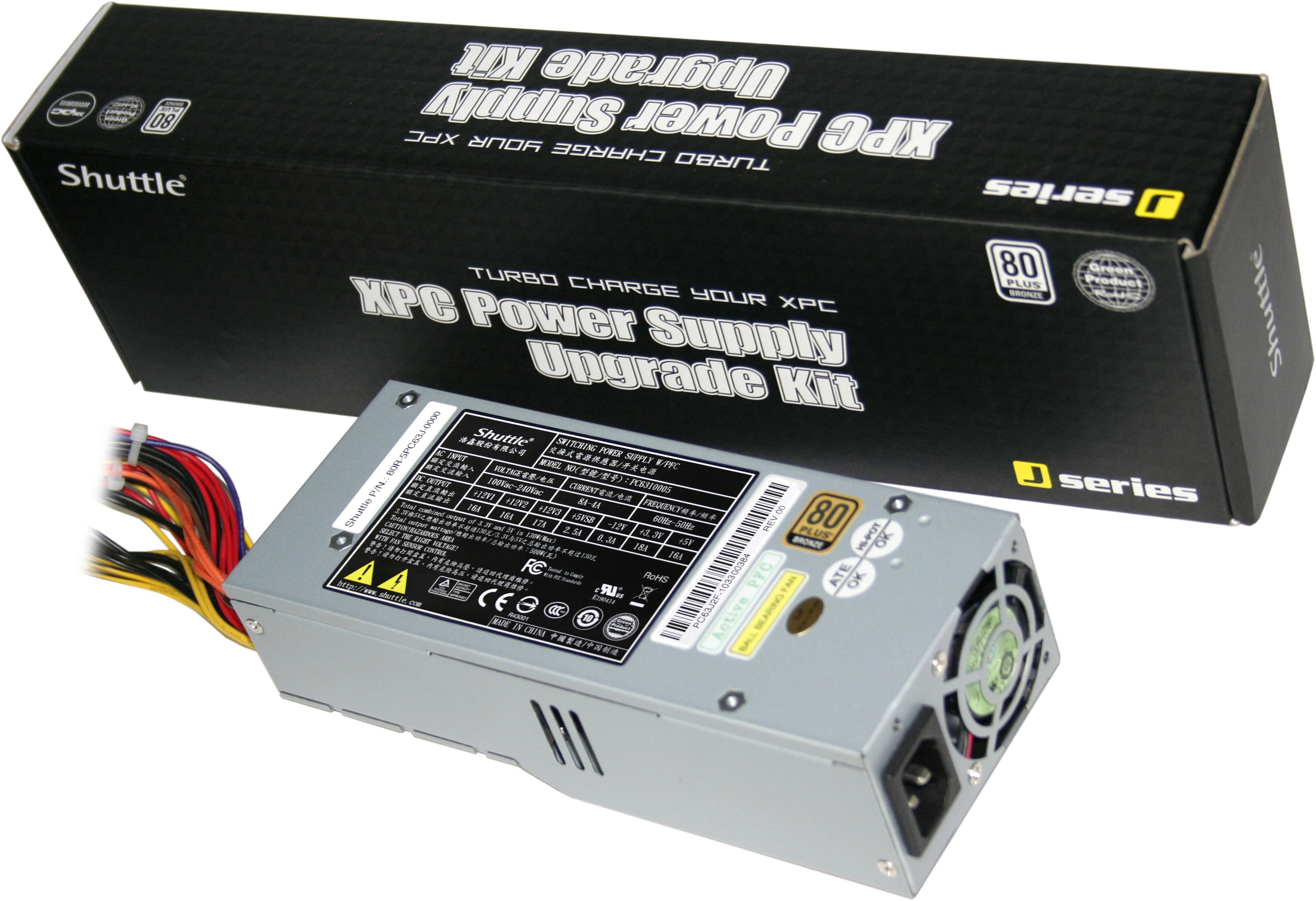

The Shuttle XPC Accessory PC63J is a new high end power supply with a maximum output wattage of 500W suitable for certain XPCs of the H, J and R series. With a low noise level of only 30dB, it is ideal for use in any noise sensitive environments such as a library and offices. Thanks to its 80 PLUS Bronze certification for power efficient devices, this power supply is also suitable for ENERGY STAR compliant systems. Benefit from less power consumption and less energy costs using PC63J.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 500 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8/4 A |
| Maximum input current (@110V) | +12V,+12V1,+12V2,+12V3,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 17 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+12V3) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 17 ms |
| Efficiency | 82% |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 2 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy drive power connector | 1 |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 30 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | cUL, TÜV, CB, BSMI, CCC |
| Certification | FCC class B, CE, BSMI, CCC |
| Compatible products Other products that can be used with this product. | SH67H3, SH67H7, SN78SH7, SG45H7, SP45H7, SX58H7(Pro), SG41J1/J4, SH55J2, SX58J3, SH61R4, SH81R4, SZ68R5, SZ77R5, SX79R5, SH87R6, SZ87R6, SH97R6, SH110R4, SH170R6 (Plus), SZ170R8(V2), SZ270R8(P) |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 82 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 53 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.1 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Rise time | 20 ms |
| SKU | 726731 |
| MPN | PC63J |
| Brand | Shuttle |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.shuttle.eu/en/ |
