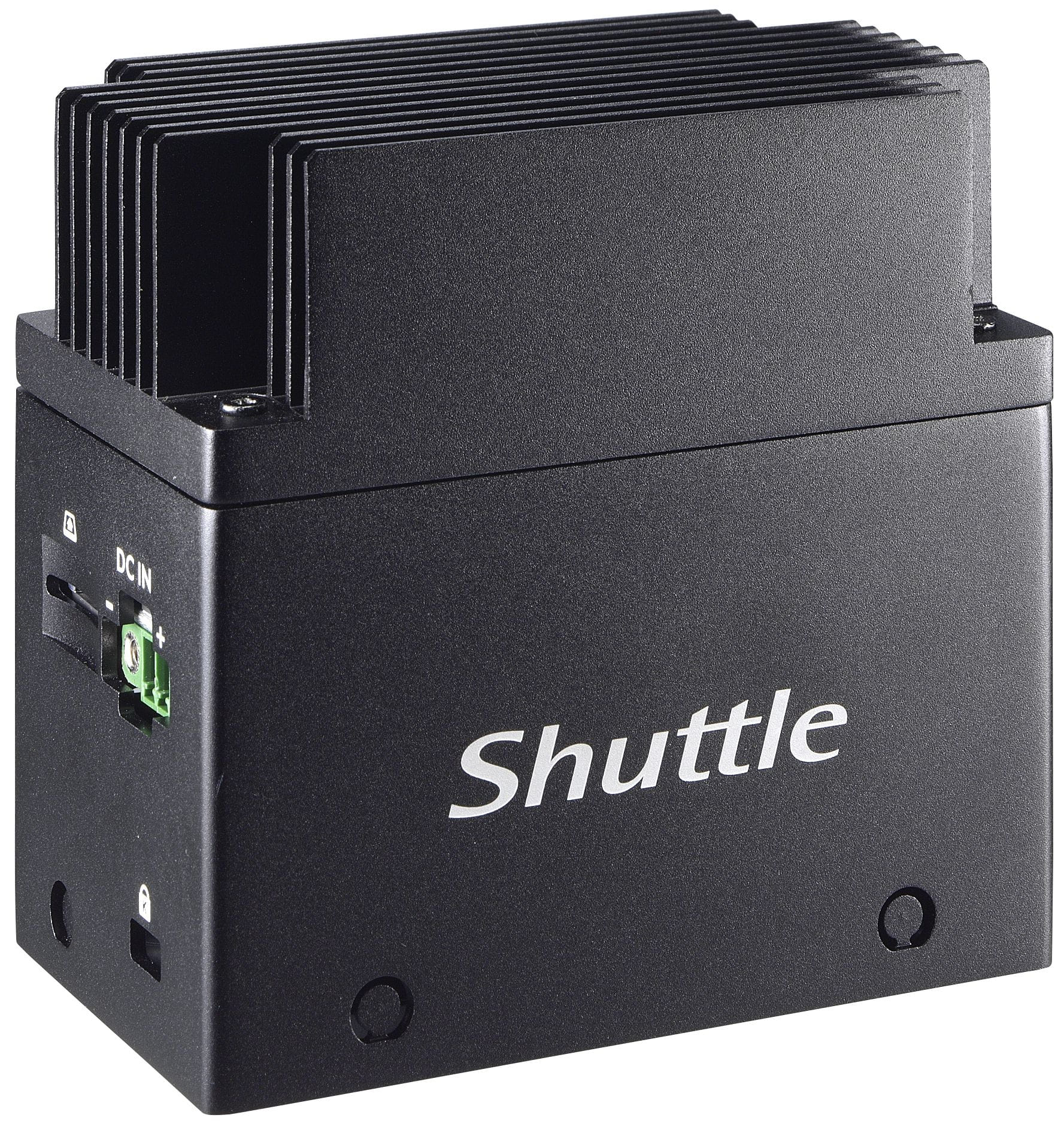

Shuttle EDGE EN01J3, 2 GHz, Intel® Celeron®, J3355, 4 GB, LPDDR4-SDRAM, 64 GB
Robust Industry PC with VESA/DIN-Rail mount and various options
The Shuttle EN01J3 is a fanless IPC in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and designed for maintenance-free 24/7 operation at ambient temperatures of up to 50DegC. Inside there is a CPU board with an Intel "Apollo Lake" processor and a carrierboard with several I/O ports and a card reader. Optional features comprise a second LAN port with PoE function, LTE/WLAN function and video capturing via HDMI. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.
Ideal for DIN rail
With a DIN rail mounting, this model can be attached to a top-hat rail by means of a clamping mechanism and thus be used in switch cabinets and distribution boxes, for example.
Two-pin Euroblock connector
This device has a two-pin Euroblock connector and can be supplied with 12-19 volts. A Phoenix screw terminal and an adapter for power supply units with hollow connectors are included.
Power supply via PoE (Option)
Thanks to PoE (Power over Ethernet), the model's power and data transmission is completely over the network cable. This saves costs for cabling and provides more space in limited areas. (Available as accessory)
Suitable for constant operation
Work 24 hours a day, 7 days a week. As it does not use any moving parts, such as a fan, this Mini-PC is approved for constant operation. This means lower maintenance costs and a longer lifespan.
Soldered Flash memory storage
This model already has many gigabytes of storage space for the operating system and as general data storage. This can be extended by external or internal drives if required.
Ready for 4G mobile reception
For this model, the Shuttle range of accessories offers a separately available antenna kit which can be used to install 4G modules in an M.2-3042 format.
Suitable for Linux operating systems
This model was successfully tested with Linux. All machine functions worked without problem immediately after installation.
Robust aluminium housing
The use of aluminium as housing material has decisive advantages. Aluminium has an ideal ratio between weight and strength, it does not rust and is insensitive to magnetism. Its thermal conductivity is four times higher than steel.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.
HDMI interface
Goodbye cable spaghetti Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Card reader
Simply insert the memory card and you can access all stored photos and videos immediately.
For a longer life and more system stability
All the components of the highly integrated mainboard of this PC are fitted with modern solid capacitors, which offer six times the lifespan of normal capacitors.
Securely attached
The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.
The Shuttle EN01J3 is a fanless IPC in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and designed for maintenance-free 24/7 operation at ambient temperatures of up to 50DegC. Inside there is a CPU board with an Intel "Apollo Lake" processor and a carrierboard with several I/O ports and a card reader. Optional features comprise a second LAN port with PoE function, LTE/WLAN function and video capturing via HDMI. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.
Ideal for DIN rail
With a DIN rail mounting, this model can be attached to a top-hat rail by means of a clamping mechanism and thus be used in switch cabinets and distribution boxes, for example.
Two-pin Euroblock connector
This device has a two-pin Euroblock connector and can be supplied with 12-19 volts. A Phoenix screw terminal and an adapter for power supply units with hollow connectors are included.
Power supply via PoE (Option)
Thanks to PoE (Power over Ethernet), the model's power and data transmission is completely over the network cable. This saves costs for cabling and provides more space in limited areas. (Available as accessory)
Suitable for constant operation
Work 24 hours a day, 7 days a week. As it does not use any moving parts, such as a fan, this Mini-PC is approved for constant operation. This means lower maintenance costs and a longer lifespan.
Soldered Flash memory storage
This model already has many gigabytes of storage space for the operating system and as general data storage. This can be extended by external or internal drives if required.
Ready for 4G mobile reception
For this model, the Shuttle range of accessories offers a separately available antenna kit which can be used to install 4G modules in an M.2-3042 format.
Suitable for Linux operating systems
This model was successfully tested with Linux. All machine functions worked without problem immediately after installation.
Robust aluminium housing
The use of aluminium as housing material has decisive advantages. Aluminium has an ideal ratio between weight and strength, it does not rust and is insensitive to magnetism. Its thermal conductivity is four times higher than steel.
Fanless and whisper-quiet
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.
HDMI interface
Goodbye cable spaghetti Modern flat-screen TVs and large-format TFT screens can be connected to this Mini-PC with just a single thin cable. Often the audio output is also transferred in brilliant quality via the HDMI cable.
Low energy consumption
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Card reader
Simply insert the memory card and you can access all stored photos and videos immediately.
For a longer life and more system stability
All the components of the highly integrated mainboard of this PC are fitted with modern solid capacitors, which offer six times the lifespan of normal capacitors.
Securely attached
The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Celeron® |
| Processor model The model number for the processor in a computer. | J3355 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 2 |
| Processor threads | 2 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 2.5 GHz |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2 GHz |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | BGA 1296 |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system. | 5 GT/s |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor codename | Apollo Lake |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| PCI Express slots version | 2.0 |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x2+2x1, 4x1 |
| Stepping | B1 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 4 GB |
| Maximum internal memory The maximum internal memory which is available in the product. | 4 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | LPDDR4-SDRAM |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 2400 MHz |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 64 GB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | eMMC |
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
 |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Graphics | |
| Discrete graphics card |
|
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® HD Graphics 500 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card burst frequency | 700 MHz |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) The feature may not be available on all computing systems. Functionality, performance, and other benefits of this feature may vary depending on system configuration. | 3 |
| Number of execution units | 12 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Design | |
| Volume The amount of a substance contained. | 0.45 L |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Horizontal |
| VESA mounting |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Performance | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel SoC |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| Product type The sub-category of the product. | Mini PC |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. |
|
| Drivers included |
|
| Processor special features | |
| Intel® Small Business Advantage (Intel® SBA) <b>Solutions to Help You Focus on Your Small Business</b> Intel® Small Business Advantage (Intel® SBA) helps small businesses without a managed network manage security and productivity issues. This solution helps maintain and protect PCs automatically so that you can focus on running your business. |
|
| Intel® Wireless Display (Intel® WiDi) <b>Connect to TV Wirelessly</b> With a few clicks, Intel® Wireless Display expands your screen’s potential, linking mobile devices and laptops to TV screens wirelessly. Stream family favorites and view personal experiences while turning your device’s small screen into a superior, sharable experience. |
|
| Intel® High Definition Audio (Intel® HD Audio) <b>Integrated Audio for Today and Tomorrow</b> A new specification for integrated audio, Intel® High Definition Audio (Intel® HD Audio) delivers the features and high-end performance of an add-in audio card while playing back more channels with improved quality. Intel HD Audio provides high-quality multi-channel audio experiences with new encoding and decoding algorithms to enhance the listening experience. |
|
| Intel 64 |
|
| Enhanced Intel SpeedStep Technology |
|
| Embedded options available |
|
| Intel® InTru™ 3D Technology Add a new dimension to your viewing experience. Now you can play games and watch your favorite 3D movies with Blu-ray Stereo 3D playback using passive or active shutter 3D glasses. InTru™ 3D technology by Intel in association with Dreamworks delivers it all in 1080p full high-definition resolution on your TV over HDMI 1.4. |
|
| Intel® Insider™ Experience a whole new level of premium HD entertainment with Intel® Insider™—available exclusively with 5th generation Intel® Core™ processors. |
|
| Intel® Clear Video HD Technology (Intel® CVT HD) <b>See the World More Vividly</b> Intel® Clear Video HD Technology delivers cleaner, sharper images, more natural, accurate, and vivid colors. View images as they were meant to be seen on devices featuring Intel® Core™ processors with Intel® Graphics Technology. |
|
| Intel Clear Video Technology |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Idle States |
|
| Thermal Monitoring Technologies |
|
| Intel Stable Image Platform Program (SIPP) |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security. |
|
| Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel. |
|
| Intel Trusted Execution Technology |
|
| Execute Disable Bit |
|
| Intel Enhanced Halt State |
|
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
|
| Processor package size | 24 x 31 mm |
| Processor code | SR2Z8 |
| CPU configuration (max) | 1 |
| UART |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Secure Boot Secure Boot ensures that only trusted software with a known configuration executes as part of the boot process. It enables the hardware root of trust which starts the authentication chain for platform firmware and subsequent software load, like the operating system, for example. |
|
| Intel Smart Connect Technology version | 0.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Rapid Storage Technology |
|
| Processor ARK ID | 95597 |
| Intel® Smart Response Technology <b>Fast Access to Frequently Used Applications</b> Intel® Smart Response Technology enables a high-performance, cost-effective storage solution using either a dual solid-state and hard drive or a solid state hybrid drive (SSHD). By recognizing which data and applications are used most, Intel Smart Response Technology boosts hard drive performance so that you can create, work, and play faster than ever. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. |
|
| Intel Smart Connect Technology Intel Smart Connect Technology continually and automatically updates your e-mail, applications, and social networks, even when the system is asleep. |
|
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® Quick Sync Video Technology <b>Create, Edit, and Share Video in a Flash</b> Intel® Quick Sync Video uses the dedicated media processing capabilities of Intel® Graphics Technology to make video encoding tasks—such as creating DVDs or Blu-ray discs, creating and editing 3D videos, converting 2D video files into 3D, and converting video for portable media players and social networking sites—faster and easier. |
|
| Intel® Identity Protection Technology (Intel® IPT) <b>Protect Your Identity and Business</b> Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods. |
|
| Intel® Anti-Theft Technology (Intel® AT) <b>Disable access to missing laptops</b> Giving users access to corporate data and application through remote laptops boosts productivity, but it can also leave IT vulnerable to hackers and misplaced laptops. Intel® Anti-Theft Technology is built into the laptop hardware, helping IT administrators outwit thieves, even when they attempt to reimage the OS, change the boot order, or install a new hard drive. When laptops with Intel® Anti-Theft Technology (Intel® AT) become lost or stolen, they can be remotely disabled. If the laptop is recovered, it can be quickly reactivated to normal operation. |
|
| Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC, CE, BSMI, VCCI, RCM, ETL, CB, BSMI, IP20, ErP |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 54.4 mm |
| Depth The distance from the front to the back of something. | 92.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 90 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 480 g |
| Package weight Weight of the packaged product. | 1.03 kg |
| Packaging content | |
| Display included This product includes a display. |
|
| Cables included | DC |
| VESA mount included |
|
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| SKU | 806540 |
| MPN | EN01J3 |
| Brand | Shuttle |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR4 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.shuttle.eu/en/ |
