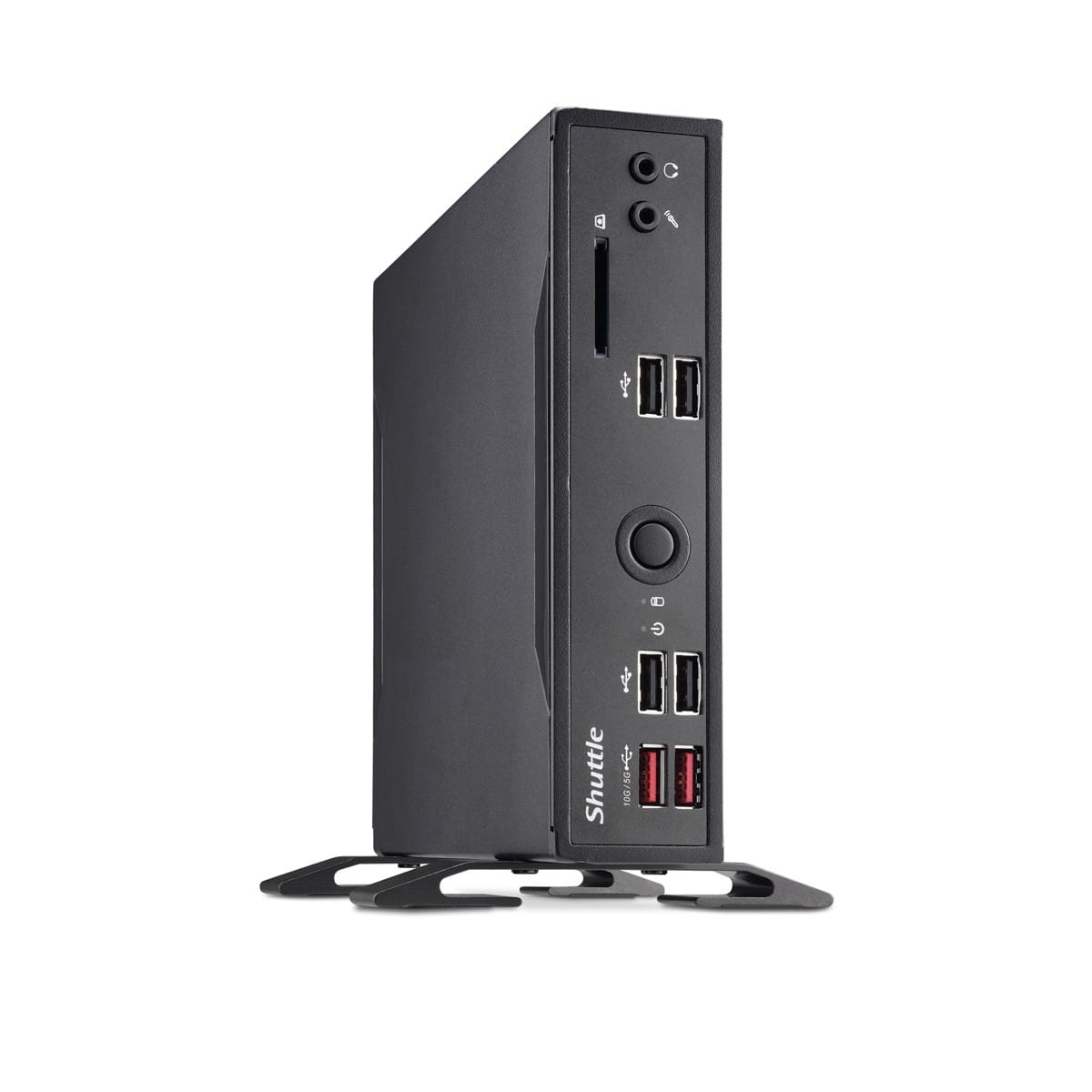

Shuttle DS20U7 Slim Mini PC 1.3L - Intel i7-10510U CPU, Support dual Intel Gigabit LAN, USB 3.0, ,RS232/RS422/RS485/Triple display/Vesa Mount
The DS20U series is a fanless, power-efficient PC powered by the 10th gen Intel Comet Lake-U processor. With a height of only 39 mm, the DS20U supports multi-core performance, up to 64 GB of DDR4, 8x USB, 2x Giga LAN, HDMI, DisplayPort, VGA, COM, space for 1x hard drive and 1x M.2 SSD as well as built-in WiFi AC+BT and 4G LTE kit (optional). Thanks to its passive cooling desig
FORM FACTOR Shuttle 1.3L Chassis
PROCESSOR Intel i7-10510U
MEMORY 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB)
Dual Channel DDR4 2400/2666Mhz
VIDEO OUTPUT (1)HDMI 2.0a + (1)DisplayPort + (1) VGA video outputs
Support triple independent display
Integrated in CPU (Intel UHD Graphics for 10th Gen Intel Processors)
AUDIO Realtek ALC897 2 channel High Definition audio
ETHERNET Intel i211 and i219LM 1Gb/s Ethernet connectors
Support Wake-On-LAN function
Realtek RTL 8821CE 802.11 a/b/g/n/ac WLAN module Support Bluetooth 4.2
STORAGE INTERFACE 6.0Gb/s bandwidth SATA3
ONBOARD CONNECTORS (1) 2.5 inch SATA connector
(1) USB2.0 header
(1) Auto Power on Jumper
(1) RS232 voltage switch
(1) External 4 pin header
FRONT PANEL (1) Power on button
(1) Power LED
(1) HDD LED
(2) USB 3.1 Gen2 (Celeron 4205U is Gen1)
(4) USB 2.0 ports
(1) SD Card reader
(1) Mic in
(1) Headphone out
BACK PANEL (2) RJ45 Gigabit LAN
(1) HDMI
(1) DisplayPort
(1) VGA
(1) RS232/RS422/RS485
(2) USB 3.1 Gen2 (Celeron 4205U is Gen1)
(1) External 4 pin header (Clear CMOS/Power Switch/5V)
(1) DC-in
(1) Kensington lock
(2) Antenna fixture
DRIVE BAYS (1) 2.5' HDD / SSD bay
DIMENSIONS 200(L) x 165(W) x 39.5(H) mm
POWER Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
65W 19V Adapter bundled
FORM FACTOR Shuttle 1.3L Chassis
PROCESSOR Intel i7-10510U
MEMORY 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB)
Dual Channel DDR4 2400/2666Mhz
VIDEO OUTPUT (1)HDMI 2.0a + (1)DisplayPort + (1) VGA video outputs
Support triple independent display
Integrated in CPU (Intel UHD Graphics for 10th Gen Intel Processors)
AUDIO Realtek ALC897 2 channel High Definition audio
ETHERNET Intel i211 and i219LM 1Gb/s Ethernet connectors
Support Wake-On-LAN function
Realtek RTL 8821CE 802.11 a/b/g/n/ac WLAN module Support Bluetooth 4.2
STORAGE INTERFACE 6.0Gb/s bandwidth SATA3
ONBOARD CONNECTORS (1) 2.5 inch SATA connector
(1) USB2.0 header
(1) Auto Power on Jumper
(1) RS232 voltage switch
(1) External 4 pin header
FRONT PANEL (1) Power on button
(1) Power LED
(1) HDD LED
(2) USB 3.1 Gen2 (Celeron 4205U is Gen1)
(4) USB 2.0 ports
(1) SD Card reader
(1) Mic in
(1) Headphone out
BACK PANEL (2) RJ45 Gigabit LAN
(1) HDMI
(1) DisplayPort
(1) VGA
(1) RS232/RS422/RS485
(2) USB 3.1 Gen2 (Celeron 4205U is Gen1)
(1) External 4 pin header (Clear CMOS/Power Switch/5V)
(1) DC-in
(1) Kensington lock
(2) Antenna fixture
DRIVE BAYS (1) 2.5' HDD / SSD bay
DIMENSIONS 200(L) x 165(W) x 39.5(H) mm
POWER Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
65W 19V Adapter bundled
| Processor | |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model The model number for the processor in a computer. | i7-10510U |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.8 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor threads | 8 |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.9 GHz |
| Processor cache | 8 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2666,3200 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | HDD & SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,M.2 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD,SDHC,SDXC |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® UHD Graphics |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Intel® I211, Intel® I219-LM |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0a |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.2 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Expansion slots | |
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | 1.3L sized PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators |
|
| Product type The sub-category of the product. | Mini PC barebone |
| Performance | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | AMI |
| BIOS memory size | 16 Mbit |
| Audio chip | Realtek ALC897 |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 11 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Processor special features | |
| Embedded options available |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel 64 |
|
| Idle States |
|
| Enhanced Intel SpeedStep Technology |
|
| Intel Flex Memory Access |
|
| Intel Trusted Execution Technology |
|
| Execute Disable Bit |
|
| Intel TSX-NI |
|
| Intel Stable Image Platform Program (SIPP) |
|
| Intel Clear Video Technology |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 65 W |
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 200 mm |
| Depth The distance from the front to the back of something. | 165 mm |
| Height The measurement of the product from head to foot or from base to top. | 39.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.5 kg |
| Package weight Weight of the packaged product. | 2.2 kg |
| SKU | 581007 |
| MPN | SYS-DS20U7 |
| Brand | Shuttle |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR4 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.shuttle.eu/en/ |
