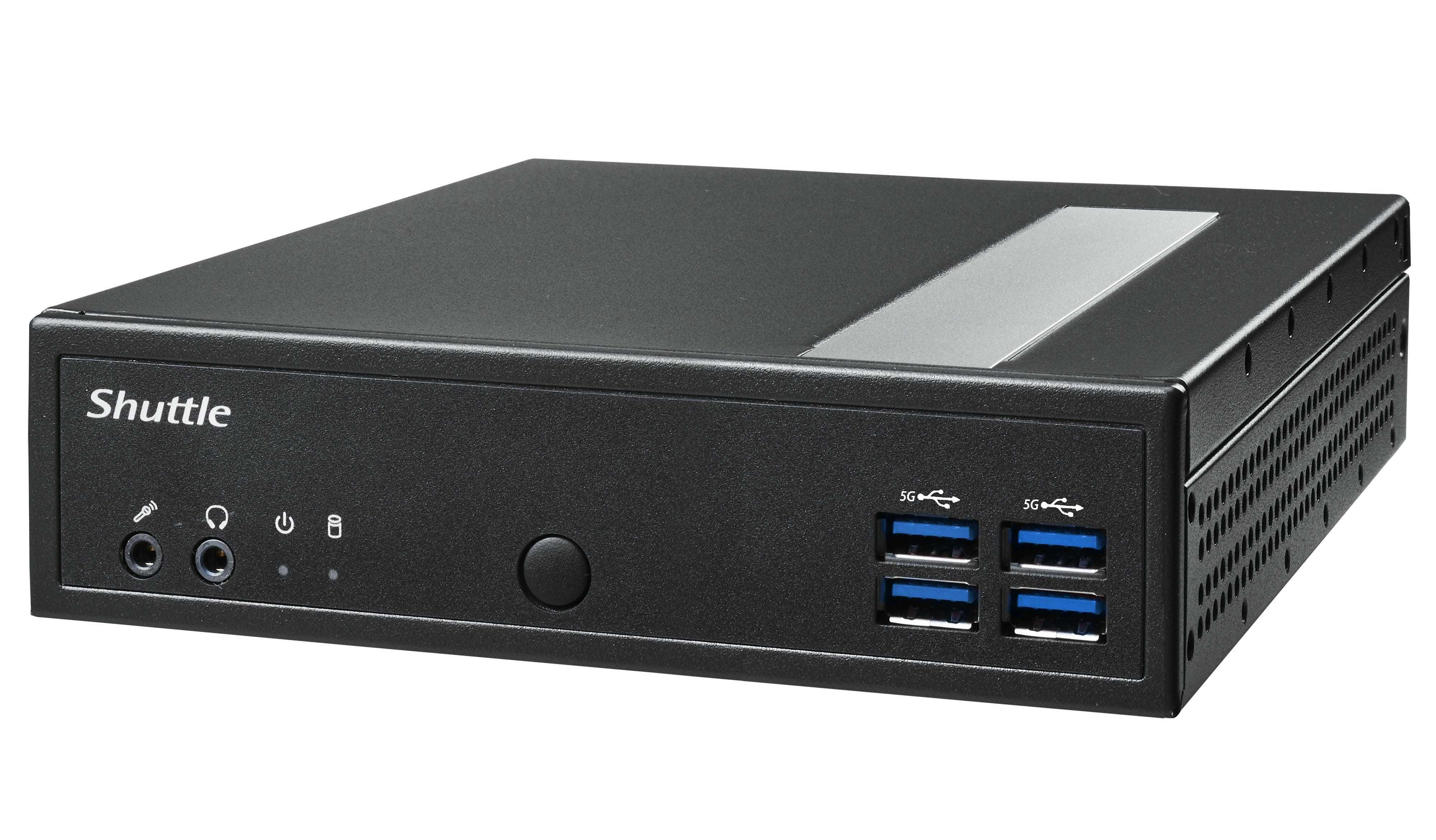

Shuttle DL40N XPC fanless Mini PC 1.3L Barebone

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor model The model number for the processor in a computer.	N150
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Processor threads	4
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	3.6 GHz
Built-in processor Whether or not a processor is built into the device.
Processor cache	6 MB
Thermal Design Power (TDP)	6 W
ECC supported by processor

Memory
Internal memory installed
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Number of memory slots	1
Maximum internal memory The maximum internal memory which is available in the product.	16 GB
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	4800 MHz
Supported memory types Types of memory which can be used with the product.	DDR5-SDRAM
Memory channels	Single-channel
Memory voltage The voltage (V) of the memory in the device.	1.1 V
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Non-ECC

Storage
Storage drives installed Storage drives are built into the system.
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5,M.2
Storage drive interface Where the storage device links with other parts of the product, or an external device.	PCI Express, Serial ATA III
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Number of storage drives supported How many storage drives can be fit into the product at once.	2
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® Graphics
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	4096 x 2160 pixels
Number of displays supported The number of displays that can be used with this product.	3

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
LAN controller	Intel I226-LM

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0b
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
DisplayPort version	1.4a
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.	2
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	1.35L sized PC
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Passive
On/off switch The button which is pressed to switch the device on or off.
LED indicators	HDD, Power
Housing material What the casing of the product is made of.	Steel
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	100 x 75 mm
Product type The sub-category of the product.	Mini PC barebone

Performance
Number of processors supported The quantity of processors which can be used by the product.	1
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	UEFI AMI
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S

Technical details
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI

Logistics data
Harmonized System (HS) code	84733080

Software
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 11 x64
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Sustainability
Sustainability compliance
Sustainability certificates	ENERGY STAR, ErP

Power
Power supply type The type of power supply which this product uses.	External AC adapter
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	65 W
Number of power supply units	1
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	3.42 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	165 mm
Depth The distance from the front to the back of something.	190 mm
Height The measurement of the product from head to foot or from base to top.	43 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	800 g
Package weight Weight of the packaged product.	2.1 kg

Packaging content
Power cord included
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Drivers included
