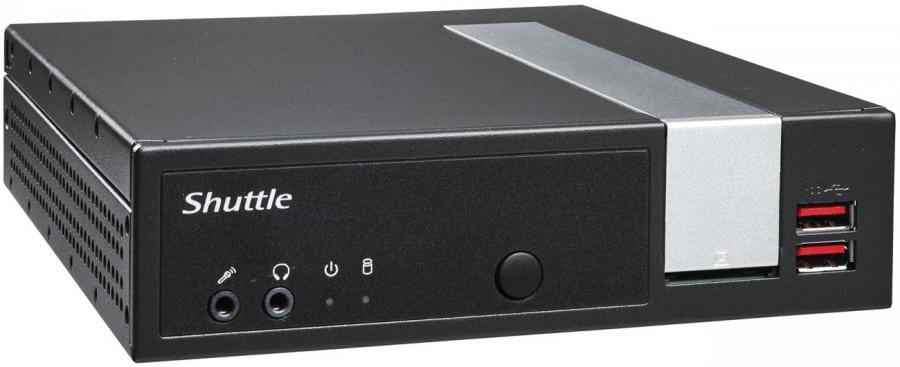

Shuttle DL20N XPC Slim Mini PC, N4505, 16GB RAM Barebone

Processor
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Celeron®
Processor model The model number for the processor in a computer.	N4505
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	2
Processor threads	2
Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit).	10 nm
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	2.9 GHz
CPU configuration (max)	1

Memory
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Number of memory slots	2
Maximum internal memory The maximum internal memory which is available in the product.	16 GB
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	2933 MHz
Supported memory types Types of memory which can be used with the product.	DDR4-SDRAM
Memory channels	Dual-channel

Storage
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Storage drive sizes supported The sizes of storage drives that can be used with the product.	2.5"
SSD form factor The size of the solid-state drive, given in inches	2.5"
Storage drive interface Where the storage device links with other parts of the product, or an external device.	Serial ATA III
Number of storage drives supported How many storage drives can be fit into the product at once.	1
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	SD

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.

Network
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Not supported
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
LAN controller	Intel® I211
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0b
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
DisplayPort version	1.4a
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
COM ports quantity	2
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	1.35L sized PC
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Passive
LED indicators	HDD, Power
Housing material What the casing of the product is made of.	Steel
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
VESA mounting
Product type The sub-category of the product.	Mini PC barebone
Safety List of regulatory safety standards for all countries in which this product has been certified.	CB, BSMI, ETL
Certification	FCC, CE, BSMI, RCM, VCCI, RED, RoHS, ErP

Performance
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel SoC
Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.	BGA 1090
Number of processors supported The quantity of processors which can be used by the product.	1
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	UEFI AMI
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	1.2
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10,Windows 11
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
Harmonized System (HS) code	84733080

Processor special features
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)
Intel 64
Idle States
Enhanced Intel SpeedStep Technology
Intel Trusted Execution Technology
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Technical details
Sustainability certificates	ENERGY STAR

Logistics data
Country of origin Country where the device is made. Aka Country of manufacture (COM).	China

Power
Power supply type The type of power supply which this product uses.	External AC adapter
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	40 W
Number of power supply units	1
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC adapter output voltage	19 V
AC adapter output current	2.1 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	190 mm
Depth The distance from the front to the back of something.	165 mm
Height The measurement of the product from head to foot or from base to top.	43 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	800 g
Package weight Weight of the packaged product.	1.95 kg

Packaging content
Power cord included
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Drivers included
