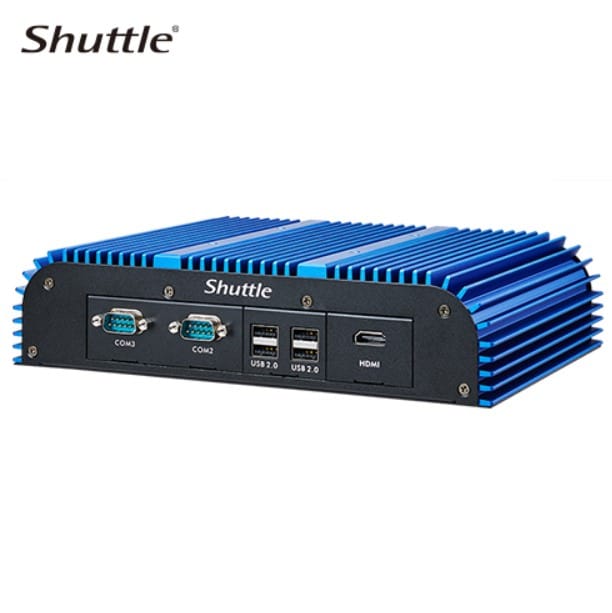

Shuttle BPCAL02 Box PC, Intel i5-1245UE, 2 x Intel 2.5G LAN, 90W External Adapter, HDMI, VESA Mount
Shuttle BPCAL02 Box PC, Intel i5-1245UE, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount
Shuttle™s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security. Powered by i5/i7 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments. Additionally, the BPCAL03 is capable of operating in a wide temperature range (-20DegC to +60DegC).
Memory 2 x 262 pin SO-DIMM up to 64GB
Dual Channel DDR5 4800 MHz
BIOS AMI UEFI 64 Mbit
Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz
Display output max: 4 independent or clone
Audio Codec Realtek ALC888s-VD 2-channel
Ethernet 2 x Intel® 2.5G LAN
WLAN Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option), Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option), External antenna (Dipole) x2 (Option)
LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
Serial Ports 1 x RS-232 (DB-9), 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board)
USB 4 x USB3.2 Gen 2 (Type A), 4 x USB2.0
Type 1. 19V (without wide range board), 2. With wide range board, MB support 9-36V DC-in
Adapter BPCAL02: 19V/4.74A 90W external adapter,
OS Support Windows 11 Embedded 64bit, Linux 64bit
Operating Temperature BPCAL02: 0 40DegC
Storage Temperature -20DegC 80DegC
Relative Humidity 20% - 80% RH (non-condensing)
EMC CE, FCC, VCCI, BSMI, RCM
Safety cTUVus, CB, CEC, BSMI
Shuttle™s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security. Powered by i5/i7 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments. Additionally, the BPCAL03 is capable of operating in a wide temperature range (-20DegC to +60DegC).
Memory 2 x 262 pin SO-DIMM up to 64GB
Dual Channel DDR5 4800 MHz
BIOS AMI UEFI 64 Mbit
Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz
Display output max: 4 independent or clone
Audio Codec Realtek ALC888s-VD 2-channel
Ethernet 2 x Intel® 2.5G LAN
WLAN Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option), Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option), External antenna (Dipole) x2 (Option)
LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
Serial Ports 1 x RS-232 (DB-9), 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board)
USB 4 x USB3.2 Gen 2 (Type A), 4 x USB2.0
Type 1. 19V (without wide range board), 2. With wide range board, MB support 9-36V DC-in
Adapter BPCAL02: 19V/4.74A 90W external adapter,
OS Support Windows 11 Embedded 64bit, Linux 64bit
Operating Temperature BPCAL02: 0 40DegC
Storage Temperature -20DegC 80DegC
Relative Humidity 20% - 80% RH (non-condensing)
EMC CE, FCC, VCCI, BSMI, RCM
Safety cTUVus, CB, CEC, BSMI
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model The model number for the processor in a computer. | i5-1235U |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 10 |
| Processor threads | 12 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 15 W |
| ECC supported by processor |
 |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 4800 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage The voltage (V) of the memory in the device. | 1.1 V |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | M.2 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | PCI Express, Serial ATA III |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
|
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel Iris Xe Graphics |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Intel I226-V |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0b |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | 2.6L sized PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Blue |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| Housing material What the casing of the product is made of. | Aluminium, Steel |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 75 x 75 mm |
| Product type The sub-category of the product. | Mini PC barebone |
| Performance | |
| BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS. | UEFI AMI |
| Trusted Platform Module (TPM) |
|
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Sustainability | |
| Sustainability certificates | Certified Enviro Cranberries (CEC), ErP |
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 90 W |
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 245 mm |
| Depth The distance from the front to the back of something. | 169 mm |
| Height The measurement of the product from head to foot or from base to top. | 57 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.85 kg |
| Packaging content | |
| AC adapter included |
|
| SKU | 806537 |
| MPN | BPCAL02-i5 |
| Brand | Shuttle |
| Product Condition | Brand New/Unused |
| Processor | Intel Core i5-1235U |
| Operating System | No OS |
| Graphics Card | Intel Iris Xe Graphics |
| RAM | 2x 262-pin SO-DIMM slot |
| Desktop Type | Branded Computers |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.shuttle.eu/en/ |
