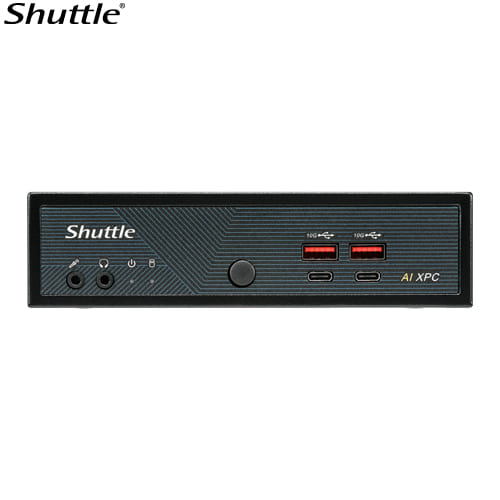

Shuttle AI XPC Meteor Lake Ultra 5 125H Processor

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel Core Ultra 5
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model The model number for the processor in a computer.	125H
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	14
Processor threads	18
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.5 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.7 GHz
Low Power Efficient-core Base Frequency	700 MHz
Built-in processor Whether or not a processor is built into the device.
Processor cache	18 MB

Memory
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Number of memory slots	2
Maximum internal memory The maximum internal memory which is available in the product.	96 GB
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	5600 MHz
Supported memory types Types of memory which can be used with the product.	DDR5-SDRAM
Memory channels	Dual-channel
Memory voltage The voltage (V) of the memory in the device.	1.1 V
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Non-ECC

Storage
Supported storage drive types The type of storage drives the device is compatible with.	SSD
Storage drive sizes supported The sizes of storage drives that can be used with the product.	M.2
SSD form factor The size of the solid-state drive, given in inches	M.2
Storage drive interface Where the storage device links with other parts of the product, or an external device.	PCI Express
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Number of storage drives supported How many storage drives can be fit into the product at once.	3

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Arc Graphics
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	3840 x 2160 pixels
Number of displays supported The number of displays that can be used with this product.	4

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
LAN controller	Intel I226-LM

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
HDMI version	2.1
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	2
DisplayPort version	1.4
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	1.35L sized PC
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Active
Housing material What the casing of the product is made of.	Metal
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	75 x 75,100 x 100 mm
Product type The sub-category of the product.	Mini PC barebone

Performance
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel SoC
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	UEFI AMI
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S

Technical details
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus

Logistics data
Harmonized System (HS) code	84733080

Software
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 11 x64
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Sustainability
Sustainability certificates	ENERGY STAR, ErP

Power
Power supply type The type of power supply which this product uses.	External AC adapter
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	120 W
Number of power supply units	1
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	190 mm
Depth The distance from the front to the back of something.	165 mm
Height The measurement of the product from head to foot or from base to top.	43 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.23 kg
Package weight Weight of the packaged product.	2.46 kg

Packaging content
Power cord included
AC adapter included
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
