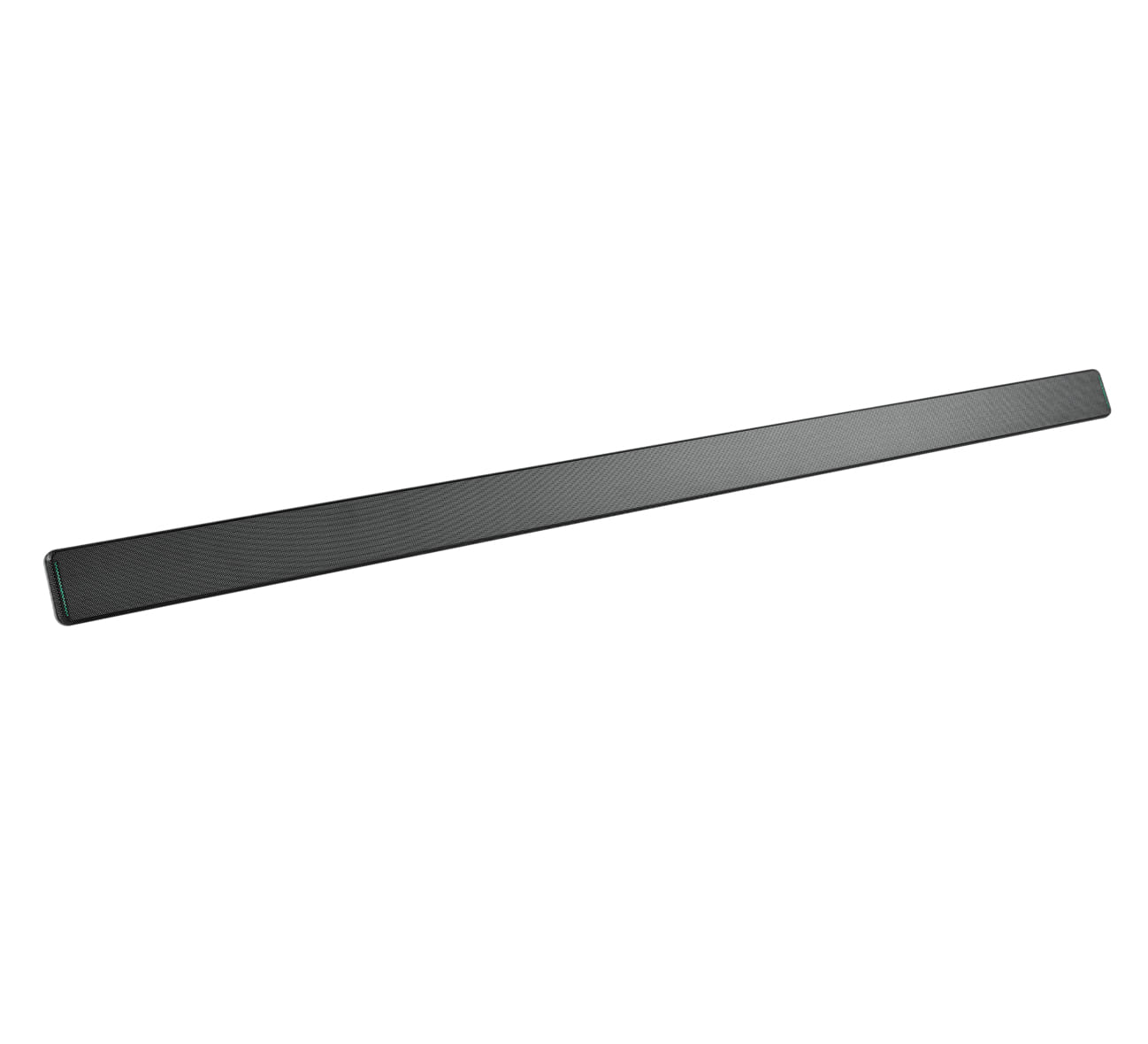

Shure MXA710 Linear Array Microphone 4Ft - Black

Item No:
833714
MPN:
MXA710B-4FT
$7,020.16

Shure MXA710 Linear Array Microphone 4Ft - Black

$7,020.16
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-4 business days
Store Availability
  • 3-5 business days at Bankstown Store
  • 3-5 business days at Castle Hill Store
  • 2-4 business days at Northmead Store
Shipping Estimate
Shure MXA710B-4FT, Conference microphone, -7.9 dB, 100 - 20000 Hz, 24 bit, 48 kHz, 79.1 dB
The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. Available in two lengths and three colors, the MXA710 includes proprietary Shure IntelliMix DSP and Autofocus technology that provides all the processing needed for echo and noise-free conference audio.

Whether it's under or next to a wall-mounted display, suspended from the ceiling or flush mounted in a table, the MXA710 subtly blends into any meeting room aesthetic, without sacrificing the premium audio capture you would expect from the newest addition to the innovative Microflex Advance portfolio.

COLLABORATION REIMAGINED
Steerable Coverage provides directional lobes easily configured depending on installation. Autofocus technology continually fine-tunes the position of each lobe in real time, for consistent sound if meeting participants shift in their seats.

ENTERPRISE-WIDE DEPLOYMENT
Unprecedented flexibility to meet varying room requirements from small to large, the MXA710 provides audio capture at scale that's easier than ever.

INTELLIMIX DSP
Onboard digital signal processing delivers a single channel of auto-mixed, noise-free, and echofree audio in AV conferencing applications, using Shure's proprietary IntelliMix DSP algorithms.

WELL CONNECTED
Intuitive, programming-free LED mute sync functionality with leading third party software
codecs solutions when connected to the IntelliMix P300 or ANIUSB-MATRIX Audio Network
Interface.

Match arrays to the audio needs of rooms of any size, configuration or installation type including wall, table or ceiling mount options.

The sleek, linear form factor of the MXA710 (available in two lengths and three colors) allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table.

With free Designer System Configuration Software you can easily pre-configure room
coverage layouts offline and fine-tuned live on-site. Complete audio routing ahead of
time to save installation time.

SystemOn Audio Asset Management Software allows you to conveniently manage largescale deployments of MXA710s across rooms, floors and buildings. Remotely monitor your inventory and troubleshoot on the go.
Microphone
Microphone sensitivity -7.9 dB
Microphone frequency The range of frequencies (low to high sounds) that the microphone can pick up (detect). 100 - 20000 Hz
Type Characteristics of the device. Conference microphone
Bit rate 24 bit
Sample rate 48 kHz
Microphone dynamic range 79.1 dB
Microphone Signal-to-Noise Ratio (SNR) 71.2 dB
Self noise 22.8 dB
Microphone mute
Volume control Digital
Noise reduction
Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired
Device interface The ports (sockets) where the device connects with other devices. RJ-45
Performance
Product colour The colour e.g. red, blue, green, black, white. Black
Power
Power source What is providing power for the product e.g. mains electricity. PoE
Weight & dimensions
Width The measurement or extent of something from side to side. 60 mm
Depth The distance from the front to the back of something. 1247.8 mm
Height The measurement of the product from head to foot or from base to top. 22.1 mm
Microphone weight 1.67 kg
Packaging data
Package width The distance from one side of the packaging to the other. 128.6 mm
Package depth The distance from the front to the back of the packaging. 1299.2 mm
Package height The distance from the top to the bottom of the packaging. 96.8 mm
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -6.7 - 40 °C
Technical details
Channels 10
More Information
SKU 833714
MPN MXA710B-4FT
Brand Shure
Product Condition Brand New/Unused
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://www.shure.com/
Stock Availability Available for Shipping
