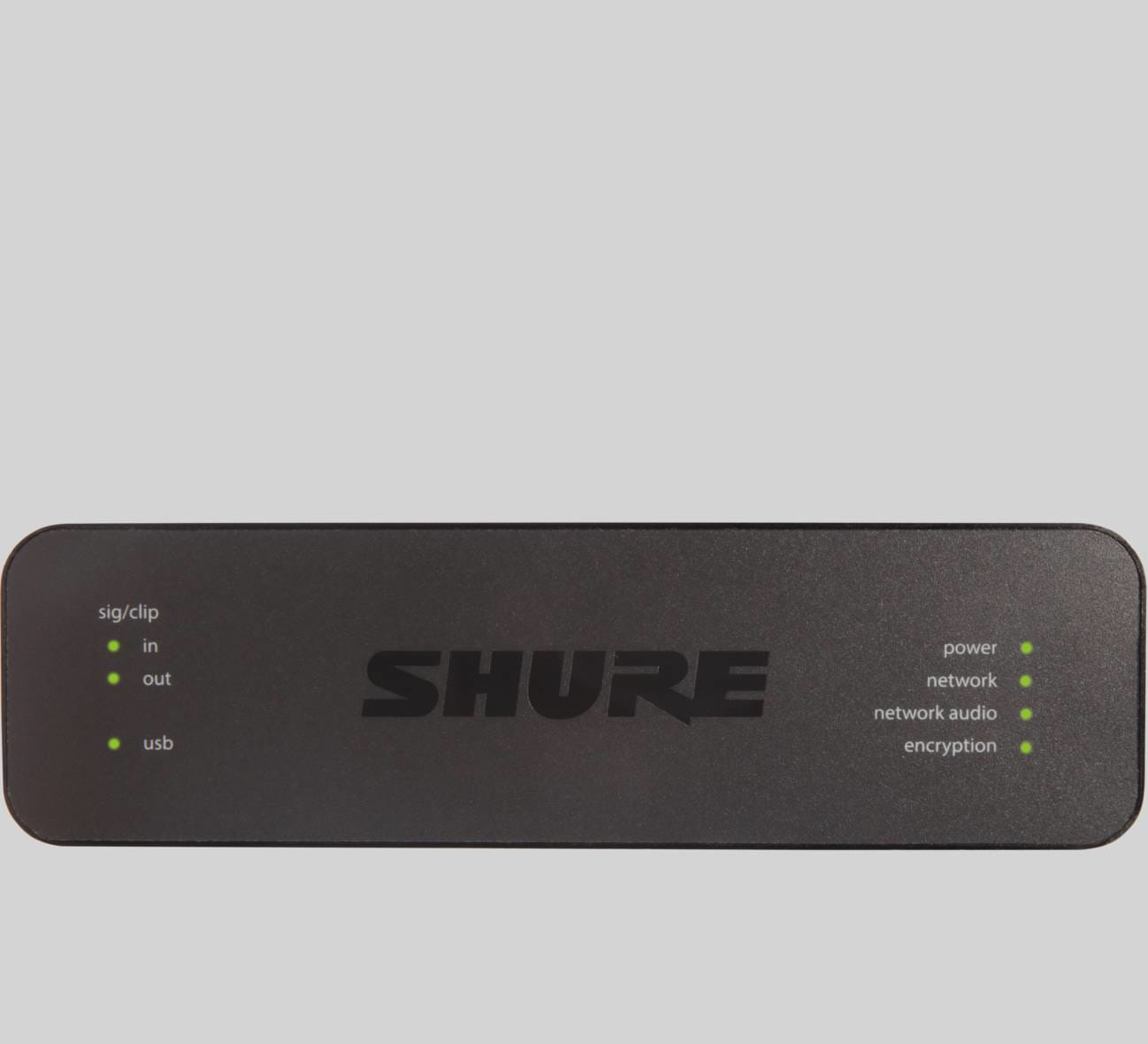

Shure ANIUSB-MATRIX, 20 - 20000 Hz, 113 dB, 1 channels, Black, USB Type-B, 6,5 W
Audio network interface connects up to 4 Dante channels and 1 analog output to a room's audio and video conferencing system via USB connection. Internal matrix mixer offers flexible routing, allowing users to route any input to any output.
The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A/V conferencing codec will be used.
The ANIUSB-MATRIX connects 4 Microflex Advance or Microflex Wireless microphone channels via Dante (4 in / 2 out), provides analog connectivity (1 block in / 1 block out) to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.
The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A/V conferencing codec will be used.
The ANIUSB-MATRIX connects 4 Microflex Advance or Microflex Wireless microphone channels via Dante (4 in / 2 out), provides analog connectivity (1 block in / 1 block out) to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).
An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.
| Audio | |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 20 - 20000 Hz |
| Dynamic range | 113 dB |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 1 channels |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6.5 W |
| External power supply |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -6.7 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -29 - 74 °C |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 140 mm |
| Depth The distance from the front to the back of something. | 128 mm |
| Height The measurement of the product from head to foot or from base to top. | 40 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 668 g |
| SKU | 828095 |
| MPN | ANIUSB-MATRIX |
| Brand | Shure |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter, Audio Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.shure.com/ |
