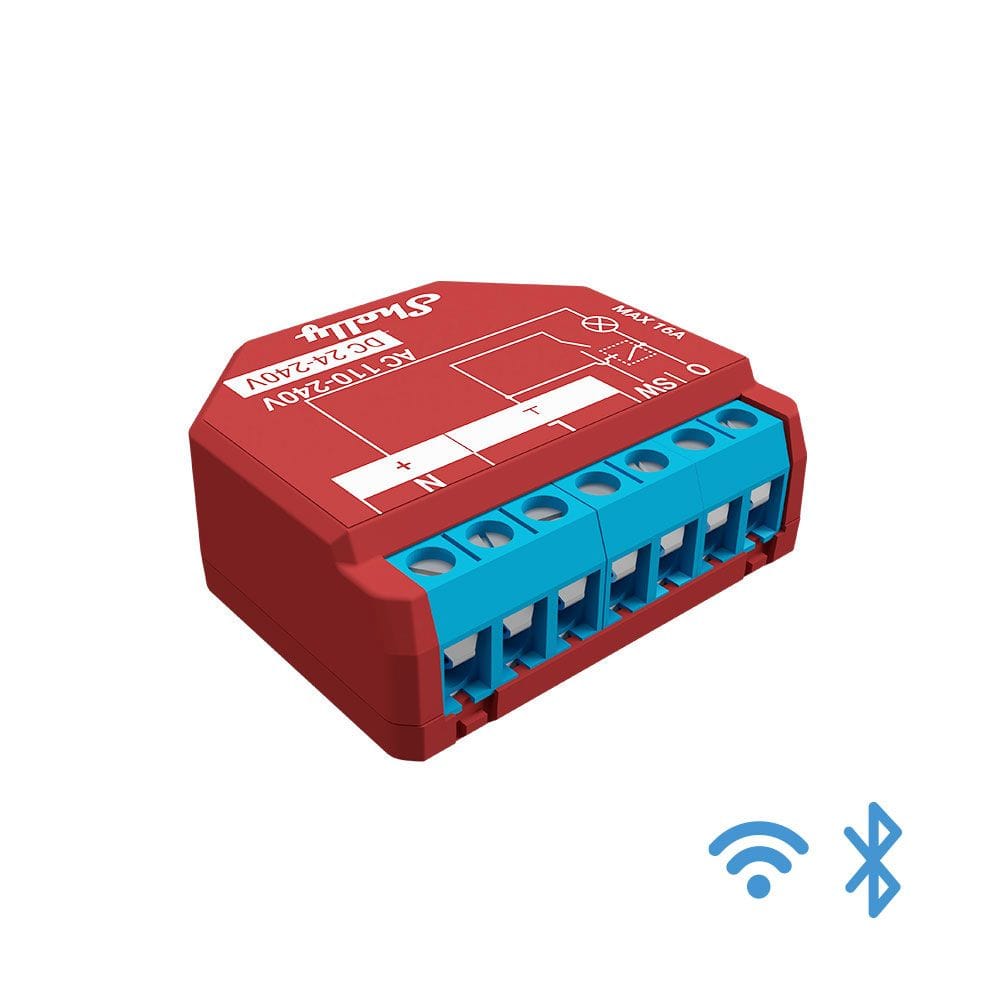

SHELLY1PM PLUS
WiFi-operated relay switch 1 channel 16A with Power Metering
Control and measure power consumption for wide range of home appliances and office equipment lights power lines security systems heating radiators air conditioners etc. from anywhere with the smallest WiFi-operated relay switch with Bluetooth connection
- Wi-Fi operated - Connects to your Wi-Fi network. No HUB required
- Bluetooth - Add devices quick and easy via Bluetooth connection using Shelly Cloud App
- Power metering with data storage
- Wide range of voltages supported
- Extremely fast processor – ESP32
- Enhanced safety – Overpower overvoltage and over-temperature protection
- Enhanced security - MQTT and WSS support TLS and custom certificates support
- Improved API interface
- Onboard scripting features to allow you to automate to your hearts content without any hub required.
| Features | |
| Type Characteristics of the device. | Smart switch |
| Number of poles | 1P |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Radio frequency | 2484 MHz |
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 50 m |
| Product colour The colour e.g. red, blue, green, black, white. | Red |
| Number of modules | 1 |
| Suitable for indoor use |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Smartphone/tablet remote support The product can be used to remotely manage a smartphone. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 230 V |
| DC voltage range | 24 – 30 |
| AC input frequency | 50 - 60 Hz |
| Rated current | 16 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 38 mm |
| Depth The distance from the front to the back of something. | 42 mm |
| Height The measurement of the product from head to foot or from base to top. | 17 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| SKU | 633766 |
| MPN | 3800235265017 |
| Brand | Shelly |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
