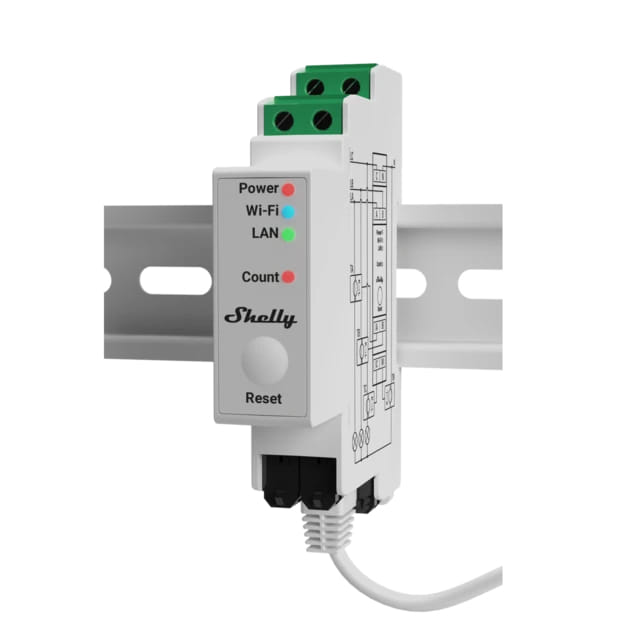

Shelly Pro 3EM-120A, AC, 120 A, 50 - 60 Hz, 49 mm, 69 mm, 94 mm
Next-generation DIN-mountable 3-Phase Energy Meter
Shelly Pro 3EM is a DIN rail mountable three-phase energy meter. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with additional options for end-customer solutions. Shelly Pro 3EM reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real-time.
WHY SHELLY PRO 3EM?
Next-generation 3-Phase Energy Meter
Shelly Pro 3EM is a Wi-Fi-operated DIN-mountable 3-Phase Energy Meter with Wi-Fi, Bluetooth, and LAN connectivity. With active energy measurement accuracy of 1%, Shelly Pro 3EM can be used to monitor the consumption of any home appliances, electric circuits, and office equipment individually. It features 60 days of on-device historical data with a 1-minute resolution for each phase. Additionally, its scripting functionalities allow for the execution of complex scenes and provide broader monitoring abilities.
4-quadrant measurement
Measure capacitive and inductive load types of active imported and exported energies.
Accuracy class B (active energy)
Shelly Pro 3EM has a measurement accuracy of 1%.
MODBUS
support
Allows for easy and fast deployment in existing industrial installations.
Wi-Fi, LAN, and Bluetooth connectivity
Simultaneous Ethernet and Wi-Fi usage. MQTT, inbound and outbound WebSocket, UDP, mTLS support.
Power
monitoring
Monitors mono-phase electrical systems with up to 3 points simultaneously. Fast notifications and at least 60 days of 1-minute records storage.
Scripting
functionalities
Shelly Pro 3PM fully supports mjS scripting, allowing you to create further features and functionalities.
Industry-grade security
Shelly Pro 3EM supports mTLS for MQTT, HTTP, and secure outbound WebSockets. Its industry-grade security allows for direct connections to your cloud infrastructure, reducing the cost of deploying complex networks and VPNs.
Industrial installations
Shelly Pro 3EM brings support for MODBUS for voltage, current, power, and energies. You can accurately sample your energy usage and instantaneous values of voltage, current, and power. Our new firmware platform allows for custom implementation that can report as fast as every 100ms to your infrastructure.
2-way energy consumption monitoring
Monitor your home, office, or factory, and avoid additional expenses or drops in voltage that can damage your appliances and devices. Shelly Pro 3EM can calculate 2-way consumption: produced and used energy for each of the three phases. The device can be configured to measure three separate circuits of a mono-phase electrical system. View the quality of your electricity network regarding active power, reactive power, voltage, and power factor.
Local control
Thanks to Shelly Pro 3EM's scripting functionalities and webhooks, you can now easily control other Shelly or Wi-Fi devices on your local network. Use these capabilities to set exact parameters for heating, cooling, or electric vehicle charging based on PV production and have your devices automatically shed power usage. All these work without using a cloud.
Solar panels monitoring and control
Keep track of how much energy your solar panels or wind turbines are generating and save effortlessly. Shelly Pro 3EM provides real-time information about the efficiency of the solar and wind energy system, as well as historical data on how much energy has been generated and consumed every minute for the past 60 days. This helps you control the energy flow, getting the most out of your solar panels and wind turbines. To take it a step further, connect Shelly Pro 3EM to your other Shelly devices and create scenes to trigger desired actions like turning off appliances or sounding alarms.
Shelly Pro 3EM is a DIN rail mountable three-phase energy meter. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with additional options for end-customer solutions. Shelly Pro 3EM reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real-time.
WHY SHELLY PRO 3EM?
Next-generation 3-Phase Energy Meter
Shelly Pro 3EM is a Wi-Fi-operated DIN-mountable 3-Phase Energy Meter with Wi-Fi, Bluetooth, and LAN connectivity. With active energy measurement accuracy of 1%, Shelly Pro 3EM can be used to monitor the consumption of any home appliances, electric circuits, and office equipment individually. It features 60 days of on-device historical data with a 1-minute resolution for each phase. Additionally, its scripting functionalities allow for the execution of complex scenes and provide broader monitoring abilities.
4-quadrant measurement
Measure capacitive and inductive load types of active imported and exported energies.
Accuracy class B (active energy)
Shelly Pro 3EM has a measurement accuracy of 1%.
MODBUS
support
Allows for easy and fast deployment in existing industrial installations.
Wi-Fi, LAN, and Bluetooth connectivity
Simultaneous Ethernet and Wi-Fi usage. MQTT, inbound and outbound WebSocket, UDP, mTLS support.
Power
monitoring
Monitors mono-phase electrical systems with up to 3 points simultaneously. Fast notifications and at least 60 days of 1-minute records storage.
Scripting
functionalities
Shelly Pro 3PM fully supports mjS scripting, allowing you to create further features and functionalities.
Industry-grade security
Shelly Pro 3EM supports mTLS for MQTT, HTTP, and secure outbound WebSockets. Its industry-grade security allows for direct connections to your cloud infrastructure, reducing the cost of deploying complex networks and VPNs.
Industrial installations
Shelly Pro 3EM brings support for MODBUS for voltage, current, power, and energies. You can accurately sample your energy usage and instantaneous values of voltage, current, and power. Our new firmware platform allows for custom implementation that can report as fast as every 100ms to your infrastructure.
2-way energy consumption monitoring
Monitor your home, office, or factory, and avoid additional expenses or drops in voltage that can damage your appliances and devices. Shelly Pro 3EM can calculate 2-way consumption: produced and used energy for each of the three phases. The device can be configured to measure three separate circuits of a mono-phase electrical system. View the quality of your electricity network regarding active power, reactive power, voltage, and power factor.
Local control
Thanks to Shelly Pro 3EM's scripting functionalities and webhooks, you can now easily control other Shelly or Wi-Fi devices on your local network. Use these capabilities to set exact parameters for heating, cooling, or electric vehicle charging based on PV production and have your devices automatically shed power usage. All these work without using a cloud.
Solar panels monitoring and control
Keep track of how much energy your solar panels or wind turbines are generating and save effortlessly. Shelly Pro 3EM provides real-time information about the efficiency of the solar and wind energy system, as well as historical data on how much energy has been generated and consumed every minute for the past 60 days. This helps you control the energy flow, getting the most out of your solar panels and wind turbines. To take it a step further, connect Shelly Pro 3EM to your other Shelly devices and create scenes to trigger desired actions like turning off appliances or sounding alarms.
| Technical details | |
| AC outlet types The type of outlet for AC electricity. | Hard Wire 3-wire (3PH + G) |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Accuracy | 1% |
| LED indicators | LAN, Power, Wi-Fi |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 4 (802.11n) |
| Wi-Fi range | 30 m |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.2 |
| Displayed energy consumption units | A, V, W |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| DIN rail mounting |
|
| Cable section | 0.5 - 2.5 mm² |
| Maximum tightening torque | 0.4 N⋅m |
| Stripped wire length | 6 - 7 mm |
| Temperature sensor |
|
| Ammeter accuracy | 0 - 120 |
| Flash memory | 16 MB |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power source type What the power source is. | AC |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 120 A |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 50 - 60 Hz |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 49 mm |
| Depth The distance from the front to the back of something. | 69 mm |
| Height The measurement of the product from head to foot or from base to top. | 94 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 62 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Maximum operating altitude | 2000 m |
| SKU | 745628 |
| MPN | 3800235268100 |
| Brand | Shelly |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://shelly.cloud/ |
| Stock Availability | Available for Shipping |
