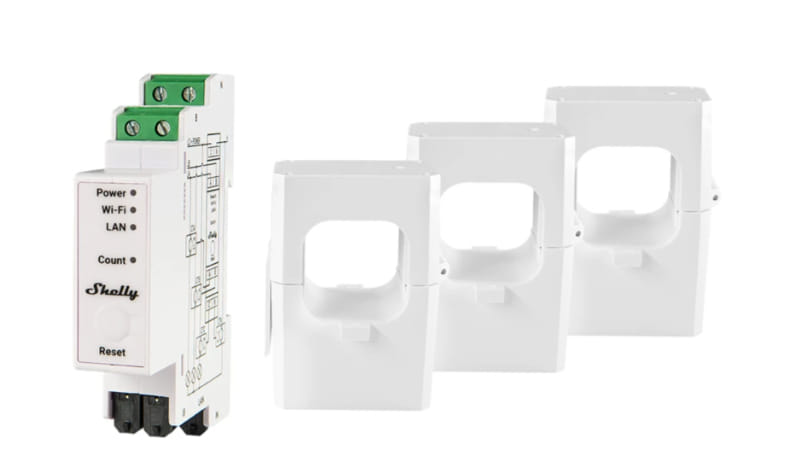

Shelly Pro 3EM-400A, AC, 400 A, 50 - 60 Hz, 3 W, 100 - 260 V, 19 mm
Shelly Pro 3EM-400 is a DIN rail mountable three-phase energy meter. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with additional options for end-customer solutions. Shelly Pro 3EM-400 reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real-time.
Next-generation 3-Phase Energy Meter
Shelly Pro 3EM-400 is a Wi-Fi-operated DIN-mountable 3-Phase Energy Meter with Wi-Fi, Bluetooth, and LAN connectivity. With active energy measurement accuracy of 1%, Shelly Pro 3EM-400 can be used to monitor the consumption of home appliances, business electric circuits, and office equipment individually. It features 60 days of on-device historical data with a 1-minute resolution for each phase. Additionally, its scripting functionalities allow for the execution of complex scenes and provide broader monitoring abilities.
Next-generation 3-Phase Energy Meter
Shelly Pro 3EM-400 is a Wi-Fi-operated DIN-mountable 3-Phase Energy Meter with Wi-Fi, Bluetooth, and LAN connectivity. With active energy measurement accuracy of 1%, Shelly Pro 3EM-400 can be used to monitor the consumption of home appliances, business electric circuits, and office equipment individually. It features 60 days of on-device historical data with a 1-minute resolution for each phase. Additionally, its scripting functionalities allow for the execution of complex scenes and provide broader monitoring abilities.
| Technical details | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Accuracy | 1% |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 4 (802.11n) |
| Wi-Fi range | 50 m |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.2 |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| DIN rail mounting |
|
| Cable section | 0.5 - 2.5 mm² |
| Maximum tightening torque | 0.4 N⋅m |
| Stripped wire length | 6 - 7 mm |
| Temperature sensor |
|
| Ammeter accuracy | 1 - 2 |
| Flash memory | 16 MB |
| Microcontroller model | ESP32-D0WDQ6 |
| Webhooks (URL actions) |
|
| Power | |
| Power source type What the power source is. | AC |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 400 A |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 50 - 60 Hz |
| Maximum power The maximum power that can be put into or produced by the device. | 3 W |
| Voltmeter (RMS for each phase) | 100 - 260 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 19 mm |
| Depth The distance from the front to the back of something. | 69 mm |
| Height The measurement of the product from head to foot or from base to top. | 94 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 62 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Maximum operating altitude | 2000 m |
| SKU | 749303 |
| MPN | 3800235268117 |
| Brand | Shelly |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://shelly.cloud/ |
| Stock Availability | Available for Shipping |
