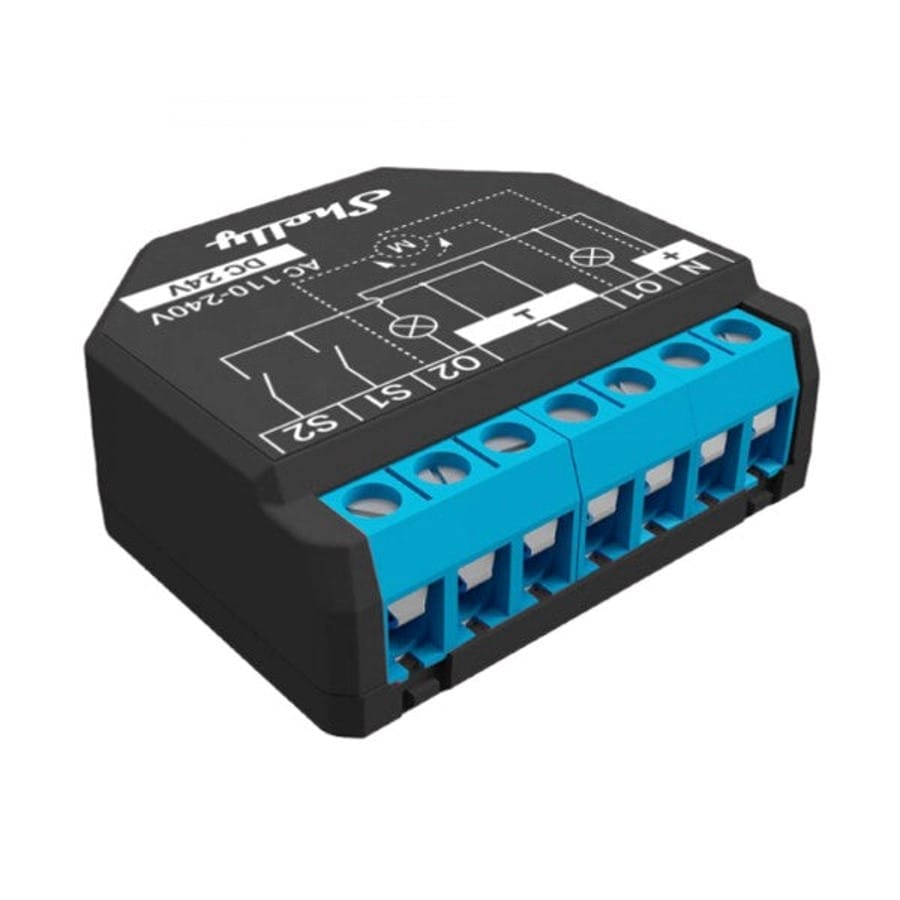

Shelly Plus 2PM
Shelly Plus 2PM is a one-phase two channel smart relay supporting up to 10A per channel and 16A total current 18A peak. It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption. Cover roller control allows for the control and monitoring of roller shutters blinds curtains gates or other bi-directional AC motors.
- Wi-Fi operated – Connects to your Wi-Fi network. No HUB required
- Bluetooth – Add devices quick and easy via Bluetooth connection using Shelly Cloud App
- 2 channels on the same phase
- Power metering on each channel
- Cover roller control- automate and adjust the position of roller shutters blinds gates curtains awnings sliding doors other bi-directional motors
- Wide range of voltage support
- Scripting schedules and webhooks
| Features | |
| Type Characteristics of the device. | Smart switch |
| Number of poles | 2P |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Radio frequency | 2400 MHz |
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 50 m |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Suitable for indoor use |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| DC voltage range | 24 V |
| AC input frequency | 50 - 60 Hz |
| Nominal current output | 10 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 38 mm |
| Depth The distance from the front to the back of something. | 42 mm |
| Height The measurement of the product from head to foot or from base to top. | 17 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| SKU | 691530 |
| MPN | 3800235265031 |
| Brand | Shelly |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
