SHELLY DIMMER GEN 3

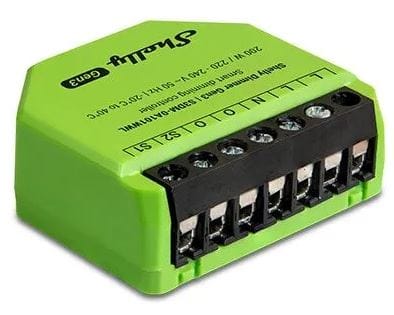

Shelly Dimmer Gen3
Smart dimming controller for seamless remote control of dimmable lights and drivers. It can be used with or without a neutral wire. Equipped with our own Shelly chip.
Key Features - Wi-Fi operated Bluetooth inclusion or use it as a Bluetooth gateway.
- No need for neutral Can be used without a neutral wire. Bypass is required when the device is used without neutral and the load is under 20 W.
- Supported light types Dimmable LED lamps up to 150 W Incandescent bulbs up to 200 W Halogen lamps up to 200 W Iron-core transformer with low-voltage incandescent lamps up to 200 VA Dimmable electronic transformers up to 200 W
- Overload and temperature protection
- Equipped with a new processor & increased flash memory - ESP Shelly
- Designed for installation in a limited space such as wall mounts electrical control panels etc.
- Easy control through the Shelly app as well as various protocols platforms and voice assistants.
| Performance | |
| Type Characteristics of the device. | Dimmer |
| LED lamp power (max) | 150 W |
| Halogen lamp power (max) | 200 W |
| Works with Amazon Alexa |
 |
| Design | |
| Case design | Built-in |
| Control type The way in which the device is controlled. | Wireless |
| Compatible bulb types | Halogen, Incandescent, LED |
| Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Lime |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 2412 - 2472 MHz |
| Housing material What the casing of the product is made of. | Plastic |
| Suitable for indoor use |
|
| Mobile app support |
|
| Dimmable The ability to vary the power output. For example, a light can be 'dimmed' to half power to make it less bright. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 220 - 240 V |
| AC input frequency | 50 Hz |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 1.5 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 42.5 mm |
| Depth The distance from the front to the back of something. | 16.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 38 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 24.3 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| SKU | 816842 |
| MPN | 3800238070526 |
| Brand | Shelly |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
