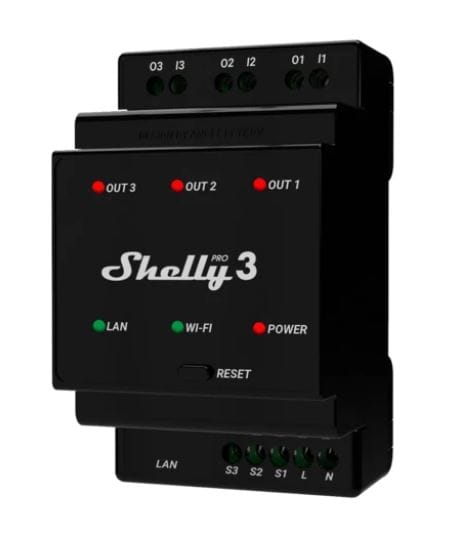

3 CIRCUIT DIN RAIL WI FI RELAY SWITCH
SHELLYPRO3
Professional 3 channel DIN rail relay with dry contacts
Shelly Pro 3 is a three phase 3 channel relay supporting up to 48A for professional lights and appliance automation for residential or commercial use. It is equipped with potential free outputs dry contacts offering high flexibility in voltage support and applications. Different types of actions scenarios and schedules can be set to sync your environment to your daily activities or business needs. Additionally Shelly Pro 3 has scripting functionalities for custom automation scenes based on external data or various occurrences.
Features
Professional 3 channel DIN rail relay with dry contacts
Shelly Pro 3 is a three phase 3 channel relay supporting up to 48A for professional lights and appliance automation for residential or commercial use. It is equipped with potential free outputs dry contacts offering high flexibility in voltage support and applications. Different types of actions scenarios and schedules can be set to sync your environment to your daily activities or business needs. Additionally Shelly Pro 3 has scripting functionalities for custom automation scenes based on external data or various occurrences.
Features
- LAN Wi Fi and Bluetooth connection
- 3 outputs 16A each. Total device maximum of 48A
- Dry contacts
- Overpower and overvoltage protection of the load.
- 3 phase control
- Easy control through the Shelly app various protocols and platforms as well as voice assistants
| Features | |
| Product type The sub-category of the product. | Smart relay |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi frequency | 2.4 GHz |
| Maximum indoor range The maximum distance to which the signals are transmitted, when the device is used indoors. | 30 m |
| Transmitting power | 13.35 dBmW |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 3 channels |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | HTTPS |
| Weekly schedule |
|
| Sunrise/sunset time |
|
| Intelligent On/Off |
|
| DIN rail mounting |
|
| Contact current capacity | 16 A |
| Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals. |
|
| LED indicators |
|
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.412 – 2.472 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Scripts supported |
|
| Webhooks (URL actions) |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Overheat protection |
|
| Overload protection |
 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3 W |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 48 A |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC output voltage | 240 V |
| DC voltage range | 30 V |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 59 x 53 x 96 mm |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| SKU | 709265 |
| MPN | SHELLYPRO3 |
| Brand | Shelly |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://shelly.cloud/ |
| Stock Availability | Available for Shipping |
