SHELLY 1 MINI GEN 3

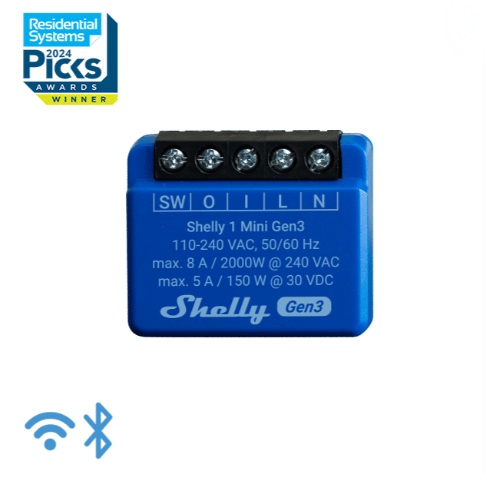

Shelly 1 Mini Gen3
Wi-Fi-operated smart switch 1 channel 8 A
The smallest relay switch in the world for smart control. Automate your lights garage door irrigation system or other small electrical appliances in less than 10 minutes and control them from anywhere. Small enough to fit behind any wall switch or socket Shelly 1 Mini Gen3 can be retrofitted and is highly compatible with your existing smart ecosystem.&8203;
- Equipped with a new processor & increased flash memory - ESP Shelly
- Improved durability of terminals
- Supports up to 8 A at 240 VAC and 5 A at 30 VDC
- Dry contacts potential-free&8203; - option for contactor control
- Wi-Fi range extender & Bluetooth gateway
- No hub required Easy control through the Shelly Smart Control app most platforms and protocols as well as voice assistants. Use it with Alexa Home Assistant or your preferred automation system
- Supports scripting webhooks MQTT WebSocket HTTPS UDP TLS and custom certificates
| Features | |
| Type Characteristics of the device. | Smart switch |
| Number of poles | 1P |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Finish type The way that a product is finished e.g. a matt or gloss finish. | Matt |
| Transmit power | 20 dBmW |
| Maximum indoor range The maximum distance to which the signals are transmitted, when the device is used indoors. | 30 m |
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 50 m |
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| Number of modules | 1 |
| Suitable for indoor use |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth range | 10 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.2 |
| Wi-Fi frequency | 2.4 GHz |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Smartphone/tablet remote support The product can be used to remotely manage a smartphone. |
|
| Works with Amazon Alexa |
|
| Works with the Google Assistant The Google Assistant is a virtual assistant developed by Google that is primarily available on mobile and smart home devices. Unlike Google Now, the Google Assistant can engage in two-way conversations |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 240 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.2 W |
| Maximum switching voltage (AC) | 240 V |
| Maximum switching voltage (DC) | 30 V |
| Maximum switching current (AC) | 8 A |
| Maximum switching current (DC) | 5 A |
| Maximum load power (AC) | 2000 W |
| Maximum load power (DC) | 150 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 35 mm |
| Depth The distance from the front to the back of something. | 16 mm |
| Height The measurement of the product from head to foot or from base to top. | 29 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 19 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 40 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 787001 |
| MPN | 3800235261576 |
| Brand | Shelly |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://shelly.cloud/ |
| Stock Availability | Available for Shipping |
