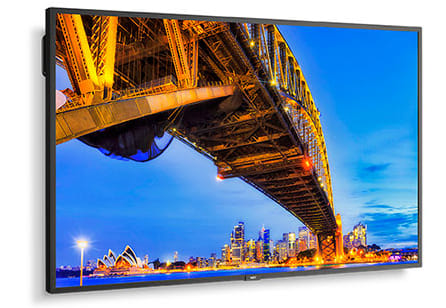

Sharp M431-2, Kiosk design, 109,2 cm (43"), LCD, 3840 x 2160 pixels
Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters
| Display | |
| Panel type | IPS |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 109.2 cm (43") |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 500 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 8000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 1.07 billion colours |
| Active display area (W x H) | 941.2 x 529.4 mm |
| Display diagonal (metric) This is the size of the display screen, measured diagonally. | 108 cm |
| Horizontal scan range | 26 - 135 kHz |
| Vertical scan range | 23 - 86 Hz |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI input ports quantity | 2 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPorts in | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB ports quantity | 1 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| RS-232 interface |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Kiosk design |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 200 x 200 mm |
| Bezel width (bottom) | 1.39 cm |
| Bezel width (side) | 1.39 cm |
| Bezel width (top) | 1.39 cm |
| Performance | |
| Purpose What the product is used for. | Retail |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Web browser |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 80 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 175 W |
| Energy efficiency class (SDR) | G |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Weight & dimensions | |
| Display width | 973 mm |
| Display depth | 62.6 mm |
| Display height | 561.2 mm |
| Display weight | 13.9 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 1120 mm |
| Package depth The distance from the front to the back of the packaging. | 203 mm |
| Package height The distance from the top to the bottom of the packaging. | 700 mm |
| Package weight Weight of the packaged product. | 19.6 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Batteries included |
|
| Cables included | HDMI, Power |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Features | |
| Base material | Metal |
| SKU | 818760 |
| MPN | M431-2 |
| Brand | Sharp |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.sharp.net.au/ |
