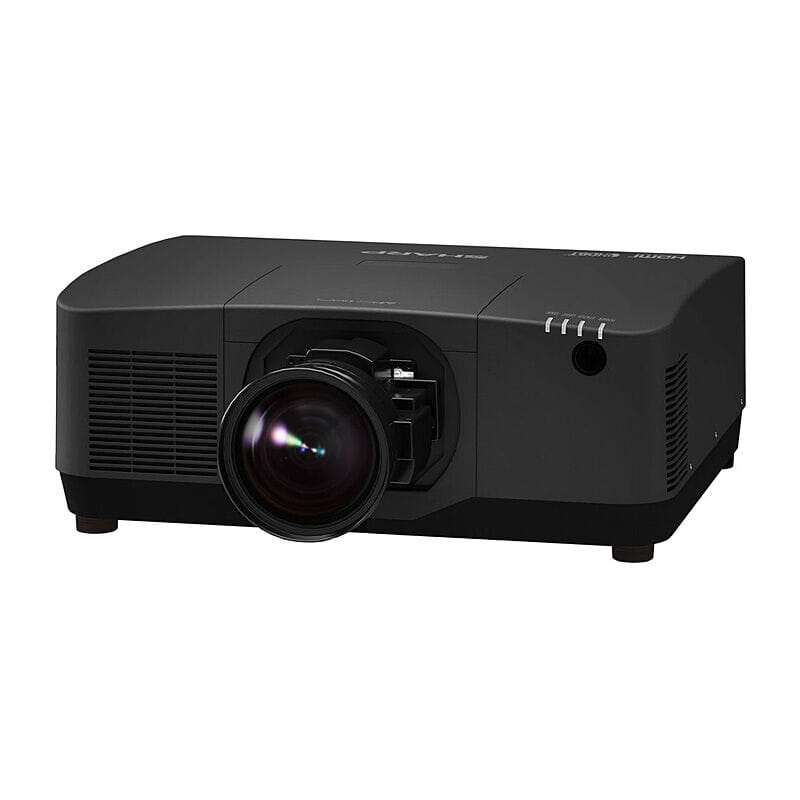

Sharp A175U-B 17000 Lumens Laser LCD Projector - Black

Features

• No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.


• No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget


• Compact design – a large venue projector with a comparatively small footprint and light weight design.


• Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.


• Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.

Specifications

General Information

• Projection Technology: 3LCD Technology


• Native Resolution: 1920 x 1200


• Aspect Ratio: 16:10


• Contrast Ratio (typ.): 3,000,000:1


• Brightness (Lumen): 16000 Lm / 17000 Lm Center; compliant with ISO21118-2012


• Light Source: Laser


• Light Source Life: 20,000 hrs


• Lens: 6 motorized lens options


• Lens Adjustment: Motorized


• Lens Shift: Up to H: ±25, V: +65 / -65


• Keystone Correction: +/- 40° manual horizontal / +/- 30° manual vertical


• Projection Factor: depending on lens selection (std. option NP54ZL at 1.25–2.01:1)


• Projection Distance (m): 0.68 – 80.77


• Screen Size (diagonal): Maximum 1,270 / 500"; Minimum 152 / 60"


• Zoom: Motorized


• Focus Adjustment: Motorized


• Frequency: Horizontal analog 0–0 kHz, digital 15/24–153 kHz; Vertical 24–120 Hz

Connectivity

• Digital Input: 1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2


• Digital Output: 1 x HDBaseT supporting HDCP 2.2


• Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support


• Input Control: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232); Ethernet


• Audio Output: 1 x 3.5 mm Stereo Mini Jack


• LAN: 1 x RJ45


• USB: 1 x Type A (USB 2.0 high speed)


• Remote Control: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID Set; Power (On/Off); Navigation; Shutter; Source Select; Test Picture; Zoom/Focus and Lens Shift Control

Electrical

• Power Consumption: 990W Normal / 890W Silent Mode / 0.5W Network Stand-by / 2.0W Stand-by


• Power Consumption (Additional): 700–800W, 0.8W (Network Stand-by) / 0.28W (Stand-by)

Environmental

• Operating Temperature: 0ºC to 40ºC


• Operating Humidity: 20% to 80%


• Storage Temperature: -10ºC to 50ºC


• Storage Humidity: 20% to 80%

Mechanical

• Dimensions (W x H x D) [mm]: 599 x 208 x 490 (without lens and feet)


• Weight [kg]: 28.7


• Fan Noise [dB(A)]: 43 / 37 (Normal / Silent)


• Colour Versions: Black

Optional Accessories

• Optional Accessories: 6 optional bayonet lenses


• Lenses (Motorized): NP51ZL (0.53–0.65:1); NP52ZL (0.65–0.86:1); NP53ZL (0.86–1.25:1); NP54ZL (1.24–2.01:1); NP55ZL (1.98–3.95:1); NP56ZL (3.92–7.5:1)

Other Features

• Safety and Ergonomics: CE; EAC; ErP; RoHS; RCM; TUEV Type Approved


• Special Characteristics: 4K/60Hz interfaces; AMX Beacon; Cinema Quality Picture (CQP) Processing; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off; Edge Blending; Free Tilt; Geometric Correction; HDBaseT; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.65/-0.65, horizontal ±0.25); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen Compensation; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security; PIP/Side-by-Side HDMI Input; PJ LINK; Portrait Setting; Rec2020→Rec709 conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for PC control


• Energy Efficiency: ECO scheduler; Intelligent Power Management; Less than 0.5W Stand-by; Longer Light Source Life; Software scheduling; Timer Function


• Ecological Standards: ErP compliant


• Ecological Materials: 100% recyclable packaging; Downloadable manuals


• Shipping Content (Accessories): Power Cable; Projector; Quick Setup Guide; IR Remote Control; User Manual on CD-ROM
