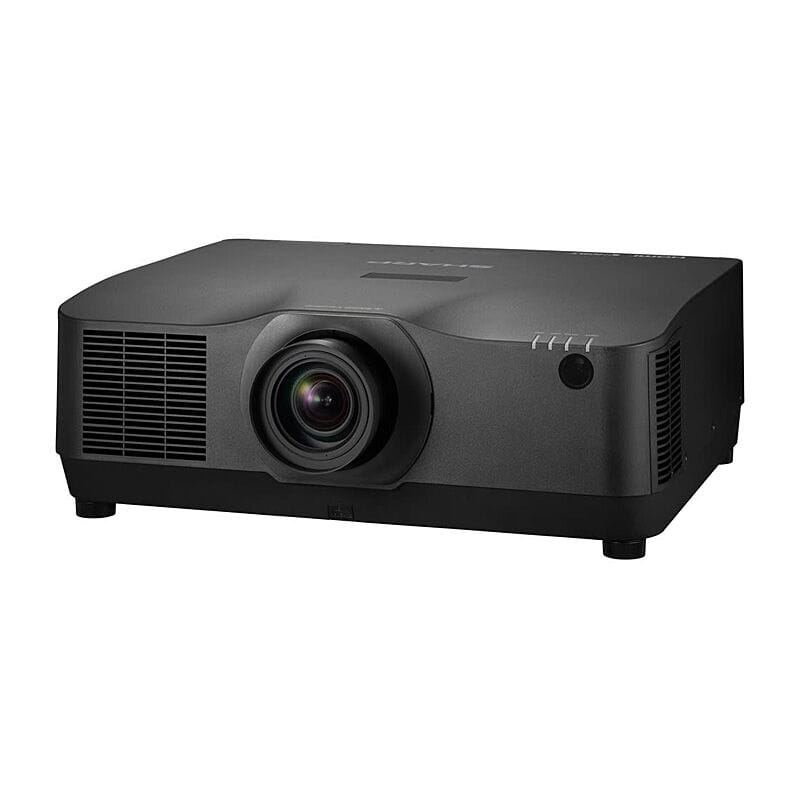

Sharp A104U-B 10000 Lumens Laser LCD Projector - Black

Features

• No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.


• No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.


• Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.


• Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.


• Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, tiling and camera based blending.

Specifications

General Information

• Projection Technology: 3LCD Technology


• Native Resolution: 1920 × 1200


• Aspect Ratio: 16:10


• Contrast Ratio (typ.): 3,000,000:1


• Brightness: 9000 Lumen (approx. 80% in Eco Mode), with standard optional lens; compliant with ISO21118'2012


• Brightness (Boost Mode): 10000 Lumen


• Light Source: Laser


• Light Source Life: 20,000 hrs


• Lens: 5 motorized lens options


• Lens Adjustment: Motorized and manual (depending on lens)


• Lens Shift: H: ±20%; V: +10% / -50%


• Keystone Correction: ±40° manual horizontal / ±40° manual vertical


• Projection Factor: Depending on lens selection (standard option XP'41ZL at 1.33.02:1)


• Projection Distance: 0.750.9 m


• Screen Size (diagonal): Min. 101.6 cm; Max. 1,270 cm


• Zoom: Motorized and manual (depending on lens)


• Frequency: Horizontal analog 15/24100 kHz, digital 15/24153 kHz; Vertical analog 48120 Hz, digital 48120 Hz

Connectivity

• Digital Input: 1 × HDBaseT; 2 × HDMI (HDCP 2.2)


• Digital Output: 1 × HDBaseT (HDCP 2.2)


• Audio Input: 1 × HDBaseT audio; 2 × HDMI audio


• Audio Output: 1 × 3.5 mm Stereo Mini Jack


• Input Control: 1 × 3.5 mm Stereo Mini Jack (Wired Remote); 1 × RS'232 (D'Sub 9 pin); Ethernet


• LAN: 1 × RJ45


• USB: 1 × Type'A (USB 2.0 high speed)


• 3D Sync Output: 1 × Mini DIN 3'pin


• Remote Control Functions: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID Set; Power On/Off; Navigation; Shutter; Source Select; Test Picture; Zoom/Focus; Lens Shift

Electrical

• Power Supply: 100240 V AC; 5060 Hz


• Power Consumption: 725 W (Normal); 395 W (Eco); 0.8 W (Network Stand'by); 0.28 W (Stand'by)

Environmental

• Operating Temperature: 0°C to 40°C


• Operating Humidity: 20% to 80%


• Storage Temperature: -10°C to 50°C


• Storage Humidity: 20% to 80%

Mechanical

• Dimensions (W × H × D): 599 × 208 × 490 mm (without lens and feet)


• Weight: 24.4 kg


• Fan Noise: 32 dB(A) (Eco) / 35 dB(A) (Normal)


• Colour Versions: Black

Optional Accessories

• Optional Accessories: 5 optional bayonet lenses; Cable Cover (XP'13CV'W, XP'13CV'B)


• Lenses (Motorized): XP'40ZL/NP40ZL (0.791.11:1); XP'41ZL/NP41ZL (1.33.02:1); XP'43ZL/NP43ZL (2.995.93:1); XP'44ML'A/NP44ML'PA4 (0.32:1); XP'50ZL/NP50ZL (0.60.75:1)

Other Features

• Safety and Ergonomics: CE; EAC; ErP; RoHS; TV Type Approved


• Special Characteristics: 3D Ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built'in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power'Off; Edge Blending; Free Tilt; Geometric Correction; HDBaseT; HDBaseT'out; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing; HTTP Browser Control; IP5X/IP6X rated; Keystone Correction (H ±40°, V ±40°); LAN Control; Lens Memory; Lens Shift (V +0.5 max / -0.1 max; H ±0.3 max); Light Source Adjustment; Manual Wall Color Correction; Multi'Screen Compensation; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security; PIP/Side'by'Side; PJ LINK; Portrait Setting; Rec2020?Rec709 Conversion; RS'232 Control; Seamless Switching; Stacking Function; Test Patterns; Timer Function; UHD Player Support; Virtual Remote

Shipping Content (Accessories)

• IR Remote Control (RD'480E)


• Power Cord


• Projector


• Quick Setup Guide
