Serveredge SEDG-ELT-8PSW-PP-C13, Basic, Managed, Monitored, Switched, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler, C14 coupler, C14 coupler

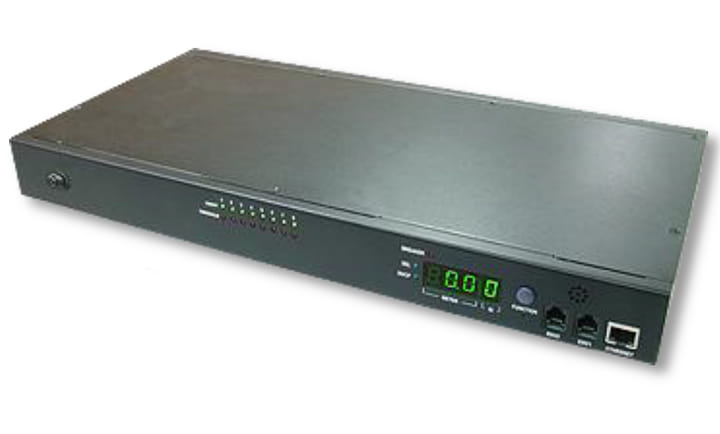

The Serveredge Elite Series PDU
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic, Managed, Monitored, Switched |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Illuminated on/off switch |
 |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C14 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RJ-11 ports quantity | 2 |
| Features | |
| LED indicators |
|
| Management features | |
| Monitoring | Power |
| Outlet control | Lock-out |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | CMP, ARP, IP, TCP, UDP, DHCP, HTTP, HTTPS, FTP, NTP, SNMP v1/2/3, TLS1.2, IPv4 and IPv6, Telnet, SSHv2 |
| Firmware upgradeable |
|
| Firmware upgradeable via | Network |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 10 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 200 - 240 V |
| Load capacity | 2400 VA |
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Packaging content | |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 65 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE |
| SKU | 758867 |
| MPN | SEDG-ELT-8PSW-PP-C13 |
| Brand | Serveredge |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.serveredge.com/ |
