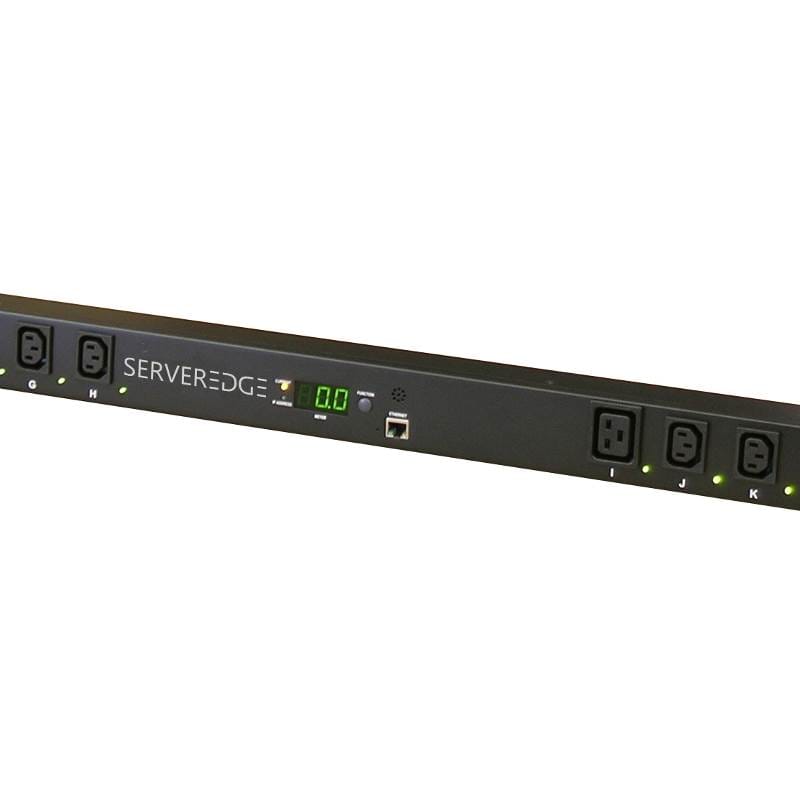

Serveredge 16-Port Switched PDU 14x IEC C13 2x IEC C19 1x IEC C20 16A

PRODUCT DESCRIPTION

Serveredge Switched rack mountable PDU (SEDG-16PSW-C13C16-16A) provides 14 X IEC 13 outputs & 2 X IEC19 outputs to power all your rack equipments with a 16A IEC 20 input. The PDU is vertical moutable 0RU and save valuable rack space. The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling a connected equipment remotely on each individual ports. A true digital RMS meter allows real time current monitoring of the connected equipments with data logging and reporting. It allows for a user defined alarm threshold for overloads and warnings.

PRODUCT SPECIFICATION

• Input/Output
  • Output: 14 X IEC 320 C13 & 2 X IEC 320 C19
  • Input: 1 X IEC 320 C20 with a 3m power cord
  • Network: RJ45
  • Current Meter: 3 Digits Seven Segments for True RMS Meter,Range: 0A ~ 20 A, Resolution-0.1A, Precision: +/-2%+/-0.1AMP
• Connectivity Status
  • DHCP Indication: Green LED Light
  • SSL Indication: Yellow LED Light
  • Output Status: Green LED Light/port
• Power Ratings
  • Voltage: 200~240 V
  • Frequency: 50-60 Hz
  • Current: 16A Maximum
• Environmental
  • Temperature: 0 ~ 40 Degree Celsius
  • Humidity: 0% ~ 90%

PRODUCT FEATURE

• Remote power management (Power cycling/ Monitoring) of the connected equipments
• 14 X IEC 13, 2 X IEC C19 Output & 3m power Cord IEC C20 Input , multiple ports allow connection to many equipments
• Full-featured network management interface via Http, Https, SNMP, DHCP, UDP
