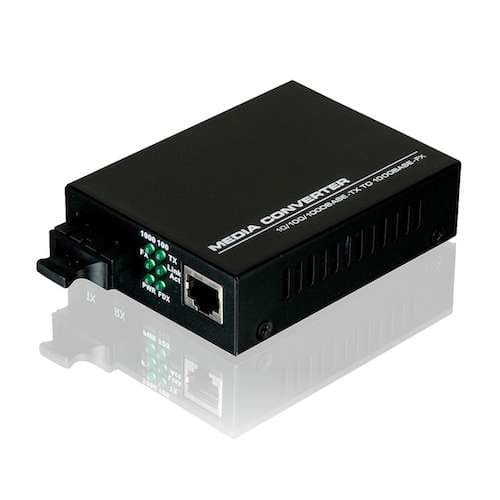

Serveredge SED-1000SSC-20, 10,100,1000 Mbit/s, SC, Wired, 20000 m, 1300 nm, -22 dBmW
The Serveredge Gigabit Media Converter SED-1000SSC -20 allows you to transparently connect your Gigabit Copper cabling system (1 Base-T, 1 Base-TX or 1 Base-T) with the fibre optic cabling system (1 Base-FX). This media converter provides a long distance connection between legacy 1 BaseT and 1 BaseTX networks and the 1 Base Gigabit Ethernet networks. The SED-1000SSC-20 incorporates advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fibre Fault Alert & loop back.
This unit can be used as a standalone unit or as a slide in module in a 14 slot Media Converter Chassis.
This unit can be used as a standalone unit or as a slide in module in a 14 slot Media Converter Chassis.
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SC |
| Performance | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 20000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1300 nm |
| Sensitivity A measure of the device's response to slight changes or signals. | -22 dBmW |
| Link budget | 11 dB |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Output voltage | 12 V |
| Power consumption (max) The maximum amount of power used by the device. | 5 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 110 mm |
| Depth The distance from the front to the back of something. | 81 mm |
| Height The measurement of the product from head to foot or from base to top. | 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 150 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Sustainability certificates | Federal Communications Commission (FCC) |
| SKU | 753482 |
| MPN | SED-1000SSC-20 |
| Brand | Serveredge |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.serveredge.com/ |
