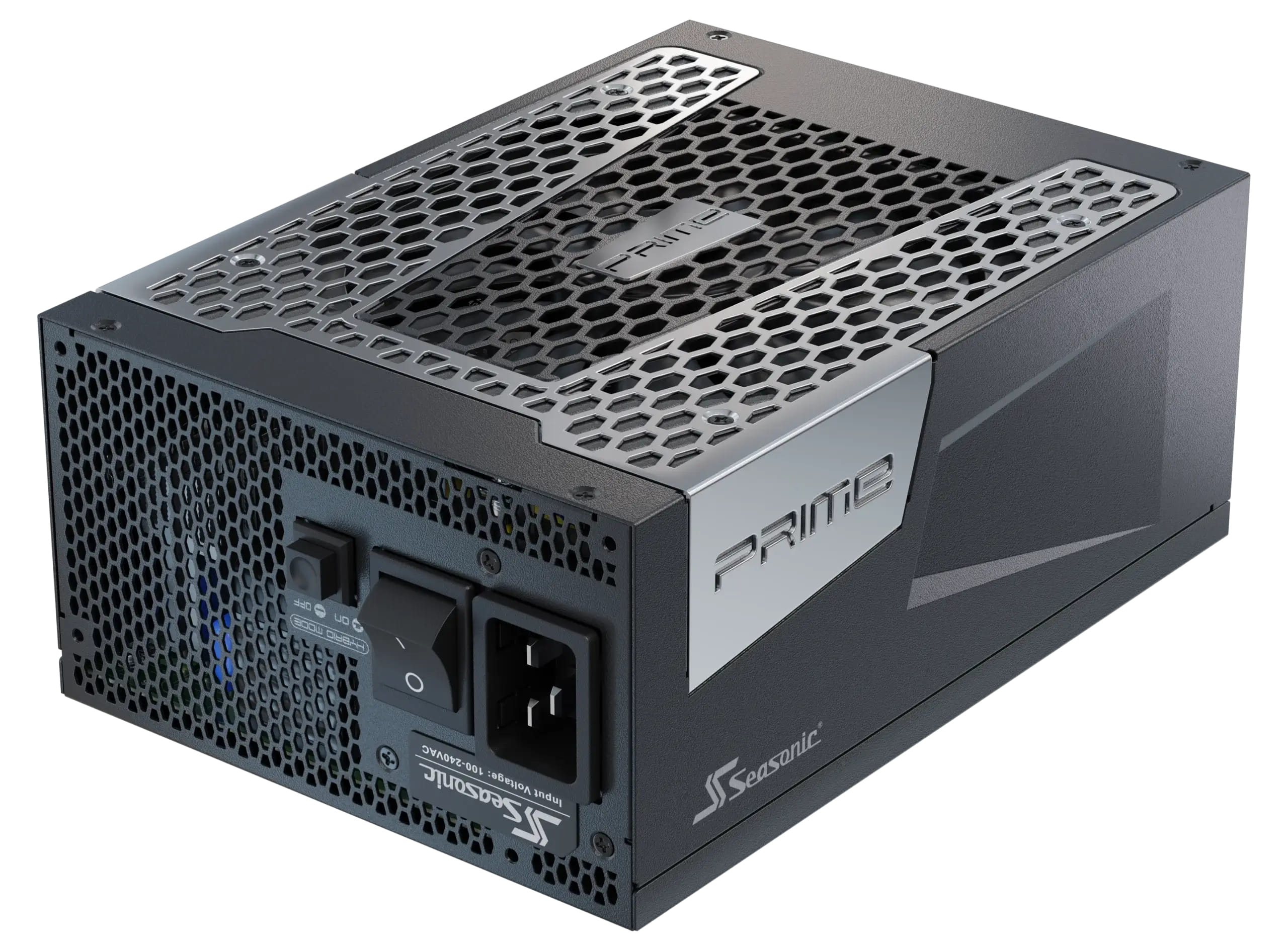

Seasonic Prime TX, 1300 W, 100 - 240 V, 50/60 Hz, 15, 8 A, 125 W, 1300 W
PRIME TX
Power. Performance. PRIME.
Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series.
The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.
Power. Performance. PRIME.
Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series.
The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 1300 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15, 8 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1300 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V2) | 108 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 950,550 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 690 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) |
 |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 100000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Certificates | |
| Compliance certificates | REACH, RoHS, WEEE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 210 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 821745 |
| MPN | SSR-1300TR |
| Brand | Seasonic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 12 Years Warranty |
| Warranty Contact | https://seasonic.com/ |
