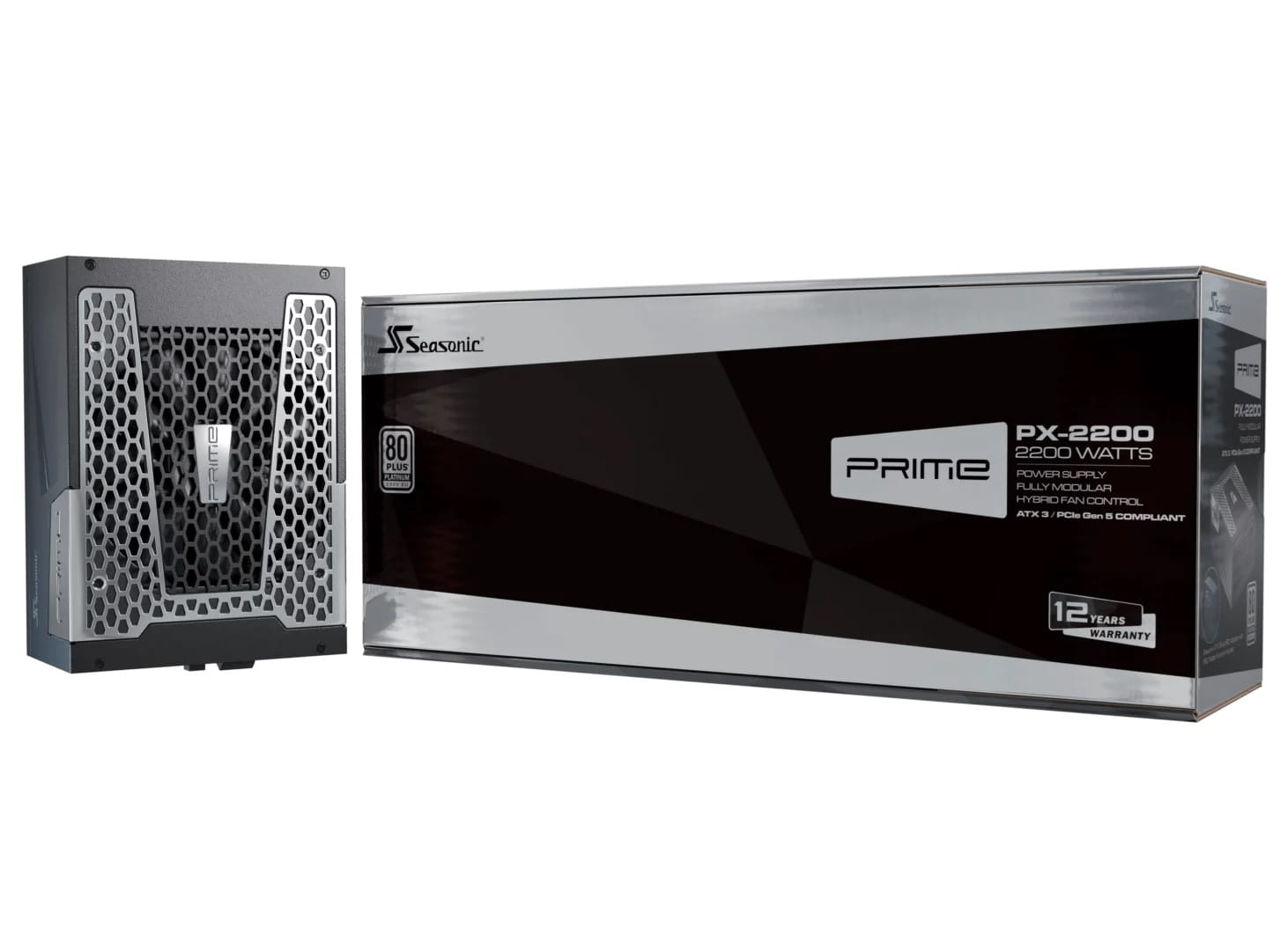

Seasonic Prime PX-2200 2200W Power Supply, 80PLUS Platinum, Fully Modular, Individual Black Cables with Braided Pattern, 135mm FDB Fan, 3x EPS, 4x PCIE, 6x SATA, 3x Molex, ATX 3.1 and PCIe 5.1 Compatible
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 2200 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 115 - 240 V |
| Input current | 15 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 2200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 183.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 10 |
| SATA power cable length | 450,470,550,570,760,860,950 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| Peripheral (Molex) power cable length | 470,690 mm |
| EPS power connector (8-pin) |
 |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 150000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 13.5 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Packaging content | |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included |
|
| Certificates | |
| Compliance certificates | CCC, CE, REACH, RoHS, WEEE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 821736 |
| MPN | SRP-PPX222-A5A22ST |
| Brand | Seasonic |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Warranty Period | 12 Years Warranty |
