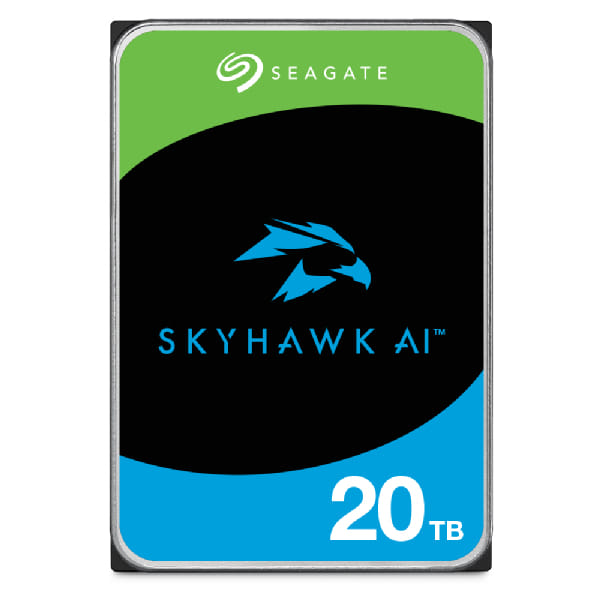

Seagate SkyHawk AI 20 TB, 3.5", 20000 GB
A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.
SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk
24
SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk
24
| Features | |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 20000 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| Type Characteristics of the device. | HDD |
| Component for What this product is used as a part of (component for). | Surveillance system |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 260 MiB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors |
 |
| Number of AI channels | 32 |
| Maximum number of cameras supported The total number of cameras that can be used with the product. | 64 |
| Start/stop cycles | 600000 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7.72 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 1 W |
| Power consumption (idle) | 3.5 W |
| Operating voltage Defines the range of operating voltages available | 5 / 12 V |
| Start-up current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 65 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 147 mm |
| Depth The distance from the front to the back of something. | 26.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 680 g |
| Logistics data | |
| Products per pallet layer | 8 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| SKU | 595196 |
| MPN | ST20000VE002 |
| Brand | Seagate |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 3.5" |
| Storage Size (HDD) | 20TB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.seagate.com/ |
