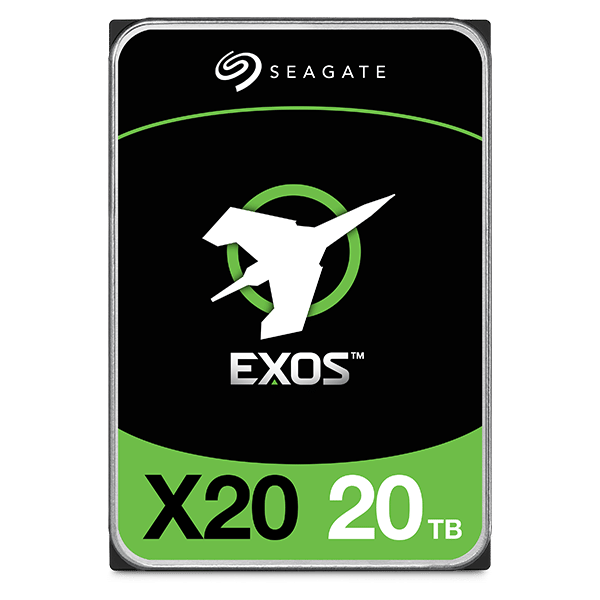

Exos X20 20TB 512E/4kn SATA, 7200RPM, 3.5", 256MB Cache, 5 Years Warranty
Exos X20 20 TB SATA
Delivering maximum storage capacity with the highest rack-space efficiency.
Designed with the highest rack-space efficiency and protected with Seagate Secure Exos X20 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind."
Maximum Storage Capacity for Highest Rack
Space Efficiency
Market-leading 20 TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching, making it the logical choice for cloud data centre and massive scale-out data centre applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimises Watts/TB
Maximise total cost of ownership savings through lower power and weight with helium sealed-drive design
Proven helium side-sealing weld technology for added handling robustness and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security Seagate Secure features for safe, affordable, fast and easy drive retirement
Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating
- Best-Fit Applications
- Scalable hyperscale applications/cloud data centres
- Massive scale-out data centres
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore D2D, virtual tape
- Centralised surveillance
| Name | Value | |
|---|---|---|
| Reliability/Data Integrity | 512e Sector Size (Bytes per Sector) | 512 |
| Cache | 256MB | |
| Capacity | 20TB | |
| Form Factor | 3.5" | |
| Power Consumption | Idle A (W) Average | 5.4 W |
| Interface | SATA | |
| Power Consumption | Max Operating, Random Read/Write 4K/16Q (W) | 9.4, 6.4 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 285/272 | |
| Misc. | ||
| Reliability/Data Integrity | MTBF | 2,500,000 hours |
| Power Consumption | Power Supply Requirements | +12 V and +5 V |
| Reliability/Data Integrity | Power-On Hours per Year (24?7) | 8,760 |
| Product Family | Exos | |
| Random Read/Write 4K QD16 WCD (IOPS) | 168/550 | |
| Reliability/Data Integrity | Reliability Rating @ Full 24?7 Operation (AFR) | 0.35% |
| RPM | 7200RPM | |
| Series | Exos X20 | |
| Environmental | Shock, Non-operating 2 ms (GS) | 200 |
| Environmental | Shock, Operating 2 ms (Read/Write) (Gs) | 40 |
| Environmental | Temperature, Operating | 5 DegC 60 DegC |
| Environmental | Vibration, Non-operating: 2 to 500 Hz (Grms) | 2.27 |
| Warranty | 5 Years | |
| Weight | 670 g |
| Features | |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 20000 GB |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| Type Characteristics of the device. | HDD |
| Component for What this product is used as a part of (component for). | PC |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 272 MiB/s |
| HDD average transfer rate | 285 MB/s |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2500000 h |
| Power | |
| Power consumption (read) | 9.4 W |
| Power consumption (write) | 6.4 W |
| Power consumption (idle) | 5.4 W |
| Operating voltage Defines the range of operating voltages available | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 60 °C |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 2.27 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 40 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 200 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.1 mm |
| Depth The distance from the front to the back of something. | 147 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 670 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| SKU | 574952 |
| MPN | ST20000NM007D |
| Brand | Seagate |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 3.5" |
| Storage Size (HDD) | 20TB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.seagate.com/ |
