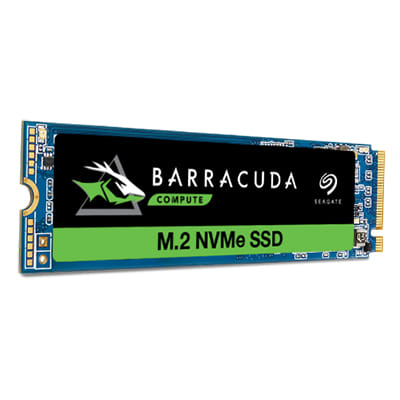

Seagate BarraCuda 510. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 3400 MB/s, Write speed: 2400 MB/s, Component for: PC
Speed Up Your Computer.
Take your data to the next level of performance, reliability, and efficiency with one of our Seagate BarraCuda solid state drives.
BarraCuda solid state drives come in both M.2 2280 form factors, perfect for ultra thin and ultra small laptops, mini PCs, and desktop PCs that need next-level SSD speed for accelerated applications and multitasking.
M.2. NVMe PCIe Gets You There Faster.
Ultrafast Speed
Unleash the performance of PCIe NVMe speeds that are 6x faster than SATA SSD.
Dynamic Versatility
Upgrade ultra-thin laptops as well as mini and desktop PCs with an M.2 SSD.
Solid Reliability
Leverage BarraCuda durability with a 5 year warranty, 1.8M hours MTBF and up to 320 total terabytes written.
Take your data to the next level of performance, reliability, and efficiency with one of our Seagate BarraCuda solid state drives.
BarraCuda solid state drives come in both M.2 2280 form factors, perfect for ultra thin and ultra small laptops, mini PCs, and desktop PCs that need next-level SSD speed for accelerated applications and multitasking.
M.2. NVMe PCIe Gets You There Faster.
Ultrafast Speed
Unleash the performance of PCIe NVMe speeds that are 6x faster than SATA SSD.
Dynamic Versatility
Upgrade ultra-thin laptops as well as mini and desktop PCs with an M.2 SSD.
Solid Reliability
Leverage BarraCuda durability with a 5 year warranty, 1.8M hours MTBF and up to 320 total terabytes written.
| Features | |
| NVMe version | 1.3 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 500 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
 |
| Read speed The speed at which a device can read data. | 3400 MB/s |
| Write speed The speed at which a device can write data. | 2400 MB/s |
| Random read (4KB) | 410000 IOPS |
| Random write (4KB) | 540000 IOPS |
| S.M.A.R.T. support |
|
| TRIM support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1800000 h |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Power | |
| Power consumption (average) | 4.6 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22.1 mm |
| Depth The distance from the front to the back of something. | 80.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 2.23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.7 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 109 mm |
| Package depth The distance from the front to the back of the packaging. | 134.2 mm |
| Package height The distance from the top to the bottom of the packaging. | 24 mm |
| Package weight Weight of the packaged product. | 61 g |
| Logistics data | |
| Master (outer) case width | 27.8 cm |
| Master (outer) case length | 12.9 cm |
| Master (outer) case height | 16.9 cm |
| Master (outer) case net weight | 910 g |
| Quantity per master (outer) case | 10 pc(s) |
| SKU | 369719 |
| MPN | ZP500CM3A001 |
| Brand | Seagate |
| Product Condition | Brand New/Unused |
| Product Use | General |
