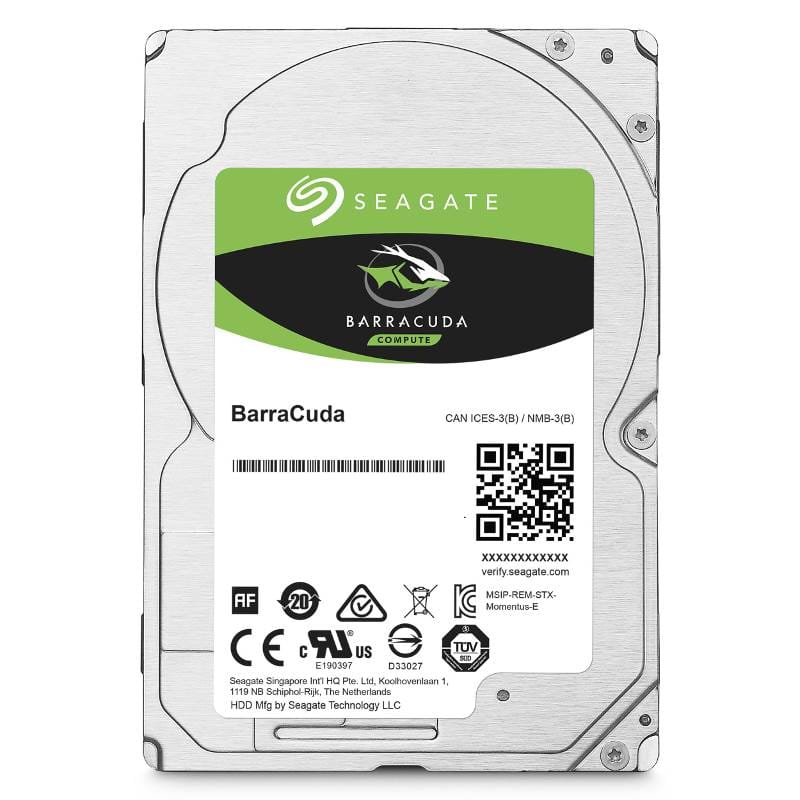

Seagate Barracuda 4TB 2.5" SATA Laptop Hard Drive

Item No:

Seagate Barracuda 4TB 2.5" SATA Laptop Hard Drive

Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-3 business days
Store Availability
  • 3-4 business days at Bankstown
  • 3-4 business days at Blacktown
  • 3-4 business days at Castle Hill
Shipping Estimate
BarraCuda, 4TB, SATA 6Gb/s, 128MB Cache, 5400RPM, 140MB/s, 2.5" Form Factor

Seagate 4TB BarraCuda 2.5" Laptop Hard Drive ST4000LM024

HDD size The amount of data that the hard drive can store. 2.5"
HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. 4000 GB
HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. 5400 RPM
Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. Serial ATA III
Type Characteristics of the device. HDD
Storage drive buffer size 128 MB
HDD number of heads 10
Average seek time 14 ms
Average latency The average duration before a device can start with a job (for example reading a file from a hard disk). 5.6 ms
Bytes per sector 4096
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance.
Power consumption (read) 1.9 W
Power consumption (write) 2.1 W
Power consumption (idle) 1.1 W
Operating voltage Defines the range of operating voltages available 5 V
Start-up current 1.2 A
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Operating vibration Environmental requirements for vibration in operating mode 0.7 G
Non-operating vibration Environmental requirements for vibration in non-operating mode 3.52 G
Operating shock Environmental requirements for optimal protection from impact in operating mode 300 G
Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode 650 G
Weight & dimensions
Width The measurement or extent of something from side to side. 69.8 mm
Height The measurement of the product from head to foot or from base to top. 15 mm
Depth The distance from the front to the back of something. 100.3 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 190 g
Packaging data
Storage drive adapter included An adapter is included for usage with additional storage drived included in the packaging.
More Information
SKU 224728
MPN ST4000LM024
Brand Seagate
Product Condition Brand New/Unused
Drive Form Factor 2.5"
Series Barracuda
Hard Drive Spindle Speed 5400RPM
Transfer Speed 140MB/s
Storage Size (HDD) 4000 GB
Storage Technology SATA 6Gb/s
Cache 128MB
Stock Availability Available for Shipping
Warranty Period 2 Years Warranty
