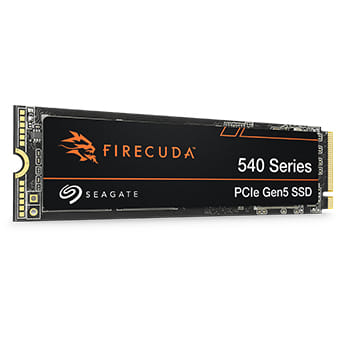

Seagate FireCuda 540, 2 TB, M.2
With speeds up to 10,000 MB/s, this PCIe Gen5 takes no prisoners, toppling Gen4 speeds by 50% and going 17 times faster than SATA SSDs. DirectStorage support brings faster load times to games and applications. Plus, handles upwards of 2000 TB total bytes written, perfect for powering through constant abuse. This SSD isn
| Features | |
| NVMe version | 2.0 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 2 TB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 5.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Random read (4KB) | 1490000 IOPS |
| Random write (4KB) | 1500000 IOPS |
| Sequential read speed (ATTO) | 10000 MB/s |
| Sequential write speed (ATTO) | 10000 MB/s |
| S.M.A.R.T. support |
 |
| TRIM support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1800000 h |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Power | |
| Power consumption (average) | 11 W |
| Average power consumption (read) | 10.5 W |
| Average power consumption (write) | 11.5 W |
| Power consumption (idle) | 0.144 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 93% |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 1.52 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 1500 G |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22.1 mm |
| Depth The distance from the front to the back of something. | 80.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 3.58 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.4 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 109 mm |
| Package depth The distance from the front to the back of the packaging. | 24 mm |
| Package height The distance from the top to the bottom of the packaging. | 155 mm |
| Package weight Weight of the packaged product. | 70 g |
| Logistics data | |
| Master (outer) cases per pallet | 168 pc(s) |
| Layers per pallet | 7 pc(s) |
| Master (outer) case width | 153 mm |
| Master (outer) case length | 292 mm |
| Master (outer) case height | 140 mm |
| Master (outer) case gross weight | 970 g |
| Products per master (outer) case | 10 pc(s) |
| SKU | 734003 |
| MPN | ZP2000GM3A004 |
| Brand | Seagate |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 5 NVMe M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.seagate.com/ |
