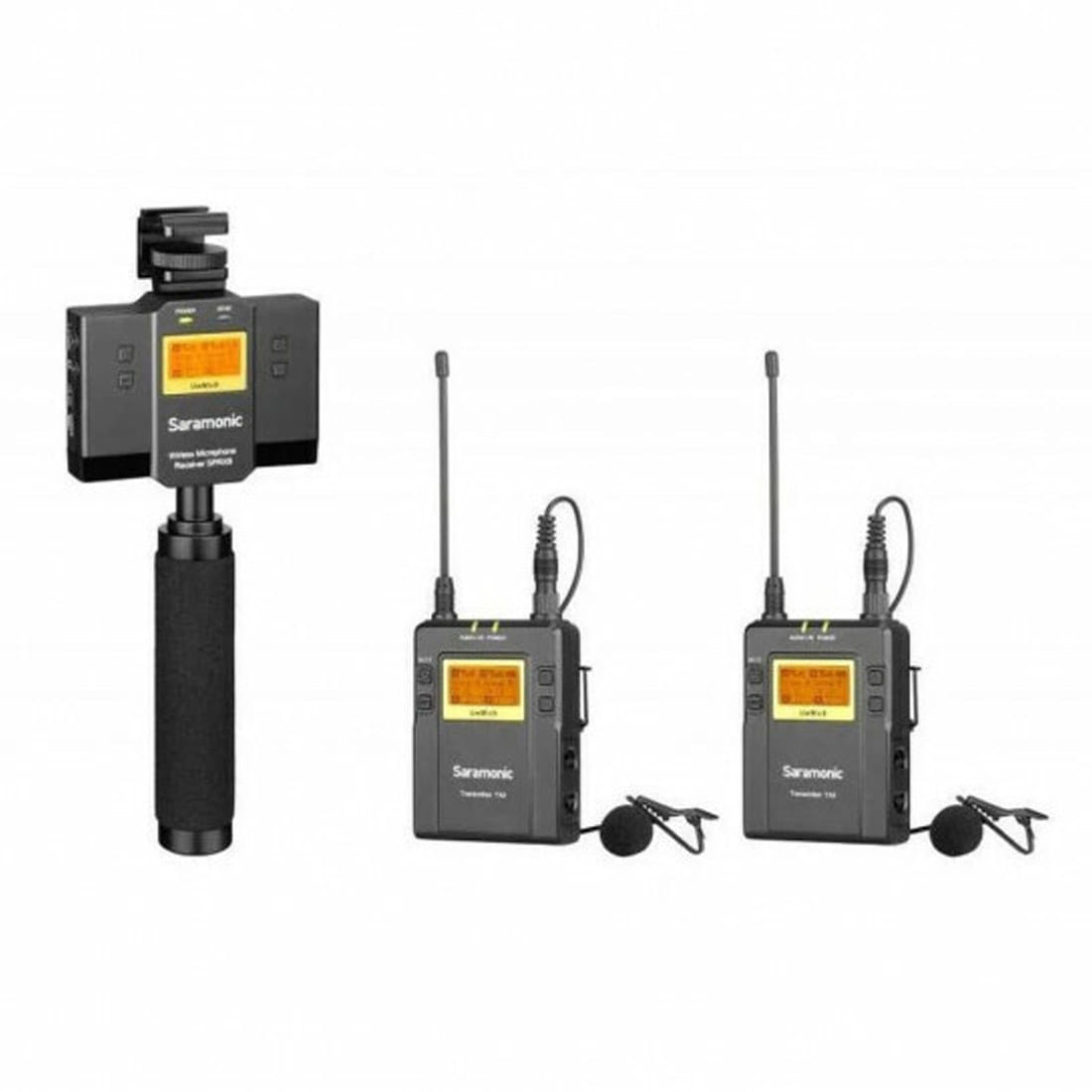

Saramonic Receiver UHF Wireless Microphone Kit UwMic9 TX9+TX9+SP-RX-9
The Saramonic UwMic9 RX9+TX9+TX9 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. UwMic9 RX9+TX9+TX9 could support two transmitters and one receiver working simultaneously. It is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.
- RX9 Bodypack Receiver
- Up to 100 m Operating Range
- Easy-to-Read LCD Display
- Lavalier Microphone
- 96 Selectable Channels
Saramonic Receiver UHF Wireless Microphone Kit UwMic9 TX9+TX9+SP-RX-9
- The Saramonic UwMic9 SP-RX9+TX9+TX9 is a portable, dual-channel, UHF wireless microphone system that was designed to be used with an iPhone or Android smartphones, as well as cameras and other devices. It lets you use two, separate wireless beltpack transmitters with lavalier mics at the same time and includes multiple output cables with Lightning for Apple devices, USB-C for Android, and analog 3.5mm for cameras and other devices. A smartphone holder is built into the receiver, and a removable handgrip stabilises your mobile videos. A shoe mount at the top lets you to attach important accessories, such as video lights and shotgun microphones.
- The included SP-RX9 wireless receiver can also be used as an audio mixer. You can plug two microphones directly into it and connect it to your smartphone or camera of choice. It features two 3.5mm microphone inputs as well as a mini-XLR input. A mini-XLR to XLR cable is included, which lets you connect professional microphones directly to the SP-RX9. It can supply +48 volts of phantom power, which makes it possible to use almost any kind of microphone, such as a professional shotgun.
- The two included beltpack transmitters run on AA batteries, and the receiver is powered by an internal Lithium-ion battery, which can easily be charged via its USB-C port with an included cable. The USB-C port is also compatible with external battery power packs, so you can keep it powered in the field. The included handgrip screws into a 1/4-20 thread at the base of the SP-RX9, and you can use this mounting point to attach the SP-RX9 to a DSLR, mirrorless or video camera. The settings of the SP-RX9 let you put it into "camera" mode, which adjust the output to work perfectly with cameras.
- The power button on the TX9 beltpack transmitters can easily be set to ""locked" to prevent them from accidentally being turned off when in use. If the person wearing the clip-on lavalier microphone needs privacy, a quick push of a button turns on a muting feature, and a flashing red LED reminds you to unmute it afterwards. The system offers an impressive operating range of up to 330 feet (100m), and the included SR-M1 lavalier microphones provide amazing sound quality.
- This SP-RX9+TX9+TX9 is remarkably easy to use. It works right out of the box. You just turn on the power and go. It utilizes the UHF (Ultra High Frequency) spectrum, which helps you avoid interference, and its 863-865MHz range is licence-free in the UK. A built-in automatic-scan feature locates the best available channel for you and the infrared synchronisation makes the process a breeze.
- The easy-to-read backlit LCD display lets you make quick adjustments to the intuitive menus in the brightest or darkest environments. A headphone output is provided, enabling real-time audio monitoring if your camera or smartphone lacks a headphone jack.
- The SP-RX9+TX9+TX9 is perfect for capturing interviews, film dialog, field recording, broadcast TV, news gathering, vlogging, YouTube videos and more. It's built with sturdy metal construction and delivers excellent sound quality in a low-cost package. It's ultra-compact, lightweight, and easy to bring with you everywhere.
- SP-RX9 dual-channel portable UHF wireless receiver with built-in smartphone mount
- TX9 beltpack transmitters x2
- SR-M1 omnidirectional lavalier microphonesx2
- Alligator-style mic clipsx2
- SR-UMBC1 Battery compartmentsx2
- SR-UM10-MC2 Beltclipsx2
- Mini USB to USB-C cable
- USB-A to USB-C cable
- TRRS to TRRS cable
- Micro USB to Lightning cable
- Mini-XLR to XLR cable
- Foam-padded hand grip
- Quick Start Guide
| Microphone | |
| Microphone type The characteristics of the microphone bulit into the device in terms of the reception of signals from all or just one direction, i.e. omnidirectional (better for concerts and the like vs unidirectional, more suitable for voice recording. | Lavalier microphone |
| Microphone connectivity How a microphone connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| Wireless range | 100 m |
| Receiver | |
| Receiver type Describes type of receiver which is a device for picking up an external signal. | Camera mount receiver |
| Receiver display |
 |
| Transmitter | |
| Transmitter type How media reaches the device, e.g. wireless or via USB. | Bodypack transmitter |
| Transmitter display |
|
| Features | |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 514 - 596 MHz |
| Microphone frequency response | 40 - 18000 Hz |
| Operating frequency type | Ultra High Frequency (UHF) |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 96 channels |
| Total Harmonic Distortion (THD) Total harmonic distortion is a measure of non-linear harmonic distortion and is given in %. Non-linear harmonic distortions are signals which were not present in the original before the signal was converted by the headphones. These unwanted signals are caused by the diaphragm, whose movements do not precisely move in time with the electric signals that cause it to move. Unfortunately, this is a feature of all electroacoustic transducers. Although it cannot be completely eliminated, suitable steps can be taken to minimise it. However, the user is not interested in why this distortion takes place but in how great the level of distortion must be for it to become perceptible. According to the findings of several research projects, a total harmonic distortion of 1% in the frequency range of 100 to 2000 Hz is imperceptible. Below 100 Hz, the perceptibility threshold lies at 10%. | 0.5% |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 70 dB |
| Peak deviation | +/- 5 kHz |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 100 x 38.6 x 259.6 mm |
| Receiver weight | 433 g |
| Transmitter dimensions (WxDxH) | 170.9 x 63.5 x 30 mm |
| Transmitter weight | 211.4 g |
| Packaging content | |
| Microphone clip |
|
| Mounting kit |
|
| Carrying case A case in which the product can be carried. |
|
| Cables included | Audio (3.5mm), USB, XLR |
| Smartphone holder |
|
| Number of microphones included The quantity of microphones that come with the product. | 2 |
| Number of receivers included | 1 |
| Number of transmitters included | 2 |
| SKU | 542597 |
| MPN | 6971008020960 |
| Brand | Saramonic |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.saramonic.com/ |
| Stock Availability | Available for Shipping |
