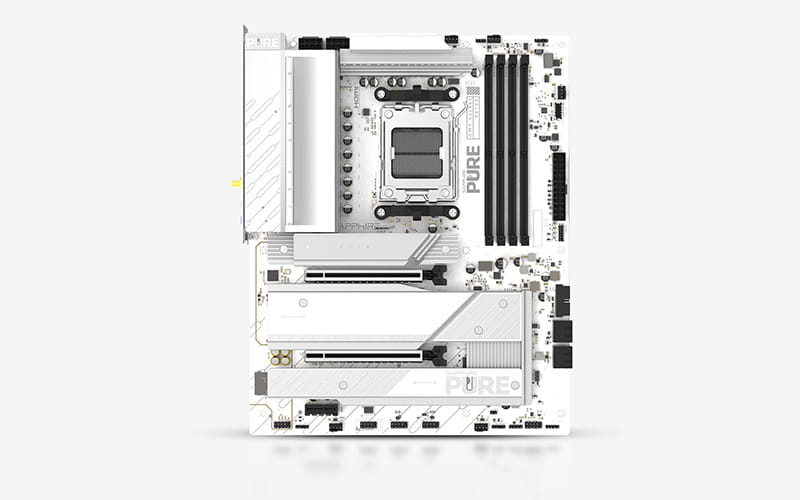

SAPPHIRE PURE X870A WIFI7 motherboard;CPU Socket: AM5 (supports Ryzen 7000, 8000, and 9000 series)4xDDR5 DIMM slots Up to 256 GB total capacity
PURE X870A WIFI 7
- AMD AM5 CPU SUPPORT
- SAPPHIRE CORE BIOS
- 16+2+1 Phase CPU Power, 55A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- Dual Channel, 8400 MHz Memory OC
- WIFI 7 Support
- PCI Express 5.0 x16
- PCIe 5.0 M.2 Support
- Debug LED
| Name | Value |
|---|---|
| Audio | Realtek® ALC897 HD Audio, 7.1 Channel |
| Chipset | AMD® X870 |
| Form Factor | ATX, 305x245mm |
| I/O Connectors | 1 - DisplayPort, 1 - HDMI , 1 - RJ45 LAN, 2 - Wi Fi Antenna, One-click Flash BIOS Button, 2- USB 2.0, 4- USB 3.2 Gen1 Type-A, 1- USB 3.2 Gen2 Type-A, 6- Audio Jacks, 1x USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C |
| Integrated CPU Graphics | DisplayPort x1, HDMI x1 |
| LAN | Realtek® RTL8125BG 2.5 Gigabit Ethernet |
| PCI Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 3.0 x1 in 1x slot |
| Processor Support | Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| RAID | |
| RAM Type/Bus/Max | 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8400 MHz(OC) |
| Socket | AMD Socket AM5 |
| Storage Interface | 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support |
| SKU | 823589 |
| MPN | 52122-02-40G |
| Brand | Sapphire |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.sapphiretech.com/ |
