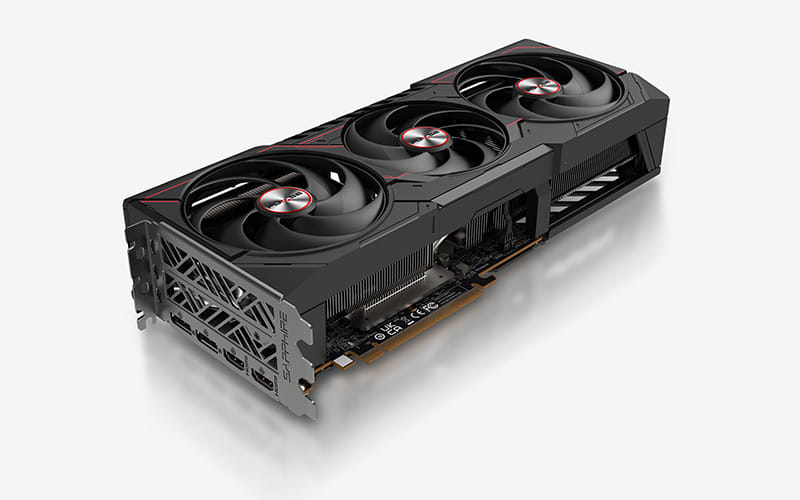

AMD Radeon RX 9070 XT Graphics Card AMD RDNA 4 Architecture; Boost Clock: Up to 2970 MHz Game Clock: Up to 2400 MHz; 16GB/256 bit GDDR6; HDMI: 7680×4320 DisplayPort 2.1a: 7680×4320; 2x HDMI 2x DisplayPort 2.1a; 3 slot, ATX Dimension: 320(L)X 120.25(W)X 61.6 (H)mm
| Processor | |
| CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs. |
 |
| Compute units | 64 |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | AMD |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | Radeon RX 9070 XT |
| Processor boost clock speed | 2970 MHz |
| Processor boost clock speed (Gaming mode) | 2400 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Stream processors | 4096 |
| Maximum displays per videocard | 4 |
| Infinity cache | 64 MB |
| Ray accelerators | 64 |
| AI accelerators | 128 |
| Memory | |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR6 |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 256 bit |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 20 Gbit/s |
| Ports & interfaces | |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPort version | 2.1a |
| Performance | |
| TV tuner integrated Device has an in-built TV tuner. |
|
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12 Ultimate |
| Dual Link DVI A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible. |
|
| AMD FreeSync The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing. |
 |
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Cooling technology | Sapphire Tri-X |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Form factor The shape or design of the product. | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 3 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Minimum system power supply The lowest power that is needed. | 750 W |
| Supplementary power connectors | 2x 8-pin |
| Thermal Design Power (TDP) | 304 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Minimum RAM The lowest RAM (memory) required to run a computer program or operating system. | 8192 MB |
| Weight & dimensions | |
| Length The measurement or extent of something from end to end. | 320 mm |
| Depth The distance from the front to the back of something. | 61.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 120.2 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| SKU | 814732 |
| MPN | 11348-03-20G |
| Brand | Sapphire |
| Product Condition | Brand New/Unused |
| GPU Series | AMD Radeon RX 9070 XT |
| Graphics RAM Size | 16 GB |
| Stock Availability | Available for Shipping |
| Product Use | Gaming |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.sapphiretech.com/ |
