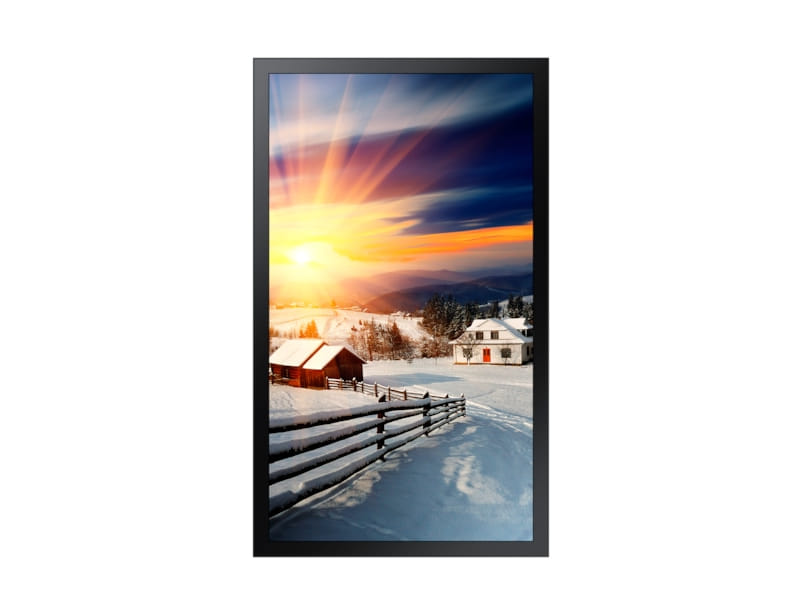

Samsung LH85OHNSLGB, Digital signage flat panel, 2.16 m (85"), LED, 3840 x 2160 pixels
Large displays optimized for DOOH
The OHN series has elevated the typical outdoor advertising experience with its bold and engaging content delivery for any bus stop or street billboard. The OHN series will make any business standout from the crowd with its immersive and high quality images and content.
Unsurpassable visibility day and night
The OHN series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. With a built in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.
Easy to use management software
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display s overall performance, allows for painless content management and ensures seamless transition and playback.
Built strong to endure impacts
The OHN series provides advanced safety through tempered Magic Protection Glass. It features durability that is IK10* rated, further proving its robust level of strength that can endure physical impact.
Resistant to outdoor elements
The OHN series is verified to perform in outdoor settings. IP56* rated protection ensures the OHN series will withstand physical impact as well as dust, humidity or other outdoor elements that could affect the display.
The OHN series has elevated the typical outdoor advertising experience with its bold and engaging content delivery for any bus stop or street billboard. The OHN series will make any business standout from the crowd with its immersive and high quality images and content.
Unsurpassable visibility day and night
The OHN series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. With a built in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.
Easy to use management software
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display s overall performance, allows for painless content management and ensures seamless transition and playback.
Built strong to endure impacts
The OHN series provides advanced safety through tempered Magic Protection Glass. It features durability that is IK10* rated, further proving its robust level of strength that can endure physical impact.
Resistant to outdoor elements
The OHN series is verified to perform in outdoor settings. IP56* rated protection ensures the OHN series will withstand physical impact as well as dust, humidity or other outdoor elements that could affect the display.
| Display | |
| Panel type | VA |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 2.16 m (85") |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 3000 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 3000:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 100000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.4875 x 0.4875 mm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 75 Hz |
| Colour gamut | 72% |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.0 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB ports quantity | 1 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| RS-232 interface |
|
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Orientation | Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Bezel width (bottom) | 6.2 cm |
| Bezel width (side) | 6.2 cm |
| Bezel width (top) | 6.2 cm |
| Performance | |
| Purpose What the product is used for. | Retail |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1800 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (sleep) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Tizen |
| Weight & dimensions | |
| Display width | 2004 mm |
| Display depth | 120 mm |
| Display height | 1185 mm |
| Display weight | 163 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2175 mm |
| Package depth The distance from the front to the back of the packaging. | 495 mm |
| Package height The distance from the top to the bottom of the packaging. | 1383 mm |
| Package weight Weight of the packaged product. | 211 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | FCC (USA) Part 15, Subpart B Class B |
| Technical details | |
| Audio out (mini jack) | 1 |
| SKU | 711347 |
| MPN | LH85OHNSLGB/XY |
| Brand | Samsung |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | Business |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.samsung.com/ |
