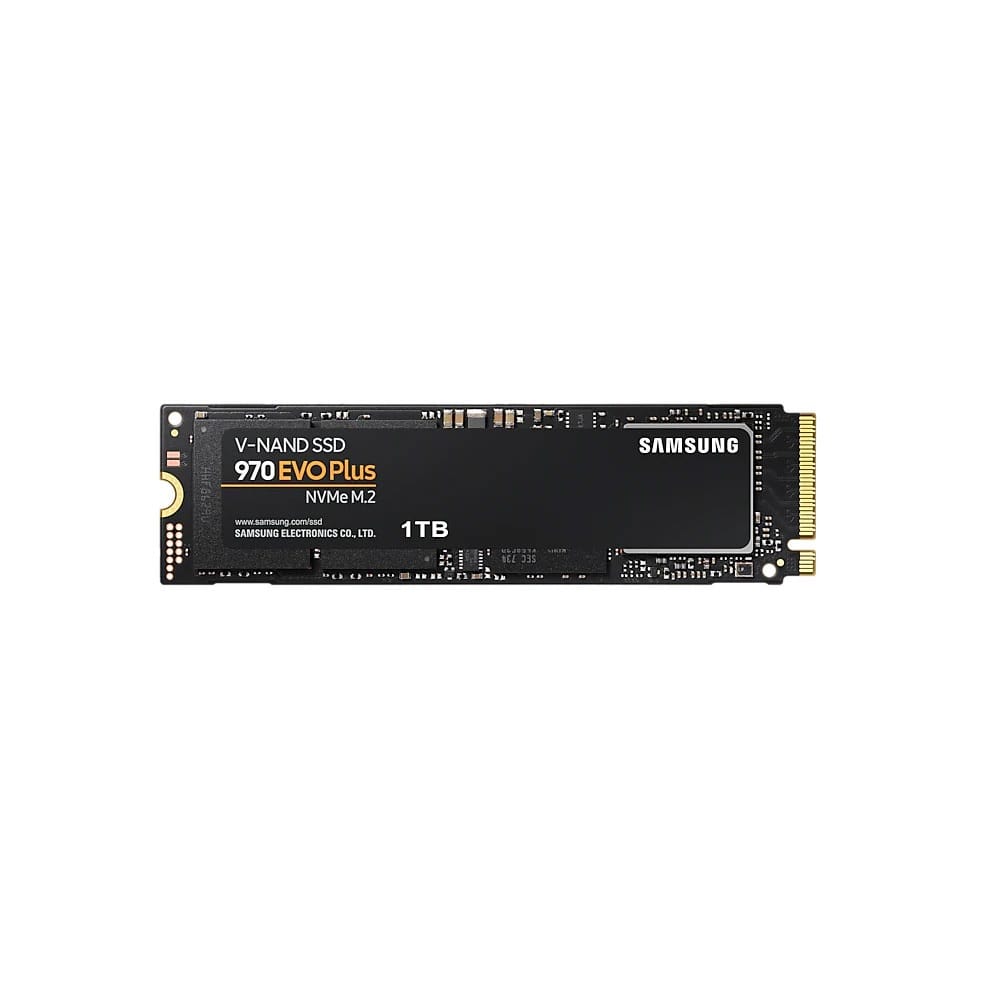

The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by Samsung’s latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for superb computing.
| Features | |
| NVMe version | 1.3 |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 1000 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | V-NAND MLC |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
|
| Read speed The speed at which a device can read data. | 3500 MB/s |
| Write speed The speed at which a device can write data. | 3300 MB/s |
| Random read (4KB) | 600000 IOPS |
| Random write (4KB) | 550000 IOPS |
| Controller type | Samsung Phoenix |
| PCI Express interface data lanes | x4 |
| DevSlp (device sleep) support |
|
| S.M.A.R.T. support |
|
| TRIM support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| Power | |
| Operating voltage Defines the range of operating voltages available | 3.3 V |
| Power consumption (max) The maximum amount of power used by the device. | 9 W |
| Power consumption (average) | 6 W |
| Power consumption (idle) | 0.003 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80.2 mm |
| Depth The distance from the front to the back of something. | 2.38 mm |
| Height The measurement of the product from head to foot or from base to top. | 22.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8 g |
| Packaging data | |
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Magician Software for SSD management |
| Package type The type of product package e.g. box. | Box |
| Other features | |
| Launch date | 1/22/2019 |
| SKU | 318843 |
| MPN | MZ-V7S1T0BW |
| Brand | Samsung |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Connection Interface | PCIe Gen 3 NVMe M.2 |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.samsung.com/ |
