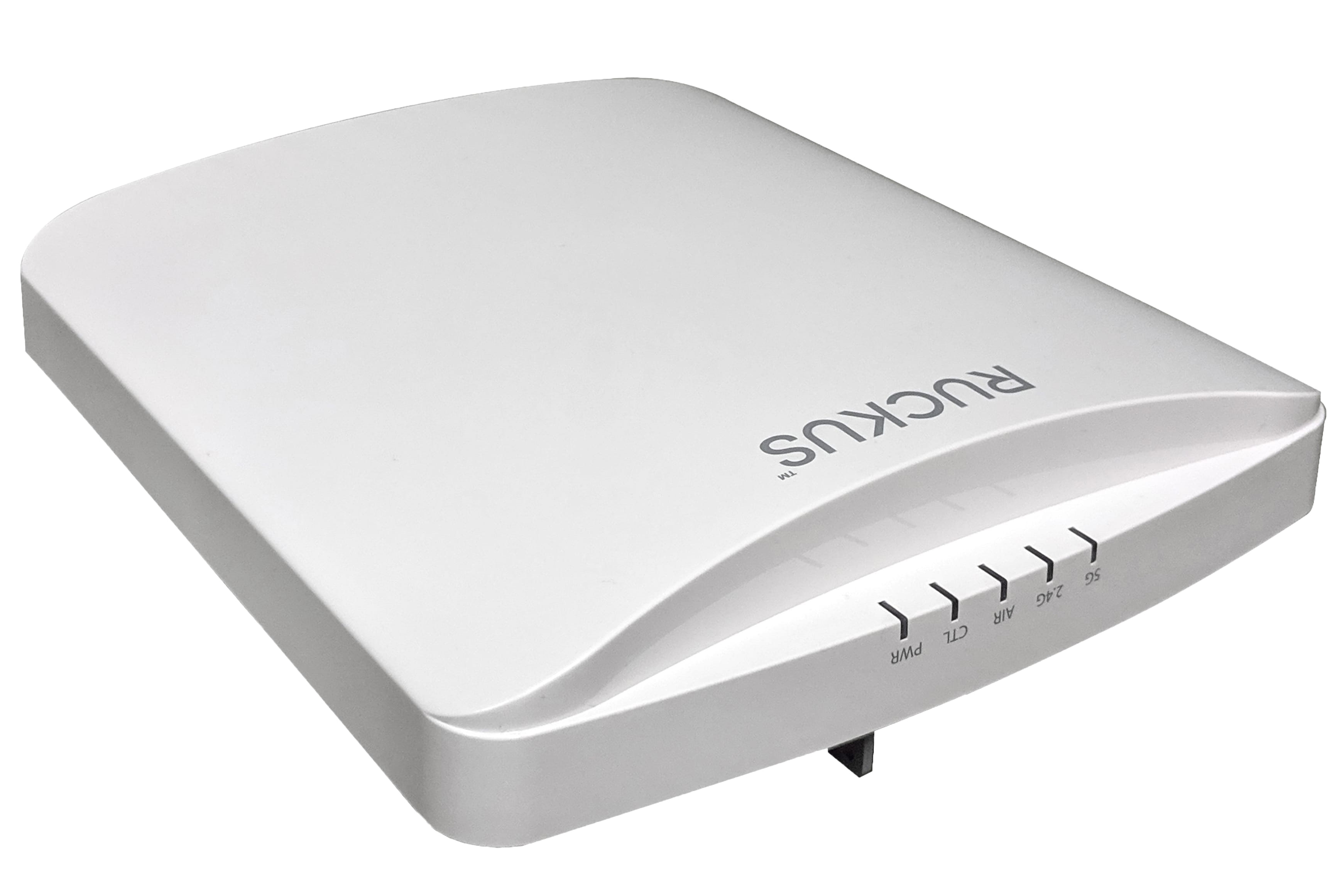

Ruckus Wireless R750, 2400 Mbit/s, 1148 Mbit/s, 2400 Mbit/s, 1000,2500 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE..., 1024 user(s)
The R750 is based on the latest Wi Fi 6 standard and bridges the performance gap from gigabit Wi Fi to multi gigabit Wi Fi in support of the insatiable demand for better and faster Wi Fi. The R750 is the first ever Wi Fi 6 AP to be granted Wi Fi CERTIFIED 6 status by the Wi Fi Alliance. As part of Wi Fi Alliance's testbed, the R750 validates other devices for Wi Fi CERTIFIED 6 interoperability certification.
The R750 makes it easy to deliver reliable, secure, high performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high end dual band, dual concurrent Wi Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi Fi with Bluetooth Low Energy, Zigbee and many other non Wi Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
The R750 makes it easy to deliver reliable, secure, high performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high end dual band, dual concurrent Wi Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi Fi with Bluetooth Low Energy, Zigbee and many other non Wi Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,2500 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of users The number of people that use or can use this product. | 1024 user(s) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth Low Energy (BLE) |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Hotspot 2.0 |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| Virtual LAN features | Port-based VLAN |
| Smart mesh system |
|
| Quality of Service (QoS) support |
|
| BeamForming |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA-PSK, WPA-TKIP, WPA2-AES, WPA3 |
| Number of SSID supported | 31 |
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Access Control List (ACL) |
|
| Protocols | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 22.34 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
|
| Certification | EN 60950-1 Safety · EN 60601-1-2 Medical · EN 61000-4-2/3/5 Immunity · EN 50121-1 Railway EMC · EN 50121-4 Railway Immunity · IEC 61373 Railway Shock & (bbr-ࢢon · UL 2043 Plenum · EN 62311 Human Safety/RF Exposure · WEEE & RoHS · ISTA 2A $r-nsror|-ࢢon |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 3 dBi |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 206 mm |
| Depth The distance from the front to the back of something. | 235 mm |
| Height The measurement of the product from head to foot or from base to top. | 62 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.01 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| SKU | 731885 |
| MPN | 9U1-R750-WW00 |
| Brand | Ruckus |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ruckussecurity.com.au/ |
