RUCKUS Networks R670, 2.4 GHz, 5 GHz, 9340 Mbit/s, Dynamic PSK, OWE, WPA-PSK, WPA-TKIP, WPA2-AES, WPA3, 1000,2500 Mbit/s

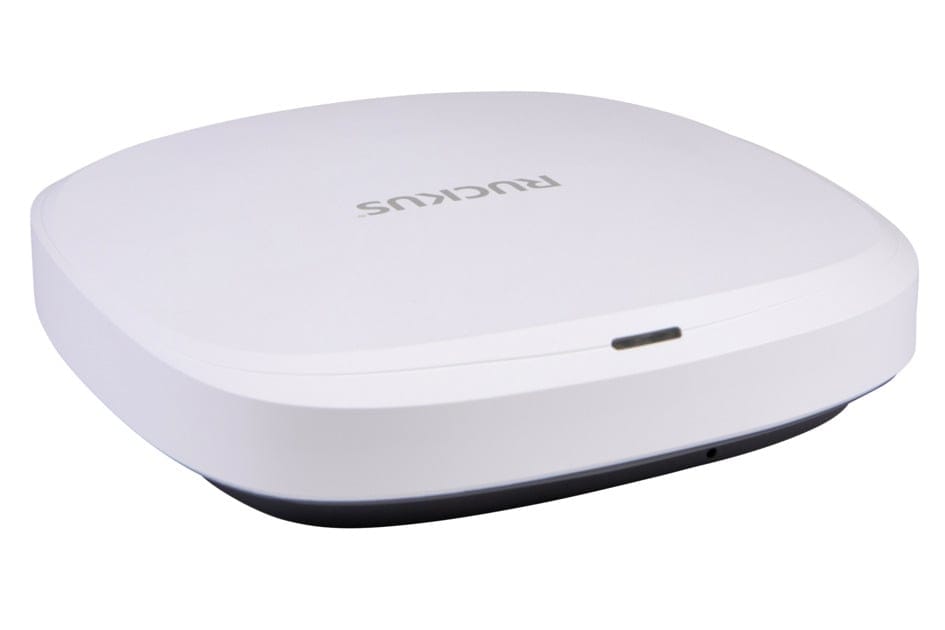

RUCKUS R670 Indoor Access Point Features
The R670 expands the reach of Wi-Fi 7 and addresses the needs of every day deployments, in guest rooms, classrooms, hotel rooms and lobby. It supports data intensive streaming like 4K/8K video transmissions, while latency voice and data with stringent quality-of-service requirements.
The RUCKUS R670 is a high-performance Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps.
Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul for full use of available Wi-Fi capacity. Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.
The R670 expands the reach of Wi-Fi 7 and addresses the needs of every day deployments, in guest rooms, classrooms, hotel rooms and lobby. It supports data intensive streaming like 4K/8K video transmissions, while latency voice and data with stringent quality-of-service requirements.
The RUCKUS R670 is a high-performance Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps.
Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul for full use of available Wi-Fi capacity. Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 9340 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 689 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5765 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5765 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,2500 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Number of users The number of people that use or can use this product. | 768 user(s) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth Low Energy (BLE) |
|
| Tunnel forwarding |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Hotspot 2.0 |
| Virtual LAN features | Port-based VLAN |
| Maximum Tx power (2.4 GHz) | -97 dBmW |
| Maximum Tx power (5 GHz) | -100 dBmW |
| Maximum Tx power (6 GHz) | -96 dBmW |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | Dynamic PSK, OWE, WPA-PSK, WPA-TKIP, WPA2-AES, WPA3 |
| Number of SSID supported | 31 |
| Wireless Intrusion Detection System (WIDS) |
|
| Wireless Intrusion Prevention System (WIPS) |
|
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Protocols | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 35 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Desk, Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Reset button |
|
| LED indicators |
|
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 3 dBi |
| Certificates | |
| Certification | EN 60950-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & (bbr-ࢢon, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS, ISTA 2A $r-nsror|-ࢢon |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 220 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 49 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.02 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| SKU | 837752 |
| MPN | 9U1-R670-WW00 |
| Brand | Ruckus |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ruckussecurity.com.au/ |
