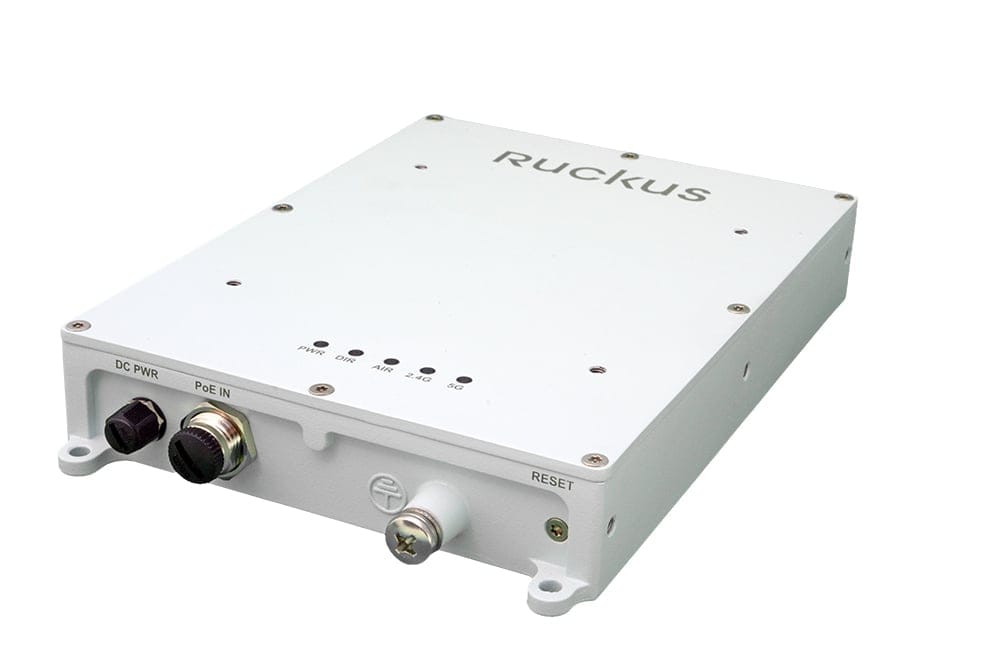

RUCKUS Networks E510, 2.4 GHz, 5 GHz, 867 Mbit/s, WPA-PSK, WPA-TKIP, WPA2-AES, 10,100,1000 Mbit/s
Embedded 802.11ac Outdoor Wave 2 Wi-Fi AP with External BeamFlex+ Antennas
At stadiums, transit hubs, and other crowded outdoor public venues, users want the same fast, reliable Wi-Fi connectivity they expect in their homes or offices. However, designing an optimal wireless network without interfering with the aesthetics of the environment is a challenge in an outdoor environment.
The Ruckus E510 802.11ac Wave 2 access point (AP) is designed with a unique, diminutive two element enclosure which separates the RF components from the antenna module.
The E510 can be placed unobtrusively inside metal-shielded signage at a bus or train stations, and within a vending machine and display kiosk. The low profile antenna module can be located externally and linked to the RF module via weather proof cabling.
Deployment Flexibility
Separation of the antenna from the small radio component provides deployment flexibility that supports location constraints and aesthetic requirements.
Great Outdoor Wi-Fi
Deploy high-performance outdoor 802.11ac Wave 2 Wi-Fi in harshest of the outdoor environments with IP-67 weather proofing.
Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex+™ adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.
Multiple Management Options
Manage the E510 with physical or virtual appliances.
Automate Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
Serve More Devices
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.
More Than Wi-Fi
Support services beyond Wi-Fi with the Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
At stadiums, transit hubs, and other crowded outdoor public venues, users want the same fast, reliable Wi-Fi connectivity they expect in their homes or offices. However, designing an optimal wireless network without interfering with the aesthetics of the environment is a challenge in an outdoor environment.
The Ruckus E510 802.11ac Wave 2 access point (AP) is designed with a unique, diminutive two element enclosure which separates the RF components from the antenna module.
The E510 can be placed unobtrusively inside metal-shielded signage at a bus or train stations, and within a vending machine and display kiosk. The low profile antenna module can be located externally and linked to the RF module via weather proof cabling.
Deployment Flexibility
Separation of the antenna from the small radio component provides deployment flexibility that supports location constraints and aesthetic requirements.
Great Outdoor Wi-Fi
Deploy high-performance outdoor 802.11ac Wave 2 Wi-Fi in harshest of the outdoor environments with IP-67 weather proofing.
Stunning Wi-Fi Performance
Extends coverage with patented BeamFlex+™ adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.
Multiple Management Options
Manage the E510 with physical or virtual appliances.
Automate Optimal Throughput
ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
Serve More Devices
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.
More Than Wi-Fi
Support services beyond Wi-Fi with the Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Number of users The number of people that use or can use this product. | 512 user(s) |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 165 channels |
| Channel bandwidth | 80 MHz |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Fit AP mode features | Hotspot 2.0 |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Rate limiting |
|
| Quality of Service (QoS) support |
|
| Transmitting power | 22 dBmW |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA-PSK, WPA-TKIP, WPA2-AES |
| Number of SSID supported | 31 |
| Wireless Intrusion Detection System (WIDS) |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (max) The maximum amount of power used by the device. | 13.88 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| LED indicators |
|
| Internal The product is built in. |
 |
| Antenna | |
| Antenna features | Integrated antenna |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 3 dBi |
| Certificates | |
| Certification | WEEE, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 142 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Height The measurement of the product from head to foot or from base to top. | 33 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 70 °C |
| SKU | 835128 |
| MPN | 901-E510-WW01 |
| Brand | Ruckus |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ruckussecurity.com.au/ |
