Ruckus 48-Port POE 370W 4X25G SFP28 Ethernet Switch
Item No:
835183
MPN:
ICX8200-48P
$11,617.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate

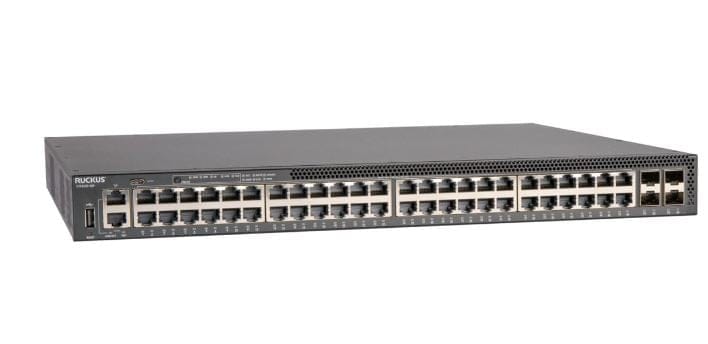

RUCKUS Networks ICX8200-48P, Managed, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality
at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack.
In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and pay as you grow" scalability of stackable solution.
at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack.
In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and pay as you grow" scalability of stackable solution.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Console port | USB |
| SFP28 ports quantity | 4 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Spanning tree protocol |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 296 Gbit/s |
| Forwarding rate | 220 Mpps |
| Security | |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Loop protection |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Performance | |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 41 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1297288 h |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC/PoE |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 525 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation The heat generated by the power supply. | 276 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 370 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.57 kg |
| SKU | 835183 |
| MPN | ICX8200-48P |
| Brand | Ruckus |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ruckussecurity.com.au/ |
