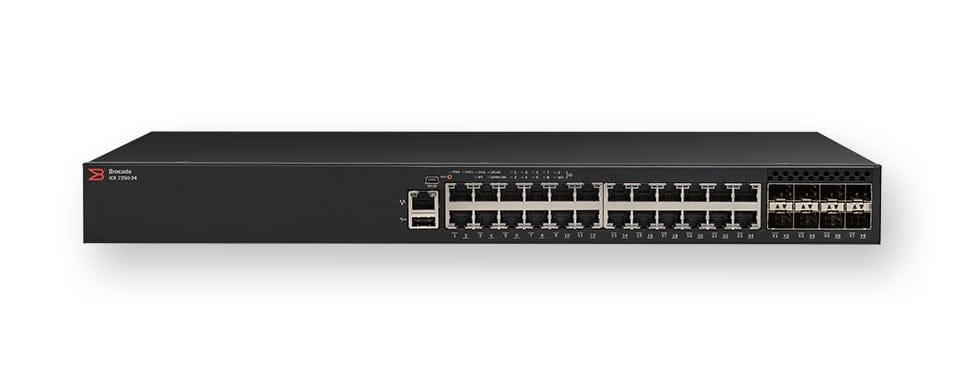

Brocade ICX 7250-24, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Future-proof switching at entry-level price
Meet tomorrow's needs today-even if you don't know what those needs will be. Use the same standard ports for uplink or stacking, phase in SDN, and expand one switch stack to multiple locations. You can even add more advanced ICX family features with HyperEdge. And only Brocade lets you manage switches across network layers from a single touchpoint.
Enterprise-level capabilities
- Full Layer 3 support on delivery; Advanced Layer 3 capabilities through the Switch Port Extender
- Manageable via open standards
- Market-leading stackability with up to 12 switches per stack, and up to 80 Gbps of stacking bandwidth
- Manageable via standard CLI and BNA enterprise management tool
- Future proof with OpenFlow support for network programmability
Meet tomorrow's needs today-even if you don't know what those needs will be. Use the same standard ports for uplink or stacking, phase in SDN, and expand one switch stack to multiple locations. You can even add more advanced ICX family features with HyperEdge. And only Brocade lets you manage switches across network layers from a single touchpoint.
Enterprise-level capabilities
- Full Layer 3 support on delivery; Advanced Layer 3 capabilities through the Switch Port Extender
- Manageable via open standards
- Market-leading stackability with up to 12 switches per stack, and up to 80 Gbps of stacking bandwidth
- Manageable via standard CLI and BNA enterprise management tool
- Future proof with OpenFlow support for network programmability
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| ARP inspection |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 8 |
| Console port | USB |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Rate limiting |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Spanning tree protocol |
|
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Number of VLANs | 4096 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 208 Gbit/s |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Latency (1 Gbps) | 1.5 µs |
| Number of trunks | 16 |
| Number of queues | 8 |
| Jumbo frames support |
|
| Jumbo frames | 9216 |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, AES, EAP, HTTPS, SSH, SSH-2 |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Loop protection |
|
| BPDU filtering/protection |
|
| Authentication | MAC-based authentication, Port-based authentication |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, TFTP, TELNET, Bootp, HTTPS, sFlow, SNTP |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4 / IPv6 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| DIN rail mounting |
|
| Performance | |
| Physical stacking (units) | 12 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 41.9 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 676362 h |
| Power | |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Number of power supply units | 1 |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 42.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
| Heat dissipation The heat generated by the power supply. | 145.3 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 280 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.76 kg |
| Certificates | |
| Certification | FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003; AS/NZS 55022; EN 61000-3-2; EN 61000-3-3; EN 61000-6-3 |
| SKU | 835172 |
| MPN | ICX7250-24 |
| Brand | Ruckus |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ruckussecurity.com.au/ |
